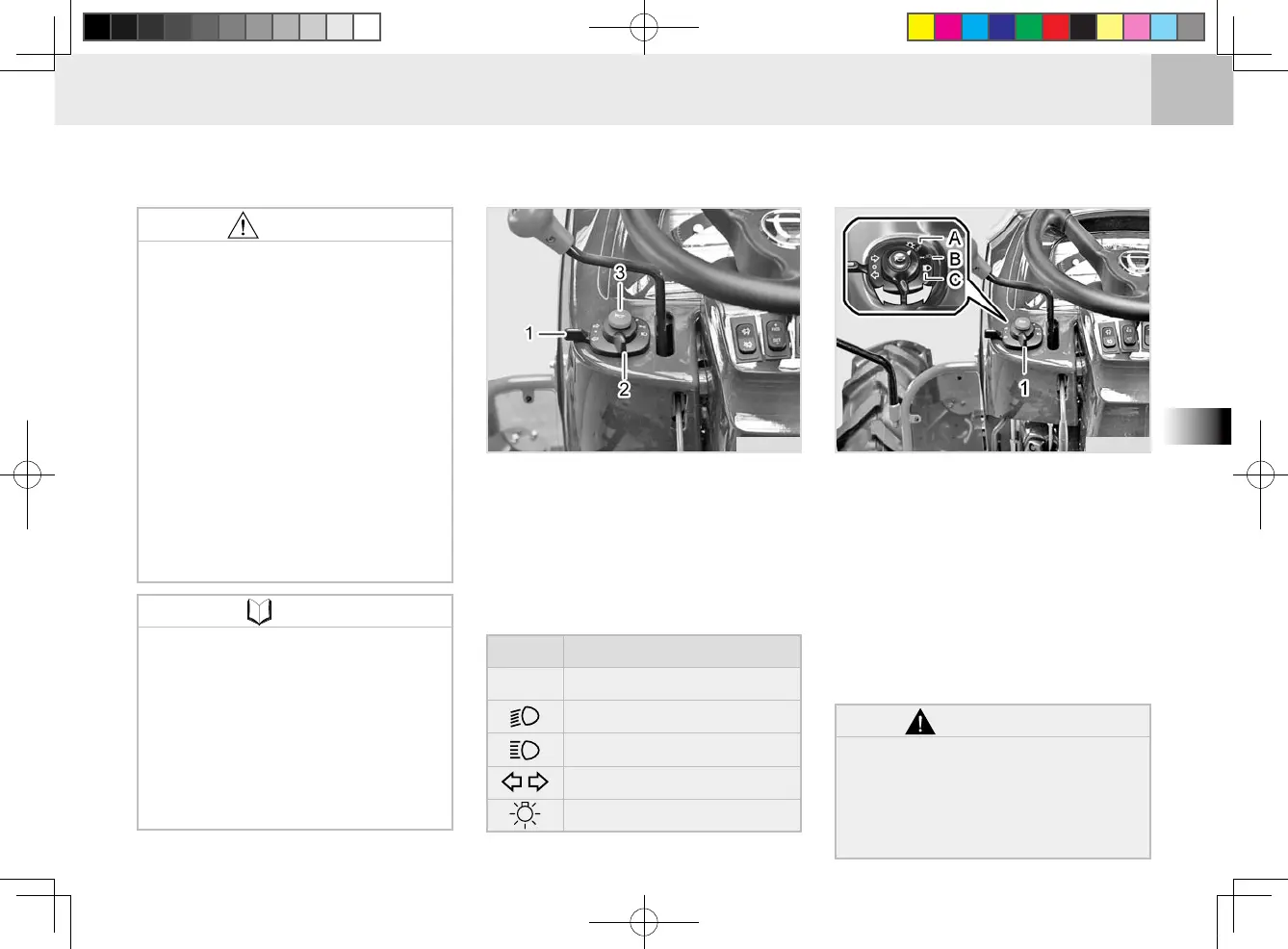

COMBINATION SWITCH
The combination switch consists of
the head light, turn signal light, and
horn switches. Its function by its po-
sition is as follows:
(1) Turn Signal Lamp Switch
(2) Head Light Switch (3) Horn Switch
Switches
Functions
OFF Head light and tail light OFF
Low beam and tail light ON
High beam and tail light ON
Turn signal lamp ON
Head light OFF and tail light ON
(1) Head Light Switch
(A) OFF (B) Low Beam ON
(C) High Beam ON
HEAD LIGHT SWITCH
The head light switch can be ope
-
rated only while the key switch is in
“ON ” position. Turning the head light
switch clockwise one click will illumi-
nate the low beam head lights while
turning it one more click will illumina-
te the high beam head lights.
CAUTION
Stop the engine immediately if
the oil pressure warning lamp
does not go off after the engi-
ne is started. The engine may
be severely damaged.
If the battery charge warning
lamp does not go off after the
engine is started, check the
electrical systems, such as
the alternator, for damage.
Continuing to use the engine
under this condition can di-
scharge the battery or damage
other electrical devices.
•
•
NOTE
The ignition key is not directional
and can be inserted in any direc-
tion. Also, be careful not to leave
the tractor unattended with the
key in the tractor.
The horn, turn signal lamp and
hazard lamp can be operated
without the key inserted.
•
•
WARNING
Driving with high beam head
light disturbs the approaching
vehicle’s visibility for safe dri-
ving. Use the high beam head
lights only if necessary.
•
