(1) Safety Chain
H11O104A
td2O530A H11O682A

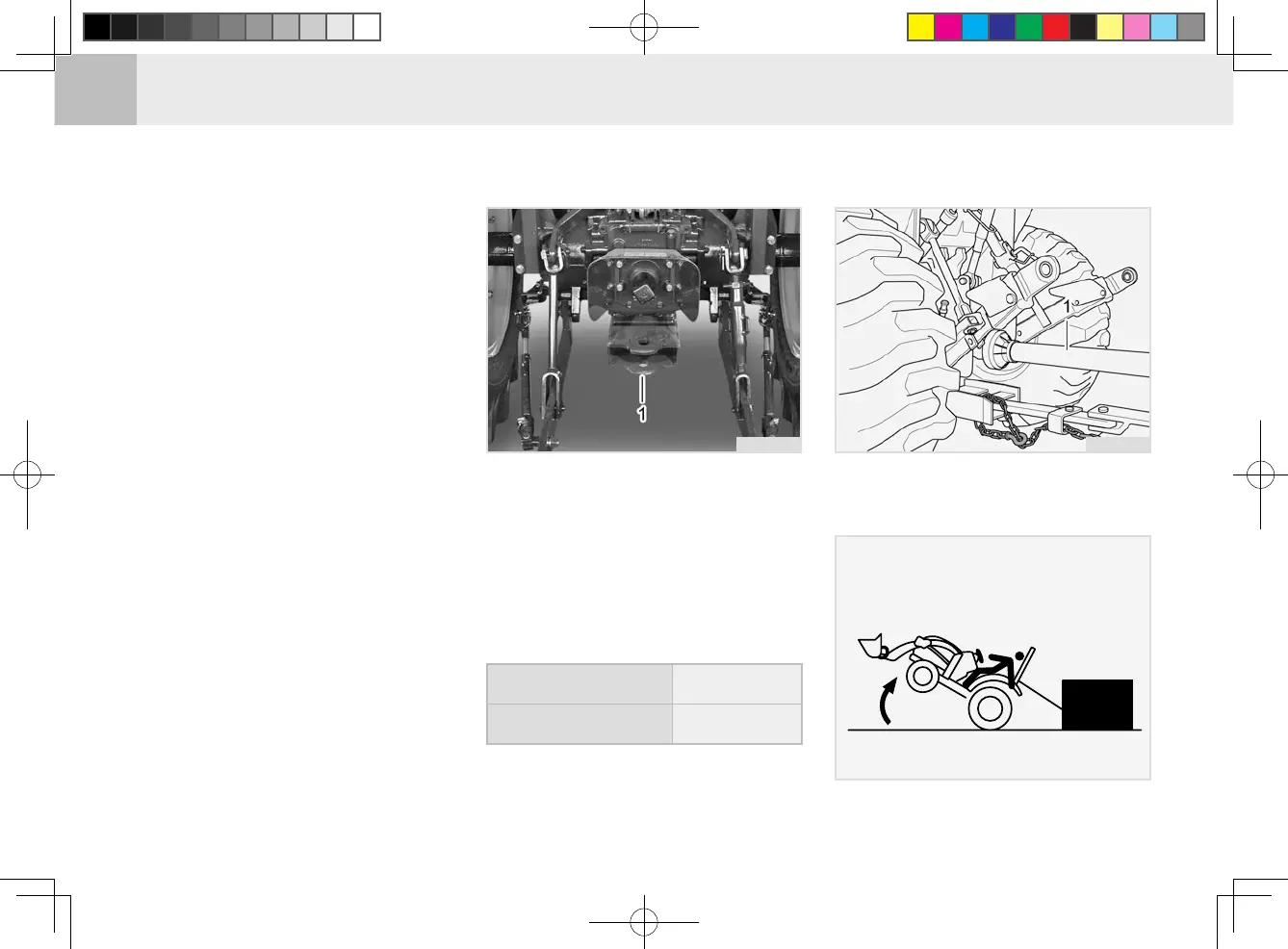

HITCH (OPTIONAL) AND TRAILER
The draw bar is used to pull an im-
plement, such as a trailer.
Make sure to check the max. towing
weight of the trailer and max. vertical
load that can be applied to the draw bar.
(1) Draw Bar
Max. trailer weight
(Trailer + Loaded weight)
9,480 lbs. (4,300 kg)
Vertical load
on the draw bar
1,653 lbs. (750 kg)
DISMOUNTING THE IMPLEMENT
1. Park the tractor with the implement
on the level ground and lower the
implement all the way down. Install
the implement support as needed.
2. Disconnect the top link and lower
links from the implement by remo-
ving the pins.
3.
Be sure to insert the set pins, lynch
pins and snap pins back to the im-
plement securely to keep those safe.
4. Stop the engine and move the re-
mote hydraulic control lever back
and forth to release the hydraulic
pressure in the system before di-
sconnecting hydraulic couplers.
5. Put the top link back to its hook.
Hold both lower links together with
a rubber band. Otherwise, the
lower links can contact with rear
tires and cause damage to the
lower links and tires while driving.
To Next Page
