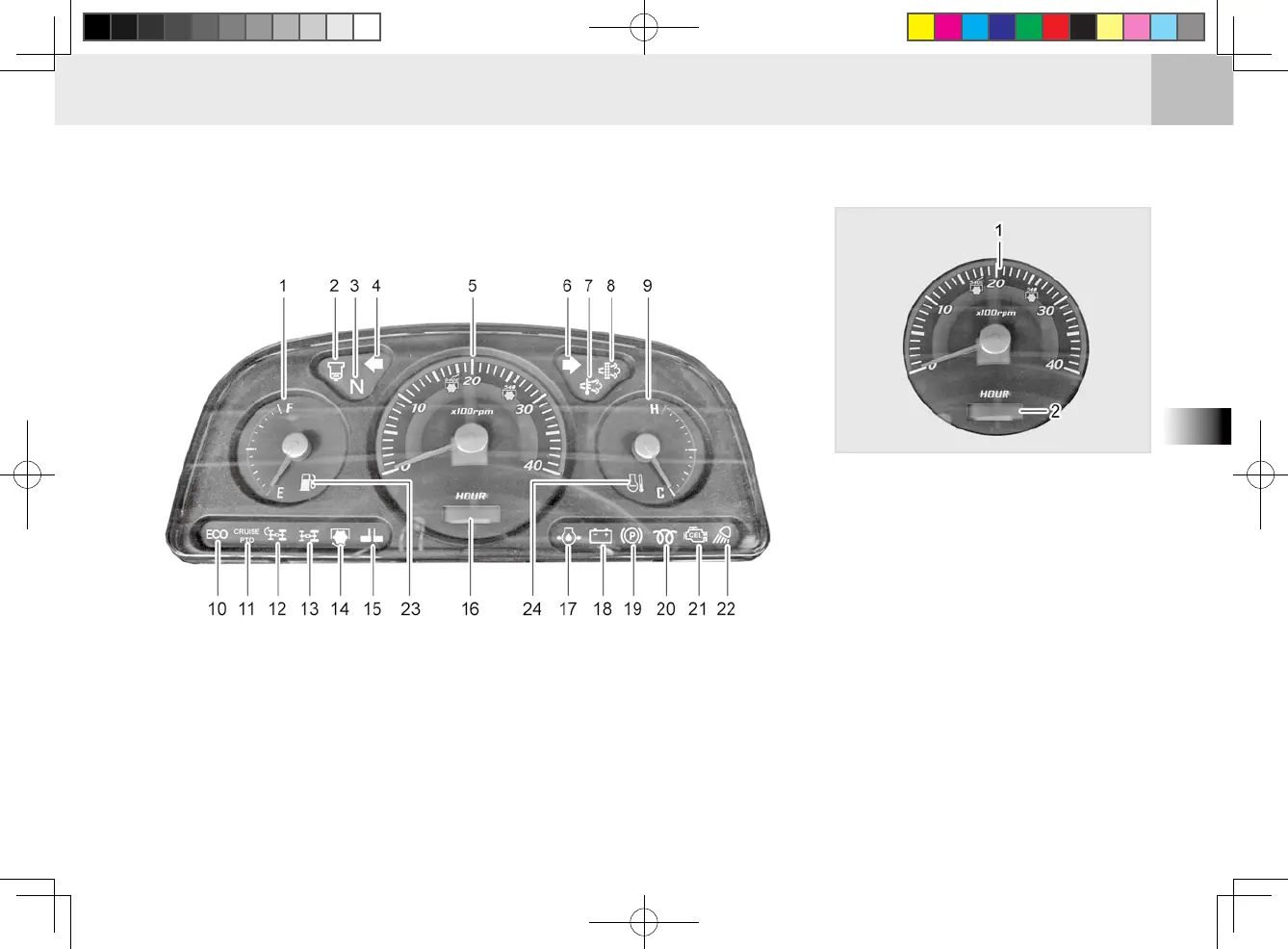

(1) Fuel Gauge
(2) Water-in-fuel Warning Lamp
(3) Neutral Indicator
(4) Turn Signal Lamp (LH)
(5) Tachometer
(6) Turn Signal Lamp (RH)
(7)
DPF Regeneration Warning Lamp
(8) DPF Regeneration Process
Indicator
(9) Coolant Temperature Gauge
(10) ECO PTO Operation Lamp
(If applicable)
(11) Cruise PTO Warning Lamp
(12) Quick-turn Indicator
(If applicable)
(13) 4WD Indicator
(14) PTO Indicator
(15) Single Brake Light
(16) Hourmeter
(17)
Engine Oil Pressure War-
ning Lamp
(18) Low Battery Charge
Warning Lamp
(19)
Parking Brake Indicator
(20) Glow Plug Indicator
(21) Engine Check Lamp
(22) High Beam Indicator
(23)
Lack Of Engine Warning
Light
(24) Coolant Temperature
Warning Light
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER FEATURES
Symbols on the instrument panel come on when the key switch is turned to
the “ON” position.
TACHOMETER/HOURMETER
(1) Tachometer (2) Hourmeter
td2O416A
The tachometer indicates the engine rpm.
The hour meter indicates the total
run hours of the tractor in 6 digits.
The last digit represents 1 hour.
The hourmeter does not operate if
the engine is stopped even if the key
switch is in the "ON" position.
