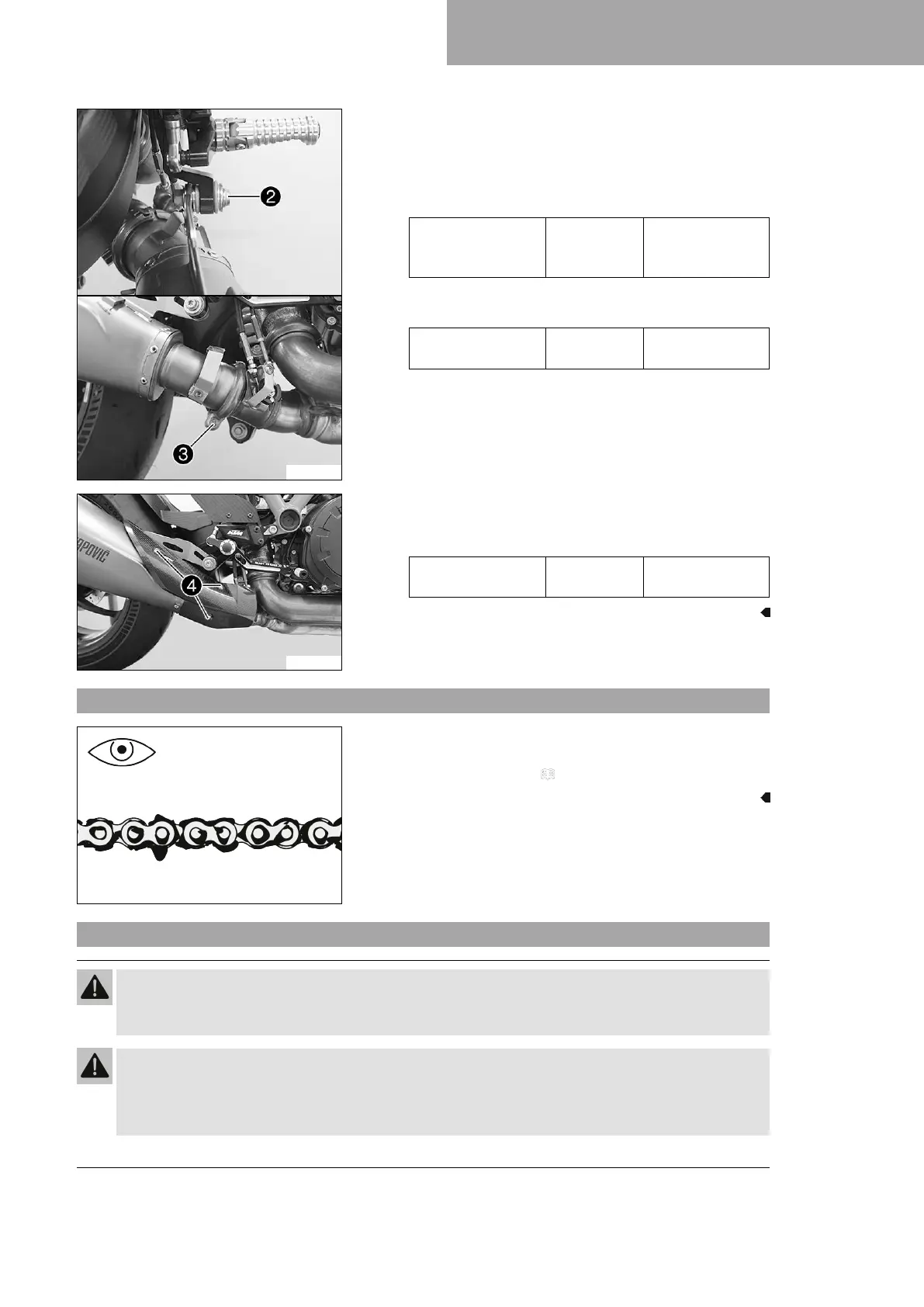

SERVICE WORK ON THE CHASSIS 13
109
S04798-11
– Position the main silencer.
–
Mount screw
2
with washer, but do not tighten yet.
– Position the exhaust clamp.
–
Mount and tighten screw
3
.
Guideline
Screw, exhaust
clamp on main
silencer
M6 10 Nm (7.4 lbf ft)
–
Tighten screw
2
.
Guideline
Remaining screws,
chassis
M8 25 Nm
(18.4 lbf ft)
S04797-11
– Position the heat protector.
–
Mount and tighten screws
4
.
Guideline
Screw, heat protec-
tor on main silencer
M5 4 Nm (3 lbf ft)
13.16 Checking the chain for dirt
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 109)
13.17 Cleaning the chain
Warning
Danger of accidents Lubricants on the tires reduces the road grip.
– Remove lubricants from the tires using a suitable cleaning agent.
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
