KTM 1290 SUPER DUKE R 2021 User Manual

ERGONOMICS 8
67
S04775-10
(SUPER DUKE RR)
–

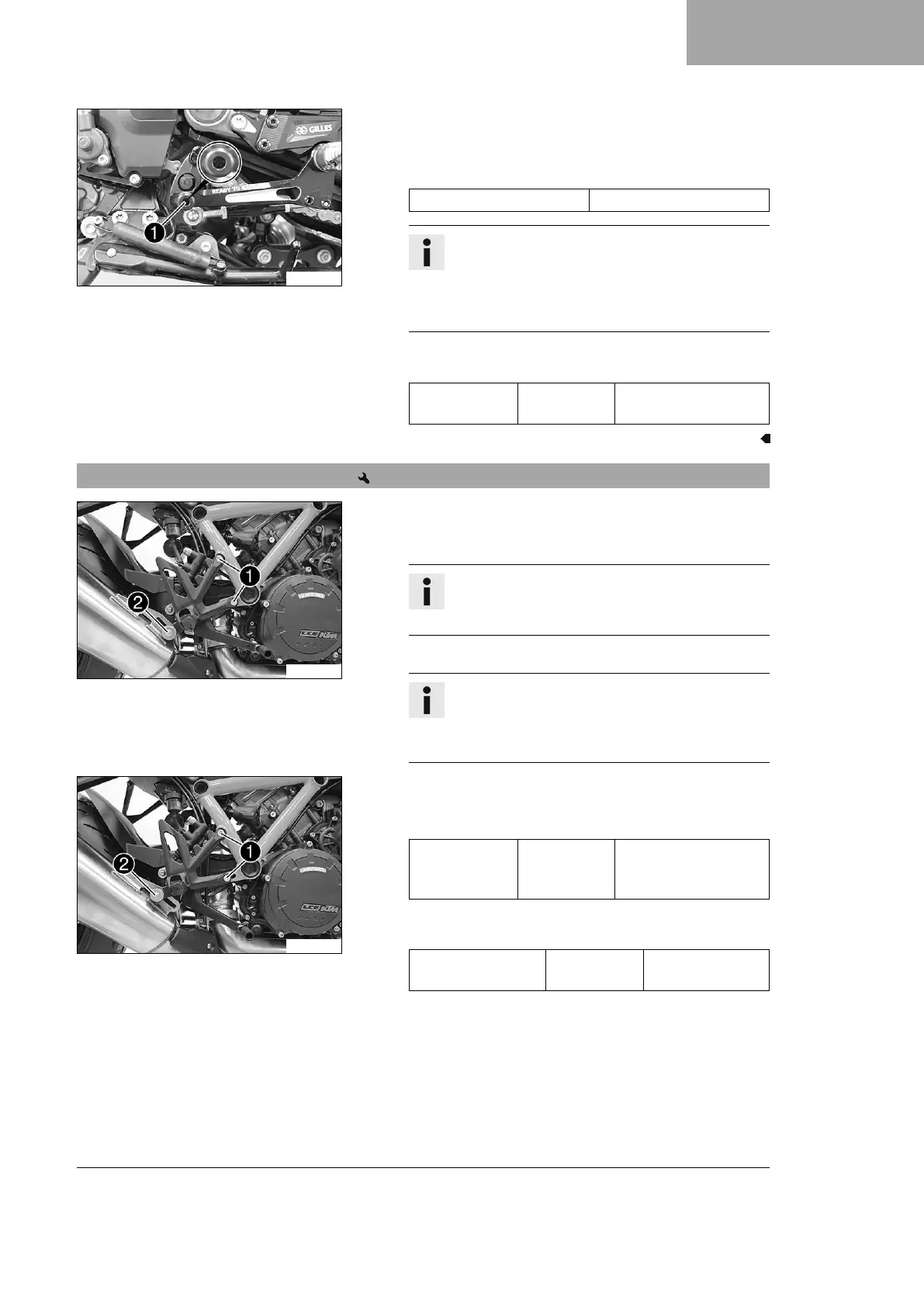

Remove screw
1
.
– Screw in the shift lever stub at the desired position.
Guideline
Standard Stub in center position
Info
The shift lever stub can be set to three different
positions.
The shift lever stud is set at the factory and does
not need to be changed.
–
Tighten screw
1
.
Guideline
Screw, shift
lever stub
M6 10 Nm (7.4 lbf ft)
Loctite
®
243™
8.9 Adjusting the footrest support
S04086-10
Main work
(SUPER DUKE R)
–
Remove screws
1
on the right footrest support.
Info
Pay attention to the nut when removing the lower
footrest support bolt.
–
Loosen screw
2
.
Info
The adjustable footrest support enables a more
comfortable lower footrest position or a sporty upper
footrest position.
S04087-10
– Position the footrest support.
–
Mount and tighten screws
1
.
Guideline
Screw, front
rider footrest
bracket
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
–
Tighten screw
2
.
Guideline
Remaining screws,
chassis
M8 25 Nm
(18.4 lbf ft)

KTM 1290 SUPER DUKE R 2021 Specifications

General

Displacement	1301 cc
Transmission	6-speed
Rear Suspension	WP APEX monoshock, fully adjustable
Seat Height	835 mm
Fuel Tank Capacity	16 liters
Dry Weight	189 kg
Bore x Stroke	108 mm x 71 mm
Compression Ratio	13.5:1
Fuel System	Electronic fuel injection
Lubrication	Forced oil lubrication with 3 oil pumps
Wheelbase	1482 mm
Traction Control	MTC (Motorcycle Traction Control), lean-angle sensitive
Engine Type	V-Twin, 4-stroke
Power	180 hp
Torque	140 Nm @ 8000 rpm
Frame	Chromium-Molybdenum steel frame, powder coated
Front Suspension	WP APEX 48
Front Brake	320 mm discs
Rear Brake	Brembo two-piston caliper, 240 mm disc
Clutch	PASC slipper clutch, hydraulically actuated
ABS	Bosch 9.1 MP (incl. Cornering ABS and Supermoto mode)
