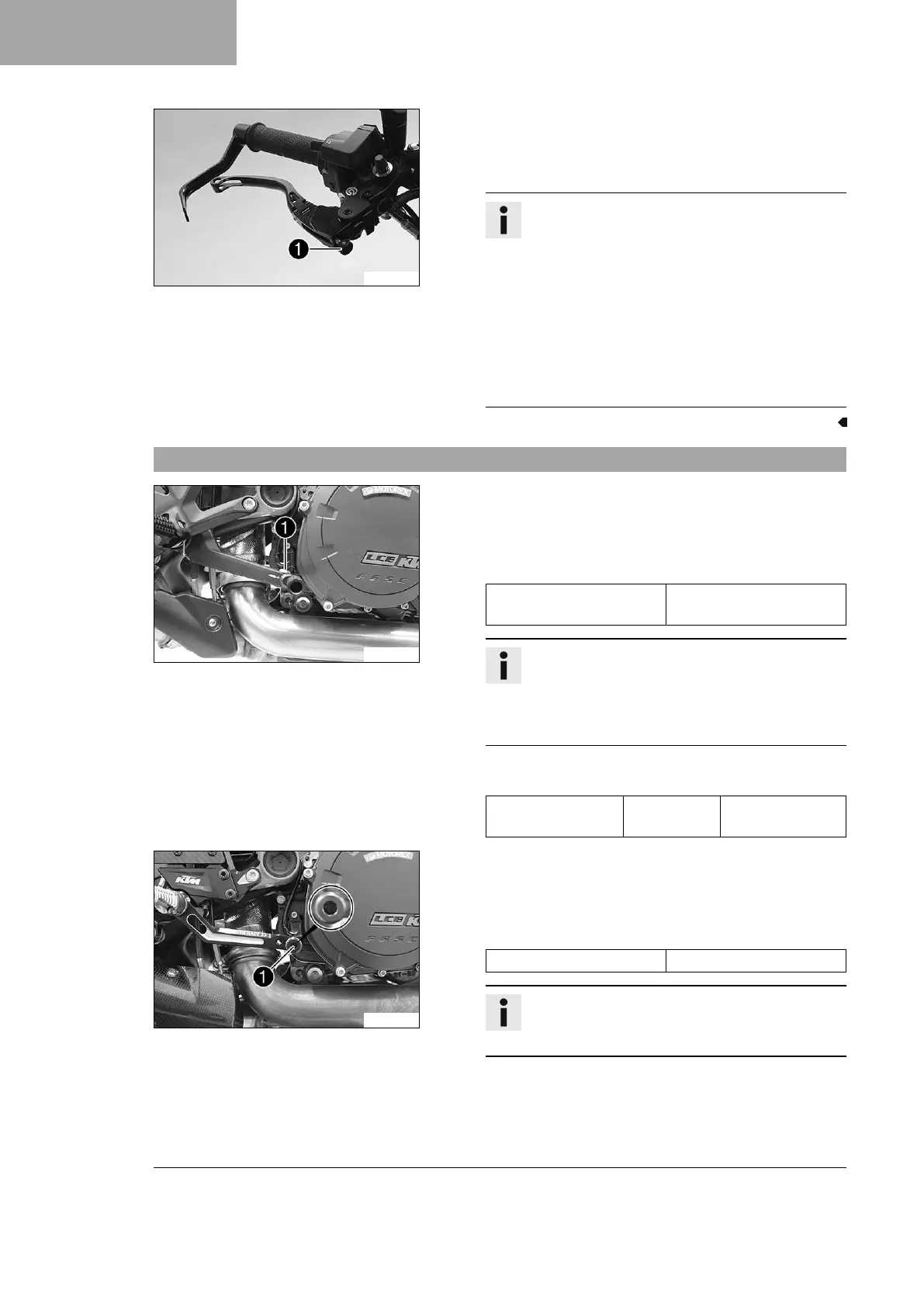

8 ERGONOMICS
64
S04772-10
(SUPER DUKE RR)
– Push hand brake lever forward.
– Adjust basic position of the hand brake lever to your hand
size by turning adjusting screw
1
.
Info
Turn the adjusting screw clockwise to increase the
distance between the hand brake lever and the han-
dlebar.
Turn the adjusting screw counterclockwise to
decrease the distance between the hand brake lever
and the handlebar.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not
use force.
Do not make any adjustments while riding.
8.5 Setting the step plate of the foot brake lever
S03894-10
(SUPER DUKE R)
–
Loosen screw
1
.
– Turn the step plate of the foot brake lever to the desired
position.
Guideline
Standard Step plate positioned to
the front
Info
The step plate of the foot brake lever can be freely
rotated through 360 °.
The basic position of the foot brake lever is set at
the factory and does not need to be changed.
–
Tighten screw
1
.
Guideline
Screw, step plate
for foot brake lever
M6 10 Nm (7.4 lbf ft)
S04773-10
(SUPER DUKE RR)
–
Remove screw
1
.
– Screw in foot brake lever stub at the desired position with
spacer.
Guideline
Standard Stub in front position
Info
The foot brake lever stub can be set to three differ-
ent positions.
–
Tighten screw
1
.
