KTM 1290 SUPER DUKE R 2021 User Manual

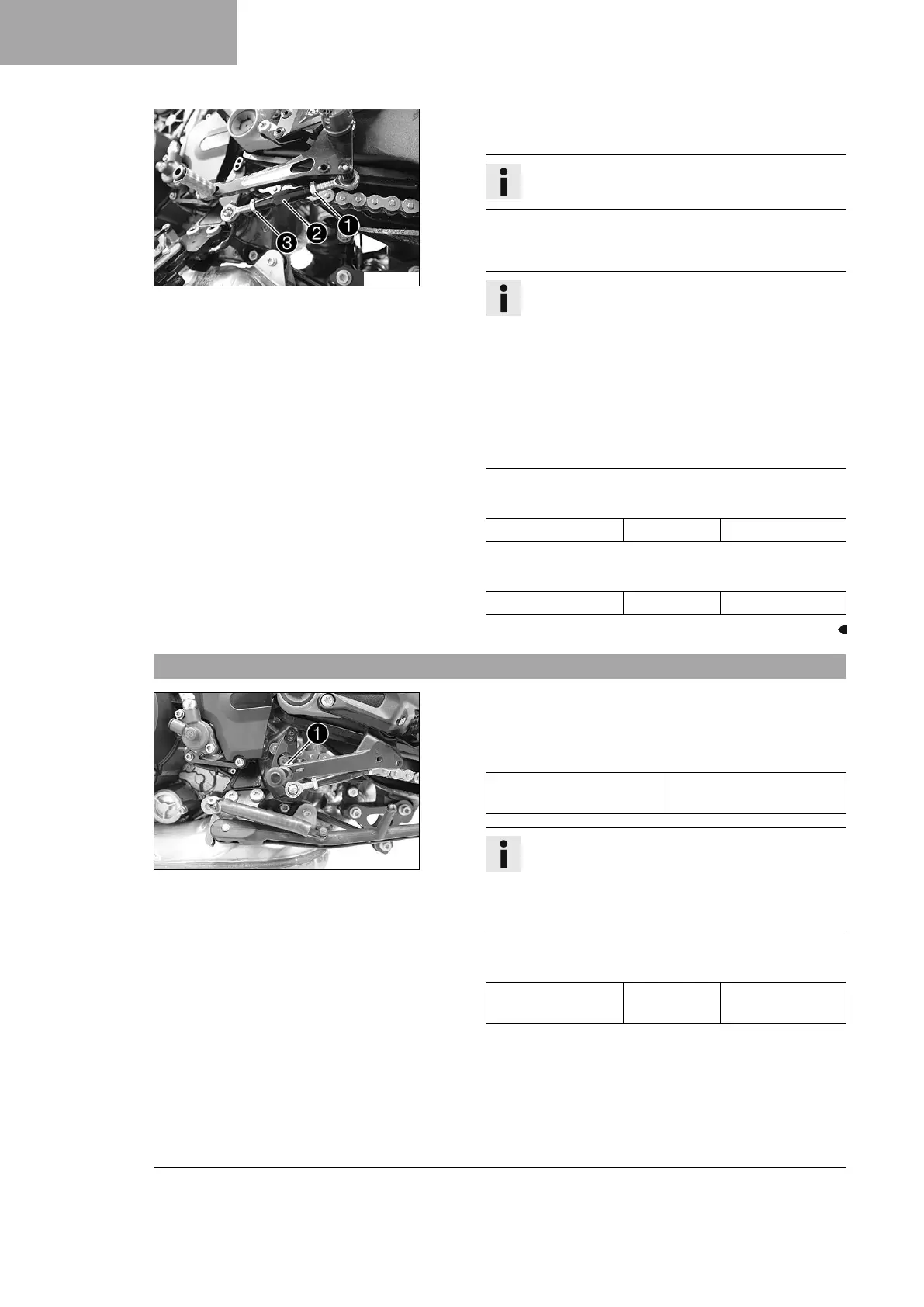

8 ERGONOMICS
66
S04774-10
(SUPER DUKE RR)
–
Loosen nut
1
while holding stud
2
.
Info
Nut
1
has an LH thread.
–
Loosen nut
3
while holding stud
2
.
–
Turn stud
2
to adjust the shift lever.
Info
The range of adjustment is limited.
If the adjustment range is not sufficient, use the
extension included.
The shift lever must not come into contact with any
other vehicle components during the shift proce-
dure.
The shift linkage must be correctly adjusted in all
footrest positions to ensure correct functioning of
the shift mechanism.
–
Tighten nut
3
while holding stud
2
.
Guideline
Nut, shift rod M8 12 Nm (8.9 lbf ft)
–
Tighten nut
1
while holding stud
2
.
Guideline
Nut, shift rod M8LH 12 Nm (8.9 lbf ft)
8.8 Setting the shift lever stub
S03896-10
(SUPER DUKE R)
–
Loosen screw
1
.
– Turn the shift lever stub to the desired position.
Guideline
Standard Step plate positioned to
the front
Info
The shift lever stub can be freely rotated through
360 °.
The shift lever stud is set at the factory and does
not need to be changed.
– Tighten the screw.
Guideline
Screw, shift lever
stub
M6 10 Nm (7.4 lbf ft)
