KTM 1290 SUPER DUKE R 2021 User Manual

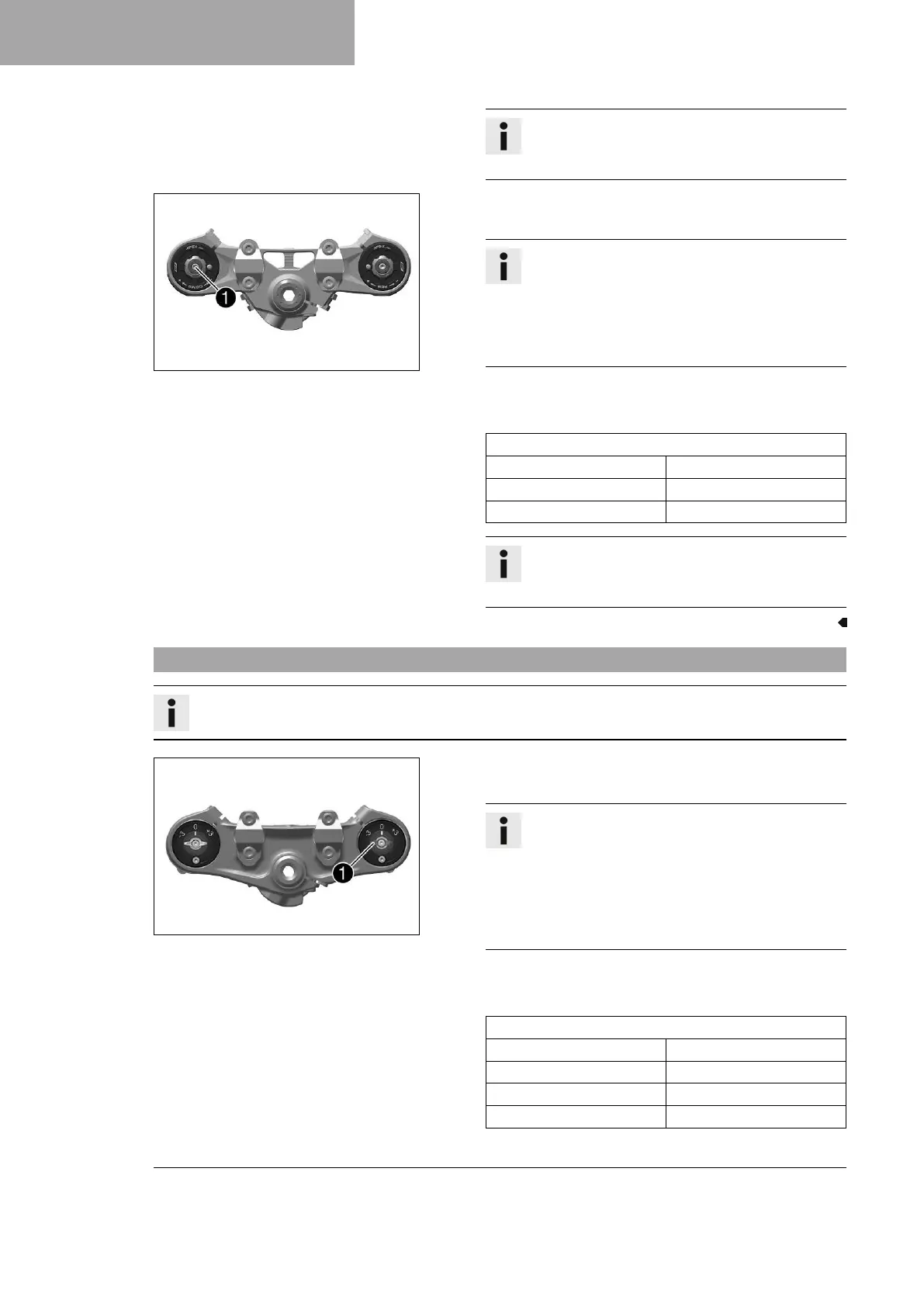

12 SUSPENSION SETTING
92
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.
S04731-10
(SUPER DUKE RR)
–
Turn adjusting screw
1
clockwise all the way.
Info
The adjusting screw
1
is located at the upper end
of the left fork leg.
The compression damping is located in the left fork
leg COMP. The rebound damping is located in the
right fork leg REB.
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Compression damping
Street 24 clicks
Sport 20 clicks
Race course 17 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.
12.4 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
S03908-12
(SUPER DUKE R)
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of
the right fork leg.
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COMP (white
adjusting screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Rebound damping
Comfort 21 clicks
Standard 15 clicks
Sport 7 clicks
Full payload 7 clicks
