SERVICE WORK ON THE CHASSIS 13
113

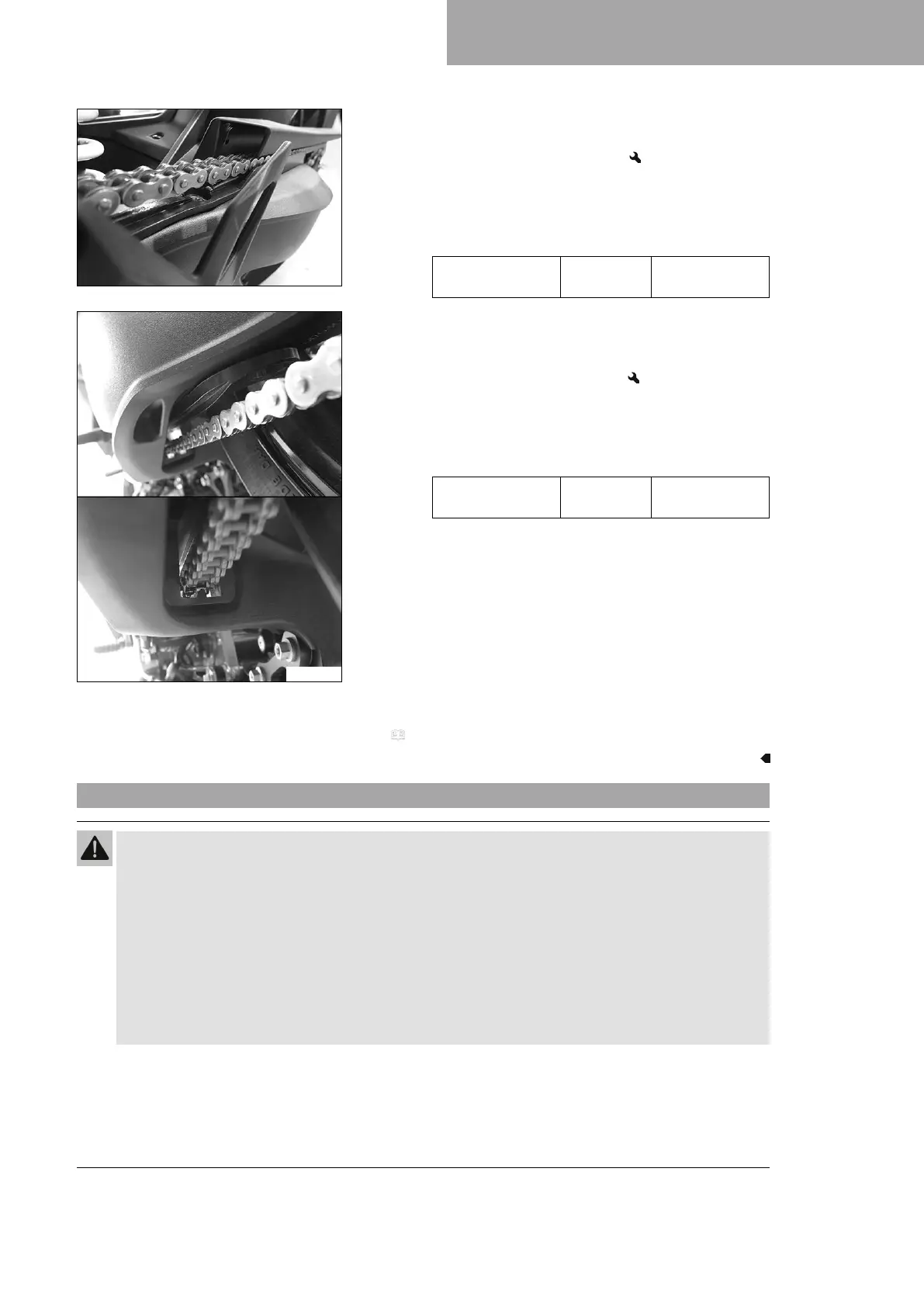

S04102-01
– Check the chain sliding guard for wear.
» If the chain sliding guard shows a lot of wear:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten screws on the chain sliding guard.
Guideline
Screw, chain slid-
ing guard
M5 5 Nm (3.7 lbf ft)
S04103-01
– Check the chain sliding piece for wear.
» If the lower edge of the chain is in line with or below the
chain sliding piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten screw on the chain sliding piece.
Guideline
Remaining screws,
chassis
M8 25 Nm
(18.4 lbf ft)
Finishing work
– Remove the rear of the motorcycle from the lifting gear.
( p. 99)
13.21 Checking/correcting the fluid level of hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact
with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
