16 ELECTRICAL SYSTEM
140

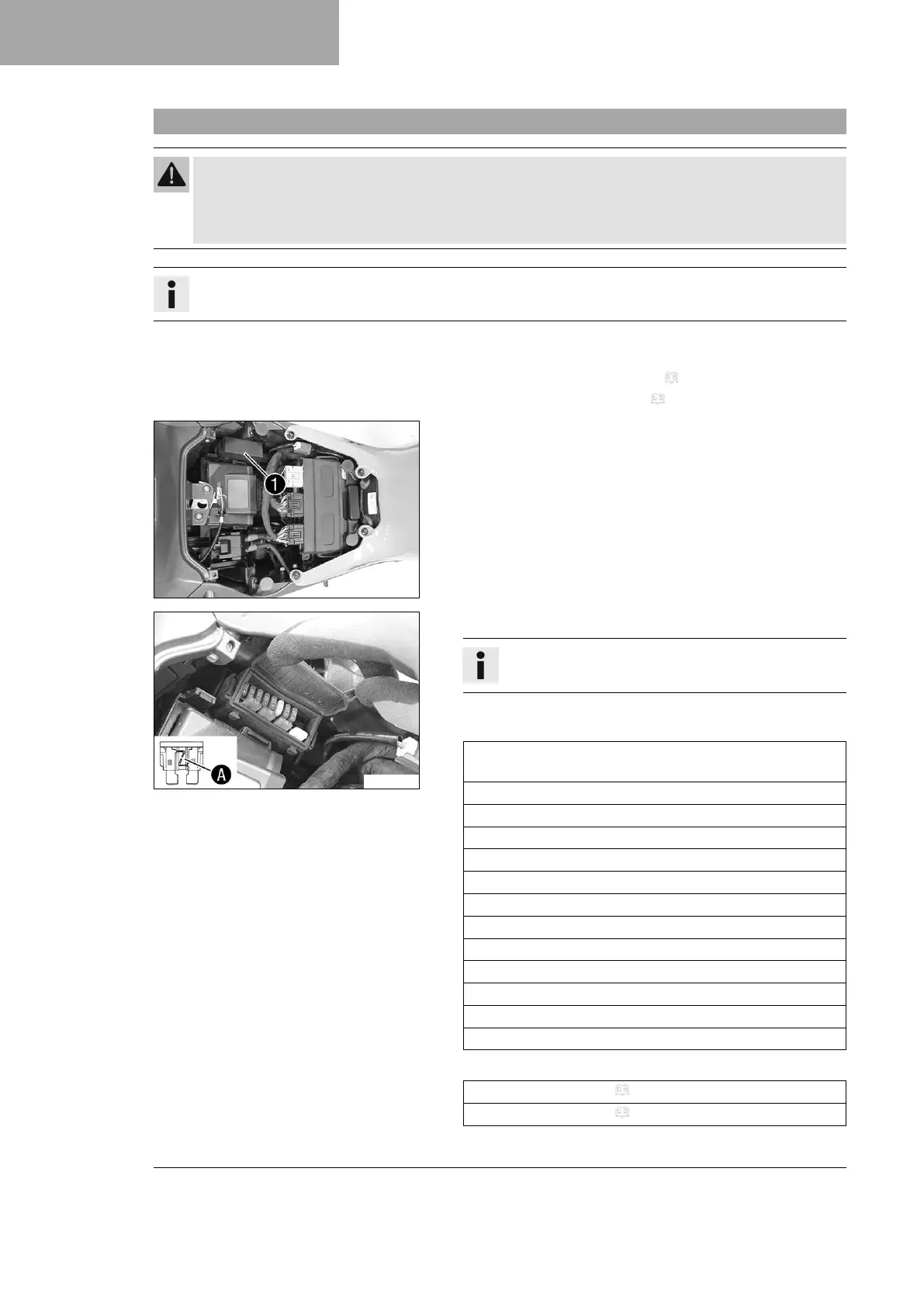

16.10 Changing the fuses in the fuse box
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
(SUPER DUKE R)
– Remove the passenger seat. ( p. 102)
– Remove the front rider's seat. ( p. 102)
S03941-10
Main work
–
Open fuse box cover
1
.
S03942-10
– Check the fuses.
Info
A faulty fuse has a burned-out fuse wire
A
.
– Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - power supply for control units and compo-
nents
Fuse 2 - 10 A - ACC1
Fuse 3 - 10 A - license plate lamp, tail light
Fuse 4 - 10 A - permanent positive for headlight
Fuse 5 - 10 A - control unit
Fuse 6 - 25 A - ABS return pump
Fuse 7 - 10 A - ABS hydraulic unit
Fuse 8 - 10 A - ACC2, USB socket
Fuse 9 - not assigned
Fuse 10 - not assigned
Fuse res - 10 A - spare fuses
Fuse res - 15 A - spare fuse
Fuse res - 25 A - spare fuse
– Insert the spare fuse with the correct rating.
Fuse (58011109110) ( p. 165)
Fuse (58011109115) ( p. 165)
