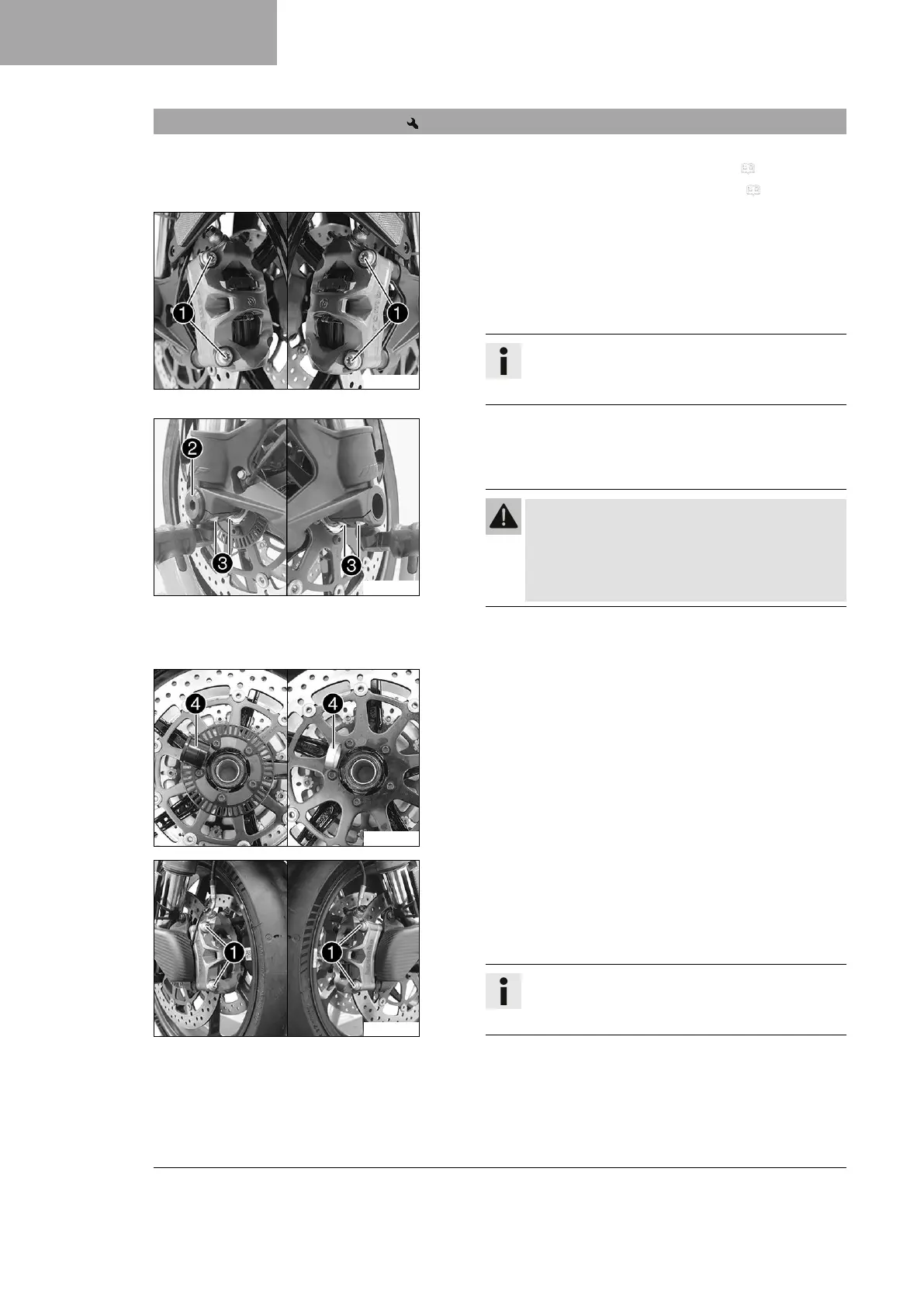

15 WHEELS, TIRES
122
15.1 Removing the front wheel
Preparatory work
– Lift the motorcycle with the rear lifting gear. ( p. 99)
– Lift the motorcycle with the front lifting gear. ( p. 99)
S03926-10
Main work
(SUPER DUKE R)
–
Remove screws
1
from both brake calipers.
– Press back brake linings by slightly tilting the brake
calipers laterally on the brake disc. Pull brake calipers
carefully back from the brake discs and hang to the side.
Info
Do not operate the hand brake lever if the brake
calipers have been removed.
R01778-10
–
Loosen screw
2
and screws
3
.
–
Using your hand, press on screw
2
to push the wheel
spindle out of the axle clamp. Remove screw
2
.
Warning
Danger of accidents Damaged brake discs reduce
the braking effect.
– Always lay the wheel down in such a way that
the brake discs are not damaged.
– Hold front wheel and remove wheel spindle. Take the front
wheel out of the fork.
S03928-10
–
Remove spacers
4
.
S04801-10
(SUPER DUKE RR)
–
Remove screws
1
from both brake calipers.
– Press back brake linings by slightly tilting the brake
calipers laterally on the brake disc. Pull brake calipers
carefully back from the brake discs and hang to the side.
Info
Do not operate the hand brake lever if the brake
calipers have been removed.
