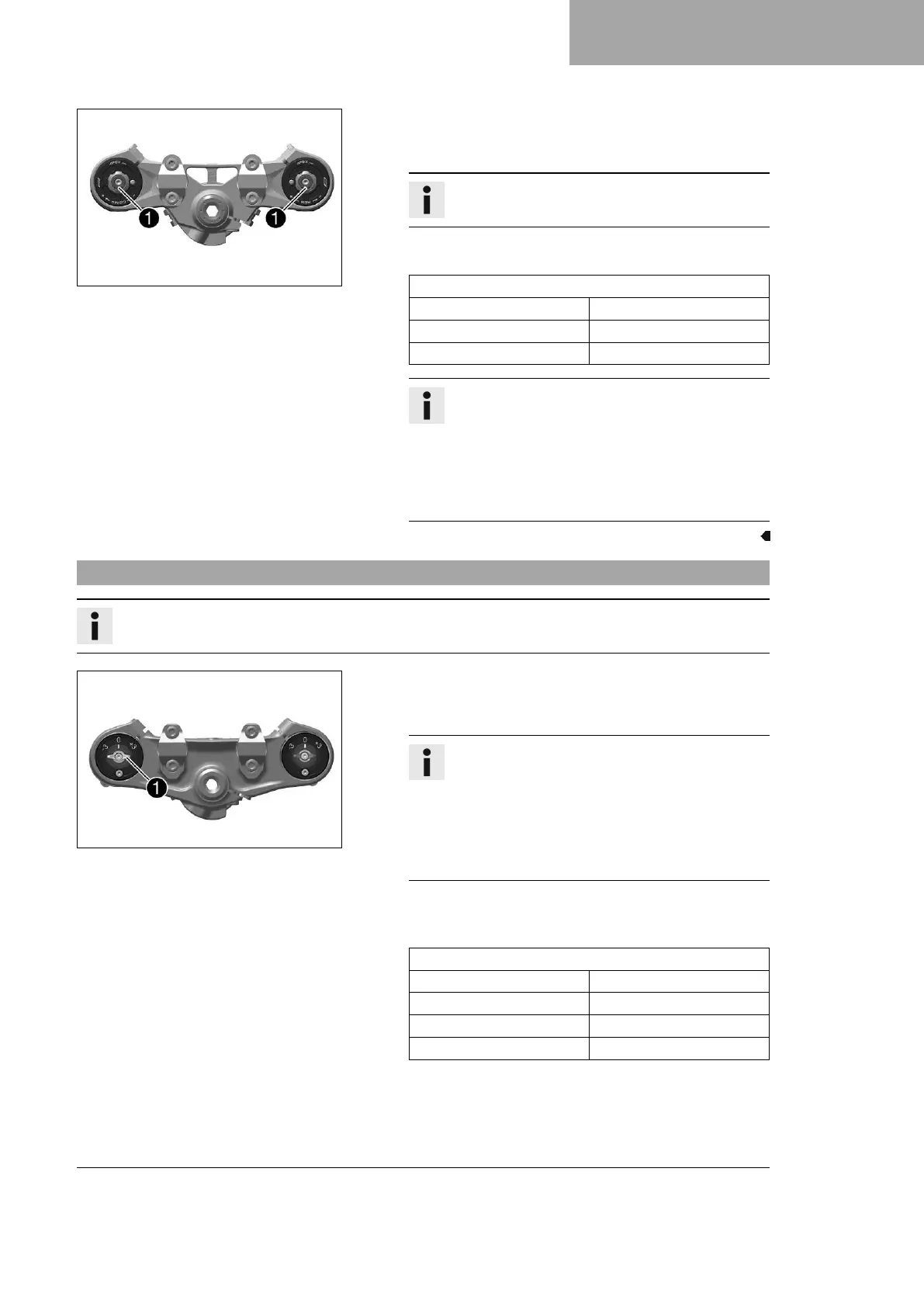

SUSPENSION SETTING 12
91
S04731-12
(SUPER DUKE RR)
–
Turn red hexagonal adjusting screws
1
counterclockwise
all the way.
Info
Make the same adjustment on both fork legs.
– Turn adjusting screws clockwise.
Guideline
Spring preload – preload adjuster
Street 2 turns
Sport 2 turns
Race course 2 turns
Info
Turn clockwise to increase the spring preload; turn
counterclockwise to reduce the spring preload.
Adjusting the spring preload has no influence on
the absorption setting of the rebound.
Basically, however, you should set the rebound
damping higher with a higher spring preload.
12.3 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
S03908-11
(SUPER DUKE R)
–
Turn white adjusting screw
1
clockwise as far as it will
go.
Info
The adjusting screw
1
is located at the upper end
of the left fork leg.
The compression damping is located in left fork
leg COMP (white adjusting screw). The rebound
damping is located in right fork leg REB (red adjust-
ing screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Compression damping
Comfort 21 clicks
Standard 15 clicks
Sport 7 clicks
Full payload 7 clicks
