KTM 1290 SUPER DUKE R 2021 User Manual

ERGONOMICS 8
71

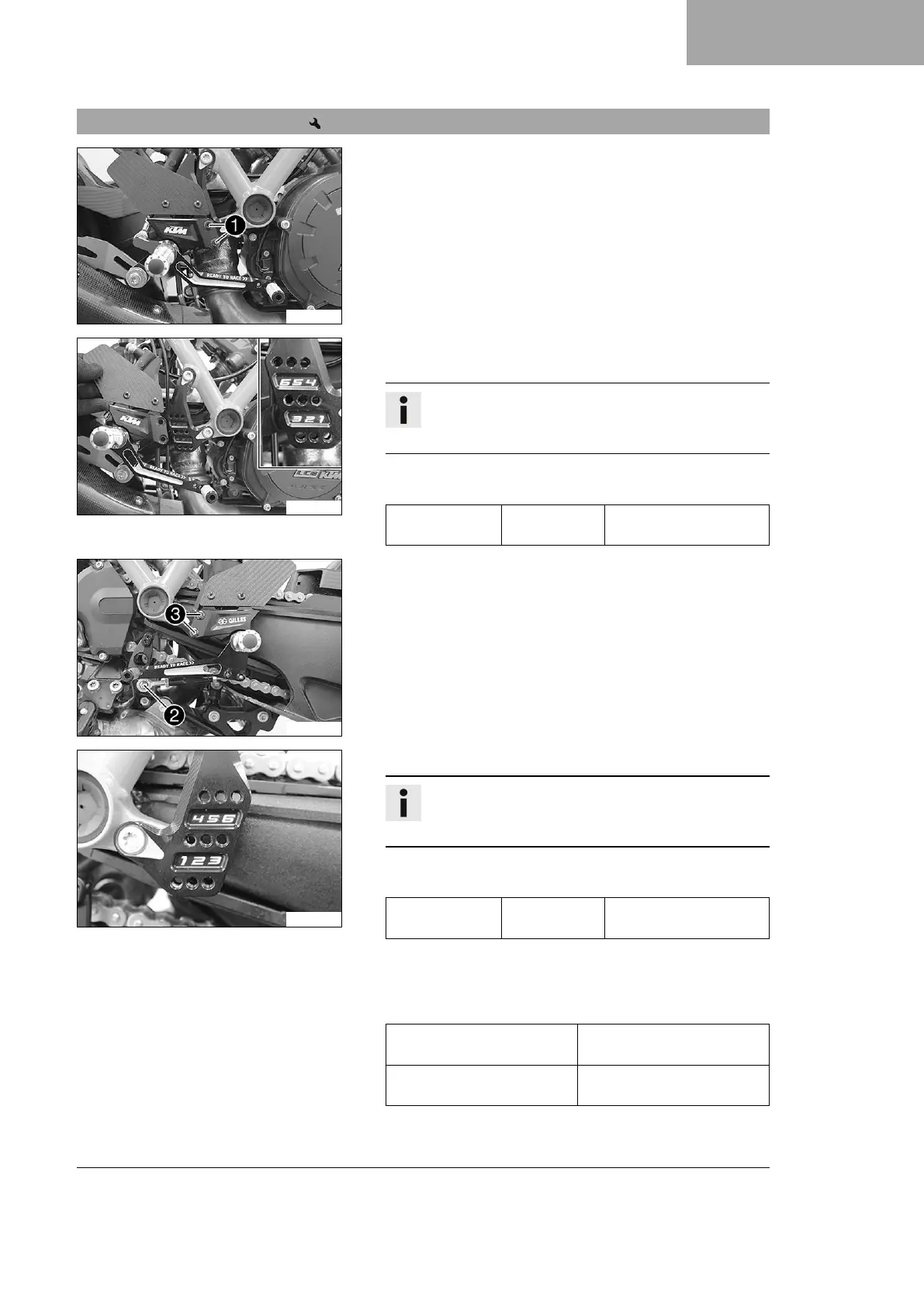

8.10 Adjusting the footrests (SUPER DUKE RR)
S04790-10
Main work
–
Remove screws
1
from right footrest and take off footrest
with brake cylinder.
S04791-10
– Position footrest with brake cylinder at one of the six possible
positions.
Info
The adjustable footrest allows up to six footrest posi-
tions. Adjust the footrest position equally on both sides.
–
Mount and tighten screws
1
.
Guideline
Screw, footrest
unit adjustment
M6x17 10 Nm (7.4 lbf ft)
Loctite
®
243™
S04792-10
–
Remove screw
2
of the shift linkage.
–
Remove screws
3
on the left footrest and take off the
footrest.
S04793-10
– Position the footrest at one of the six possible positions.
Info
The adjustable footrest allows up to six footrest posi-
tions. Adjust the footrest position equally on both sides.
–
Mount and tighten screws
3
.
Guideline
Screw, footrest
unit adjustment
M6x17 10 Nm (7.4 lbf ft)
Loctite
®
243™
– Position the shift linkage at one of the lower positions (nor-
mal switching scheme) or one of the upper positions (reversed
switching scheme) of the shift shaft.
Guideline
Outer position Shift power low, long shift
path
Inner position Shift power high, short shift
path
