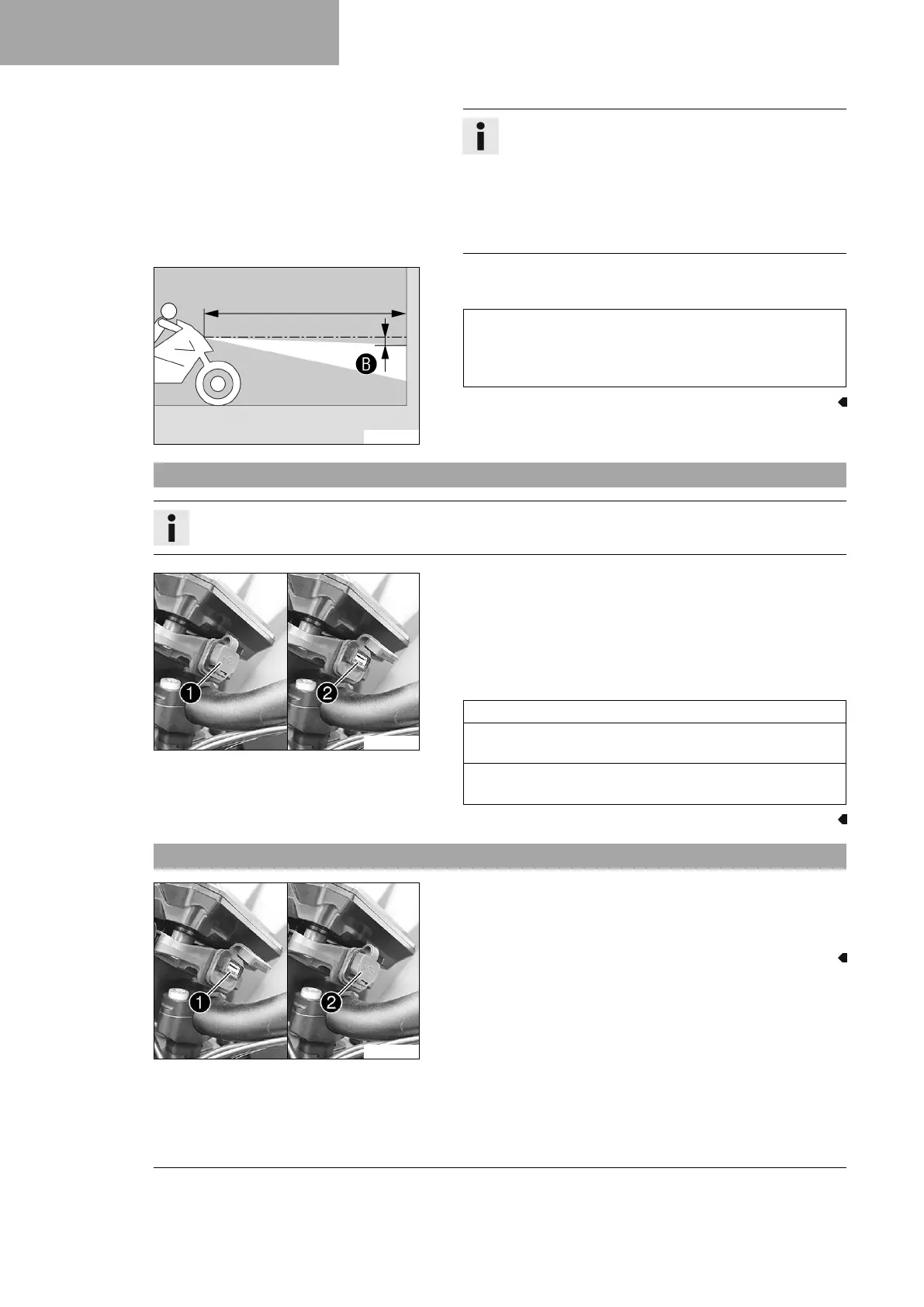

16 ELECTRICAL SYSTEM
142
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
Screw
1
also secures the headlight. Ensure the screw
is always screwed in far enough.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger if
applicable.
16.13 Connecting the USB cable
Info
The USB socket is located on the left of the combination instrument.
S03943-10
–
Open USB socket cover
1
.
–
Connect a suitable USB cable to the USB socket
2
.
– Connect the USB cable to the device.
– Route the cable on the handlebar and secure with the cable
ties.
Guideline
Use the shortest possible USB cable.
Always ensure that connected devices are also protected
against moisture.
Route and secure the cable in such a way that it cannot be
damaged.
16.14 Disconnecting the USB cable
S03944-10
– Disconnect USB cable from the device.
–
Disconnect USB cable from the USB socket
1
.
–
Close USB socket cover
2
.
