6. Checking the transmission fluid
level
WARNING
To avoid personal injury or death:
• Park the tractor on a firm, flat, and level surface,
lower the implement to the ground, and shut off
the engine before checking the transmission-
fluid level.
IMPORTANT :
• If the transmission-oil level is low, do not
operate the engine.
1. Park the machine on a flat surface, lower the
implement and shut off the engine.
2. To check the transmission-fluid level, draw out the
dipstick.
3. Wipe the dipstick clean.
4. Replace the dipstick.
5. Draw the dipstick out again.
6. Check to see that the transmission-oil-level lies
between the 2 notches.

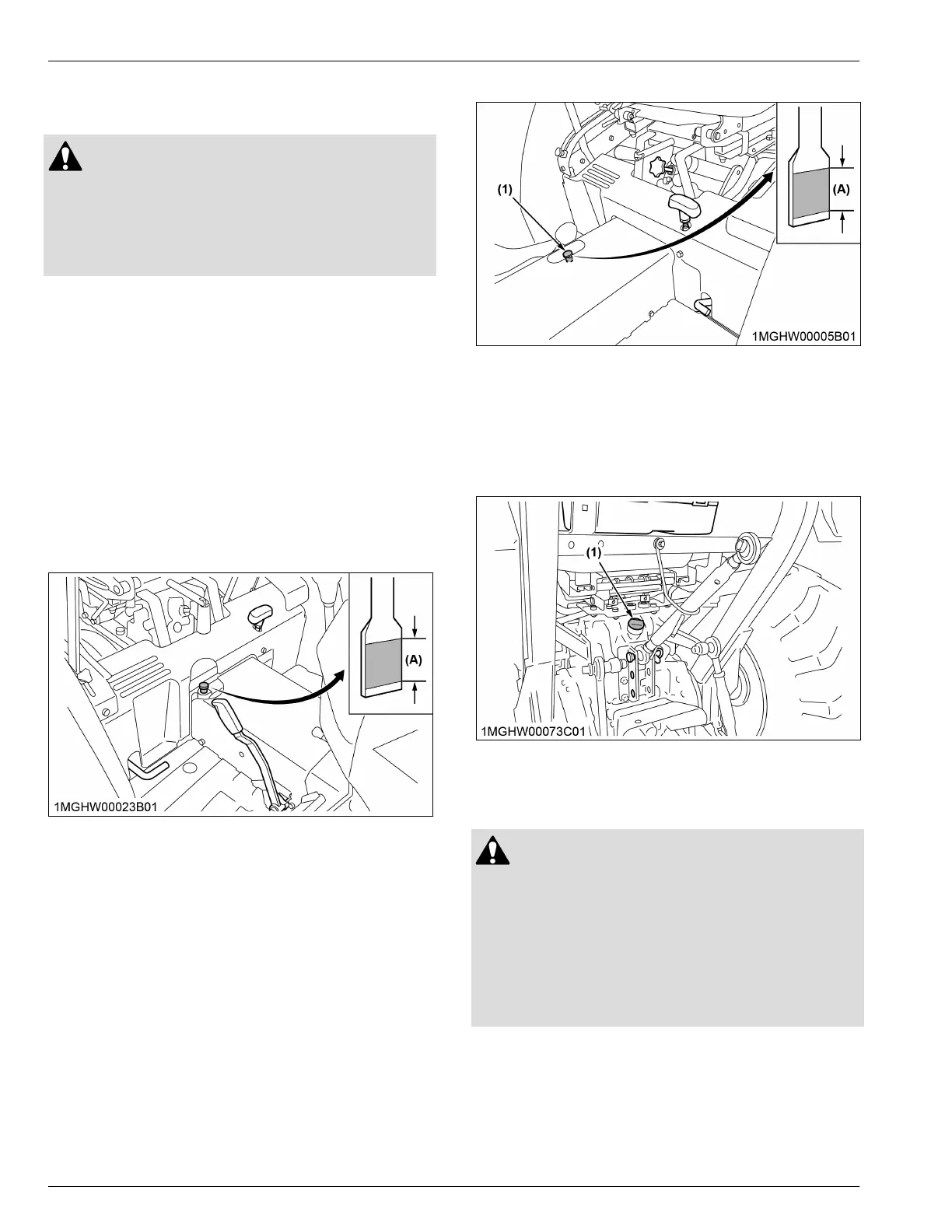

[Manual transmission type]
(1) Dipstick
(A) Range that transmission oil
level is acceptable within
[HST type]
(1) Dipstick (A) Range that transmission oil
level is acceptable within
7. If the engine-oil level is too low, add new
transmission-oil level from the oil inlet to the
prescribed level.
(See LUBRICANTS, FUEL, AND COOLANT on
page 96.)
(1) Oil inlet
7. Checking the coolant level
WARNING
To avoid personal injury or death:
• Be sure to stop the engine and remove the
starter key before checking the coolant level.
• Do not remove the radiator cap while the
coolant is hot. When the coolant is cool, slowly
rotate the radiator cap to the first stop and allow
sufficient time for excess pressure to escape
before removing the radiator cap completely.
PERIODIC SERVICE DAILY CHECK
