[Manual transmission type]

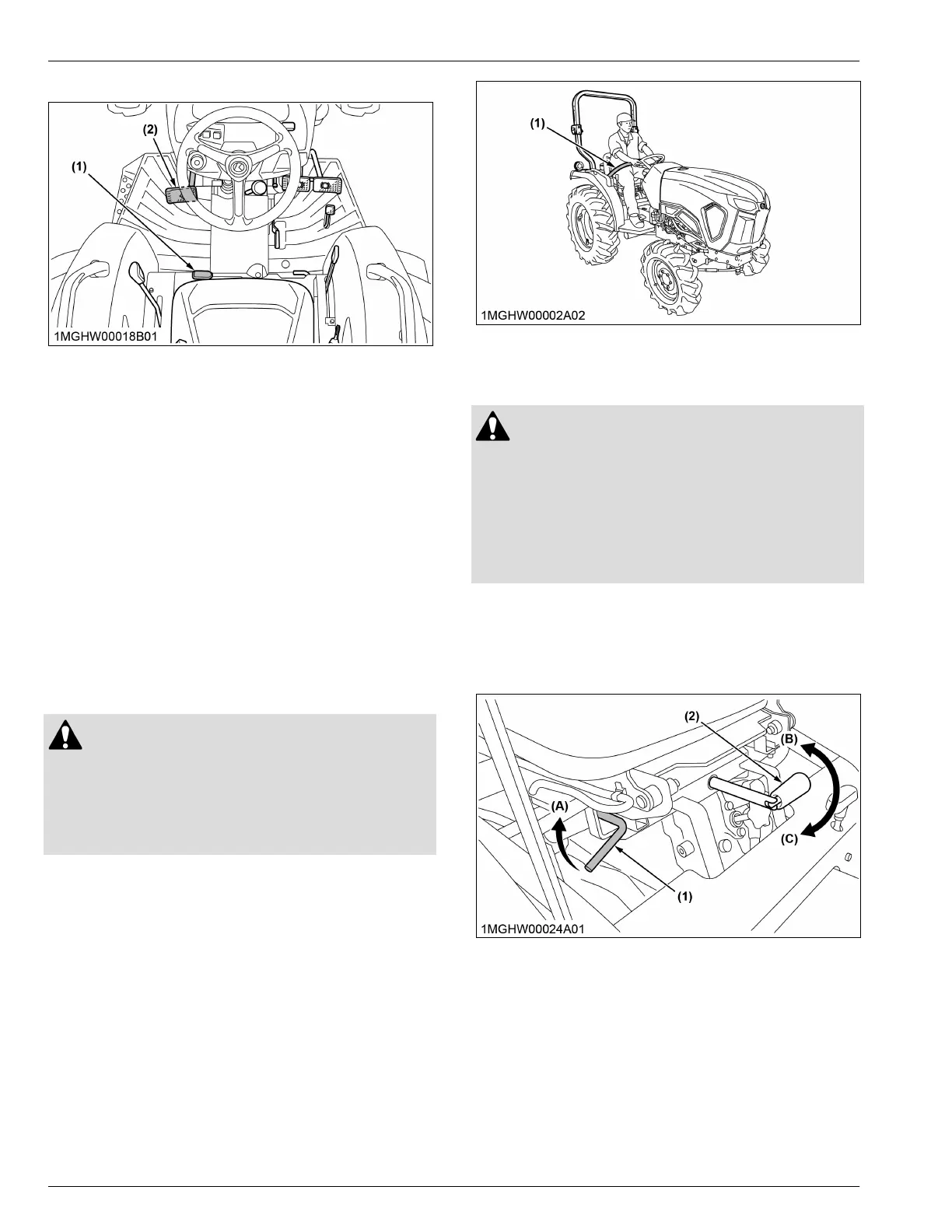

(1) Front wheel drive lever (2) Clutch pedal
IMPORTANT :
• If the front wheel-drive lever is difficult to set to
“OFF,” stop the tractor, turn the steering wheel,
and move the front wheel-drive lever.
• Tires will wear quickly if the front-wheel drive is
engaged on paved roads.
Front wheel drive is effective for the following jobs:
• When greater pulling force is needed, such as
working in a wet field, when pulling a trailer, or
when working with a front-end loader
• When working in sandy soil
• When working on a hard soil where a rotary tiller
might push the tractor forward
• For increased braking at reduced speed
6. Seat belt
WARNING
To avoid personal injury or death:
• Always use the seat belt when any ROPS or
CAB are installed.
• Do not use the seat belt if a foldable ROPS is
down or there is no ROPS.
Adjust the seat belt for proper fit and connect the
buckle. This seat belt is auto-locking retractable type.
(1) Seat belt
7. Operator's seat
WARNING
To avoid personal injury or death:
• Adjust the operator's seat only while the tractor
is stopped.
• Make sure that the operator's seat is completely
secured after each adjustment.
• Do not allow any person other than the operator
to ride on the tractor.
• Travel adjustment
Pull the travel-adjust lever and slide the seat
backward or forward, as required. The operator's
seat will lock in position when the travel-adjust lever
is released.
(1) Travel adjust lever
(2) Suspension adjust lever
(A) Unlock
(B) Decreasing tension
(C) Increasing tension
• Suspension adjustment
Turn the suspension-adjust handle to achieve the
optimum suspension setting.
IMPORTANT :
• After adjusting the operator's seat, ensure the
operator's seat is properly locked.
• Position the suspension-adjust handle at the
horizontal position.
INSTRUMENT PANEL AND CONTROLS
FOOT CONTROLS AND HAND CONTROLS
