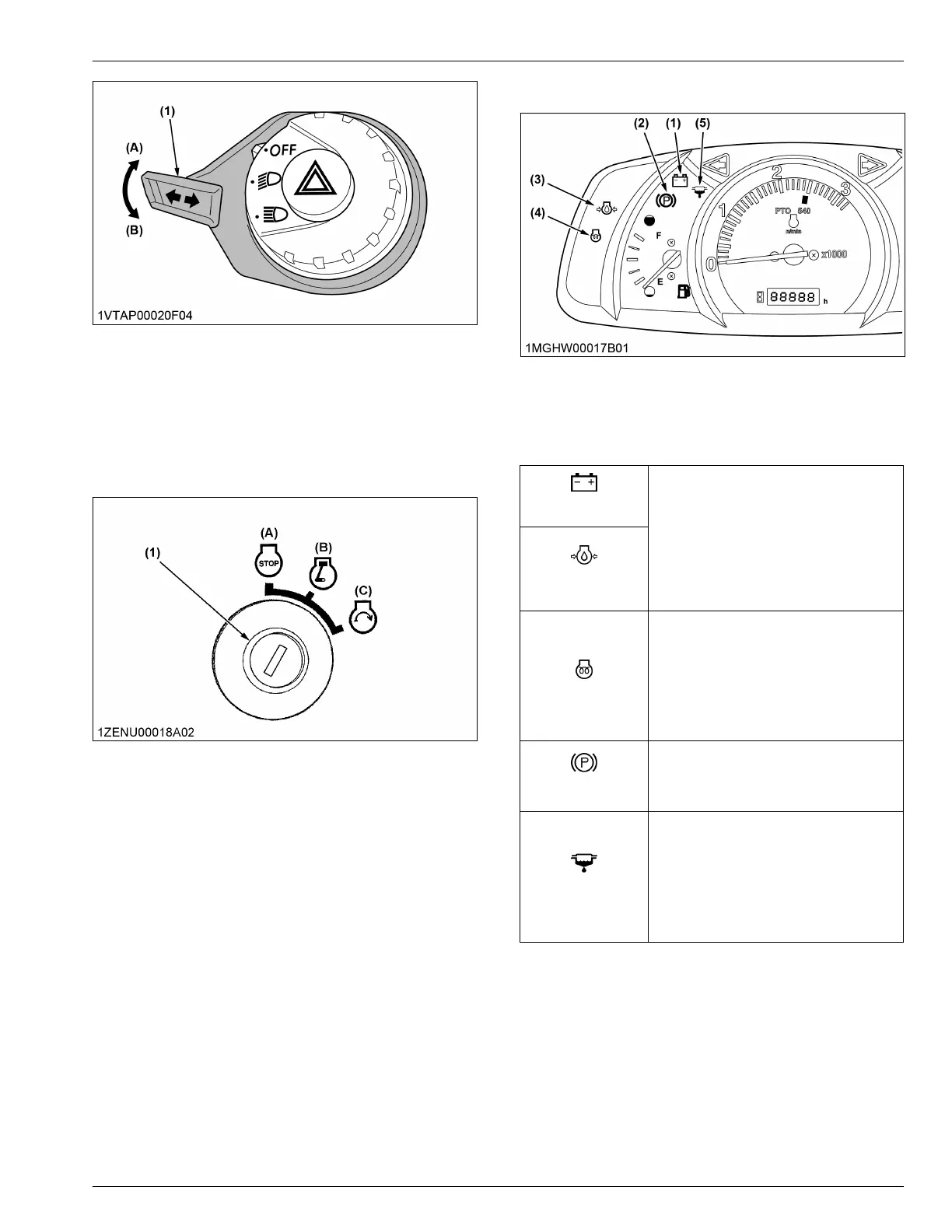

(1) Turn signal light switch (A) Right turn
(B) Left turn
NOTE :
• Be sure to return the turn signal-light switch to
center position after turning.
3. Key switch
(1) Key switch (A) Off
(B) On
(C) Start
4. Easy Checker lamps
(1) Electrical charge warning in-
dicator
(2) Parking brake warning indi-
cator
(3) Engine oil pressure warning
indicator
(4) Glow plug indicator
(5) Water separator filter indica-
tor
Electrical charge
warning indicator
When the key is turned “ON,” the electrical
charge-warning indicator (1) and the en-
gine oil-pressure warning indicator (3)
should come on. If trouble should occur at
any location while the engine is operating,
the warning-indicator lamp corresponding
to the trouble comes on.
For further details, see Easy Checker on
page 70.
Engine oil pressure
warning indicator
Glow plug indicator
Suppose that the engine-coolant tempera-
ture is not high enough yet. Glow-plug indi-
cator (4) also comes on when the key
switch is turned “ON” to preheat the engine
and goes off automatically when preheat is
completed. Illumination time of indicator
varies according to the temperature of
coolant.
Parking brake warn-
ing indicator
The parking brake-warning indicator (2)
comes on while the parking brake is ap-
plied and goes off when the parking brake
is released.
Water separator in-
dicator
If water or impurities collect in the water
separator, the indicator will light up and the
buzzer will sound.
If this should happen during operation,
drain the water from the water separator as
soon as possible.
(See Checking the water separator on
page 102)
IMPORTANT :
• Daily checks only with the Easy Checker, are
not sufficient. Never fail to conduct daily checks
carefully according to DAILY CHECK on page
101.
