Kubota L3902 User Manual

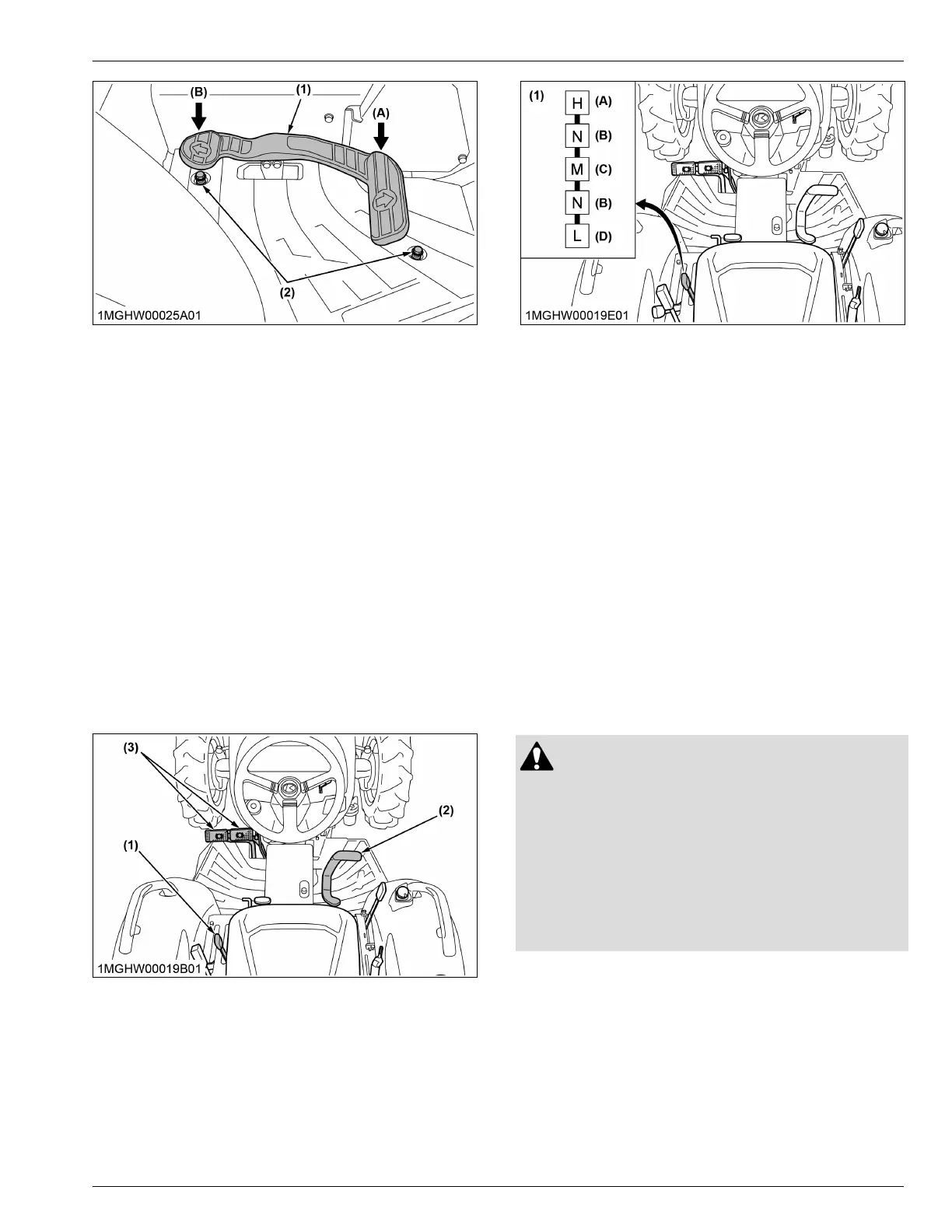

(1) Speed control pedal
(2) Stopper bolt
(A) Forward
(B) Reverse
IMPORTANT :
• To prevent serious damage to the HST, do not
adjust the stopper bolts.
NOTE :
• When you stand up from the operator's seat
with the speed-control pedal depressed or the
cruise-control lever engaged, the engine will
stop regardless of whether the tractor is moving
or not. This is because the tractor is equipped
with operator presence control system (OPC).
14. Range gear shift lever (L-M-H)
[HST type only]
You can shift the range gear only when the tractor is
completely stopped and the speed-control pedal is in
the “NEUTRAL” position.
(1) Range gear shift lever (L-M-
H)
(2) Speed control pedal
(3) Brake pedal
(1) Range gear shift lever (L-M-
H)
(A) High
(B) Neutral position
(C) Middle
(D) Low
IMPORTANT :
To avoid damage of transmission and shift linkage
when shifting the gear, follow the following:
• Completely stop the tractor using the brake
pedals.
• Do not force the range gear-shift lever.
• If it is difficult to shift the range gear-shift lever
into [L], [M], or [H] from the “NEUTRAL”
position on slopes, be sure to set the parking
brake and start the following procedure:
1. Slightly depress the speed-control pedal to
rotate the gears inside of transmission.
2. Release the speed-control pedal to the
“NEUTRAL” position.
15. Cruise control lever (if equipped)
[HST type only]
WARNING
To avoid personal injury or death:
• Pull the cruise-control lever completely to the
rear before starting the engine.
• Do not use the cruise control when driving on
the road.
• Be sure to connect both the left and the right
brakes to release the cruise control. The speed-
cruise control will not be released with single
brake activation.
Cruise control is designed for operating efficiency and
operator comfort. Cruise control will provide a constant
forward operating speed by mechanically holding the
cruise-control lever at the selected position.
NOTE :
• Cruise-control device does not operate in
reverse.
• Preferably set the cruise-control lever, while
holding down the speed-control pedal.
FOOT CONTROLS AND HAND CONTROLS INSTRUMENT PANEL AND CONTROLS
L3302,L3902
43

Kubota L3902 Specifications

General

Engine Horsepower	37.5 HP
Cylinders	3
Drive	4WD
3-Point Hitch Category	Category I
Hydraulic System Type	Open Center
Engine Type	Diesel
PTO Horsepower	30.8 HP
Displacement	111.4 cu. in. (1.826 L)
Transmission Type	Gear shift or HST
Number of Gears	8F / 8R (Gear Shift)
Fuel Tank Capacity	11.9 gal (45 L)
Length	121.1 in (3076 mm)
Width	55.1 inches
Height	91.7 in (2329 mm)
Tire Size (Front)	7-16
Tire Size (Rear)	11.2-24
