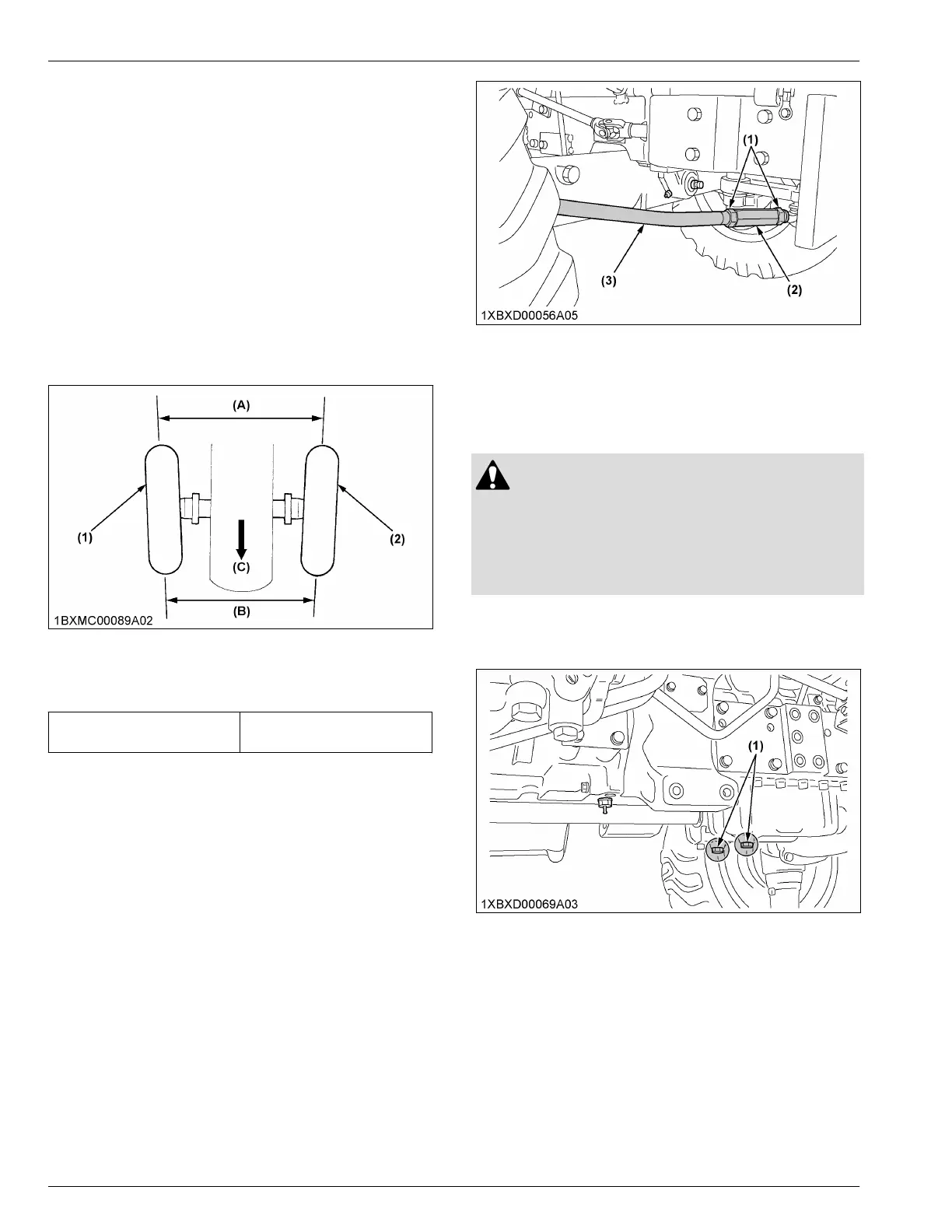

1. Park the tractor on a flat place.
2. Turn the steering wheel so that the front wheels are
in the straight ahead position.
3. Lower the implement, lock the parking brake, and
stop the engine.
4. Measure the distance between the tire beads at
front of tire, at the hub height.
5. Measure the distance between the tire beads at
rear of tire, at the hub height.
The distance between the tire beads at front of tire
should be shorter than the distance between the tire
beads at rear of tire.
6. If the distance between the tire beads at front of tire
is not shorter than the distance between the tire
beads at rear of tire, adjust the length of tie rod.
(1) Front tire (RH)
(2) Front tire (LH)
(A) Wheel-to-wheel distance at
rear
(B) Wheel-to-wheel distance at
front
(C) Front
Proper toe-in value
(A) - (B)
2 mm to 8 mm
(0.08 in. to 0.31 in.)
2.1 Adjusting the toe-in
1. Loosen the lock nuts.
2. Turn the turnbuckle to adjust the length of tie rod
until the proper toe-in measurement is obtained.
3. Retighten the lock nuts.
(1) Lock nuts
(2) Turnbuckle
(3) Tie rod
SERVICE EVERY 400 HOURS
1. Changing the engine oil
WARNING
To avoid personal injury or death:
• Be sure to stop the engine and remove the
starter key before changing the engine oil.
• Allow the engine to cool down sufficiently
because the engine oil can be hot and can burn.
1. To drain the used engine oil, remove the drain plug
at the bottom of the engine and drain the engine oil
completely into the oil pan.
(1) Drain plug
2. After draining the engine oil, reinstall the drain plug.
PERIODIC SERVICE SERVICE EVERY 200 HOURS
