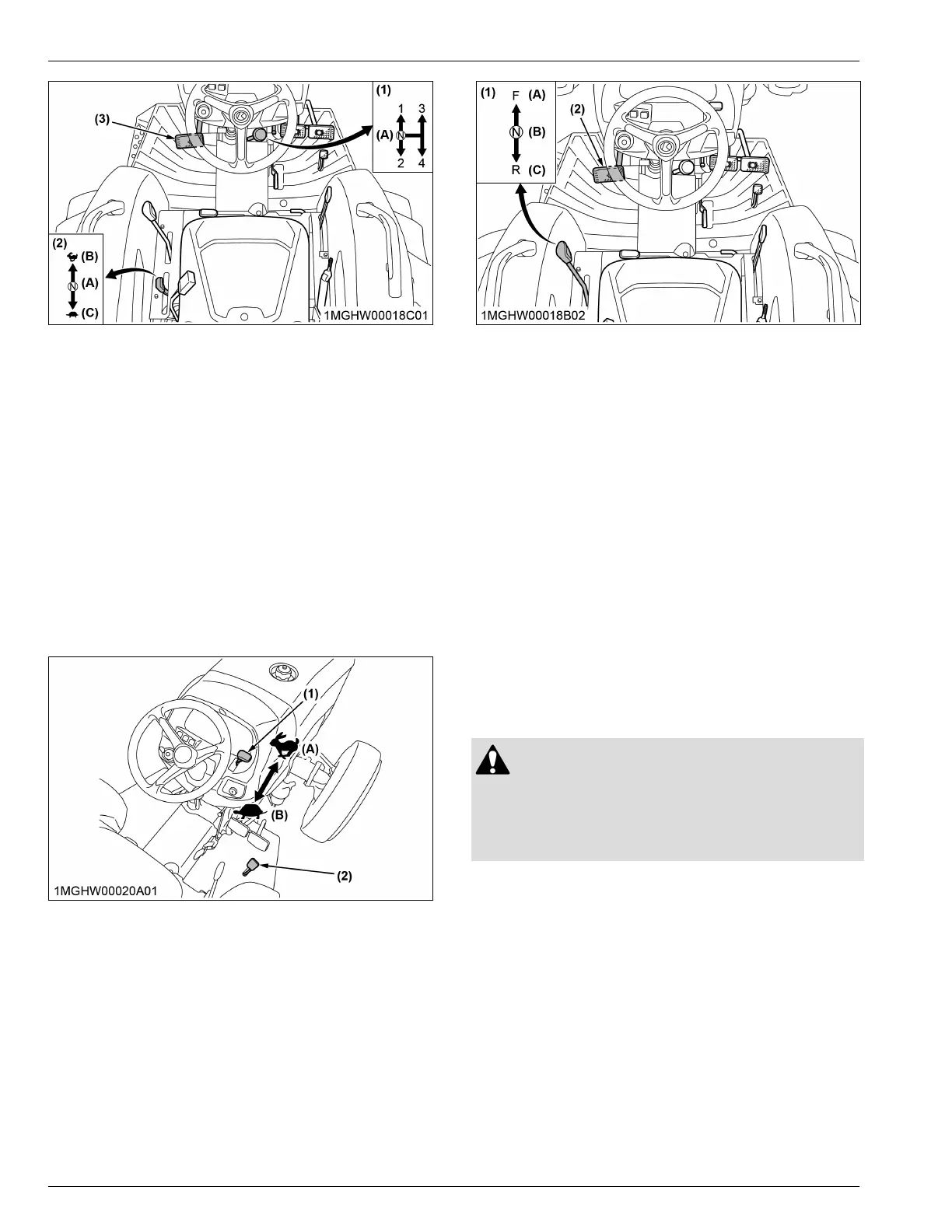

(1) Main gear shift lever
(2) Range gear shift lever
(3) Clutch pedal
(A) Neutral position
(B) High
(C) Low
IMPORTANT :
• To change speeds, press down the clutch pedal
completely and stop the tractor before
proceeding with speed change.
11. Foot throttle [Manual
transmission type only]
Use the foot throttle when traveling on the road.
Press down on the foot throttle for higher speed. The
foot throttle is interlocked with the hand-throttle lever.
When using the foot throttle, keep the hand-throttle
lever in the low idling position.
(1) Hand throttle lever
(2) Foot throttle
(A) Increase
(B) Decrease
12. Synchro-shuttle shift lever
[Manual transmission type only]
Shift the synchro-shuttle shift lever forward to obtain
forward speeds and shift back to obtain reverse
speeds. When changing the synchro-shuttle shift lever,
depress the clutch pedal and stop the tractor before
shifting.
(1) Synchro-shuttle shift lever
(2) Clutch pedal
(A) Forward
(B) Neutral position
(C) Reverse
IMPORTANT :
• The synchro-shuttle shift lever may be shifted
while the tractor is moving slowly and the
clutch is depressed, but sudden gear shifting
may cause transmission damage.
NOTE :
• When you stand up from the operator's seat
with the synchro-shuttle shift lever at
“FORWARD” or “BACKWARD,” the engine will
stop regardless of whether the machine is
moving or not. This is because the tractor is
equipped with operator presence control
system (OPC).
13. Speed control pedal [HST type
only]
WARNING
To avoid personal injury or death:
• Do not operate the tractor if it moves on level
ground with foot off of the speed-control pedal.
• Consult your local Kubota Dealer.
• Forward pedal
Depress the speed-control pedal with the toe of
your right foot to move forward.
• Reverse pedal
Depress the speed-control pedal with the heel of
your right foot to move backward.
INSTRUMENT PANEL AND CONTROLS
FOOT CONTROLS AND HAND CONTROLS
