(A) Diameter of adjusting bolt
7 mm
(0.28 in.)
(B) Clearance
0.9 mm to 1.0 mm
(0.035 in. to 0.039 in.)
4. Tighten the lock nut, holding the adjusting bolt.
5. Turn the flywheel to adjust the clearance of other 3
adjusting bolts.
6. Repeat the step 2. and readjust the free travel of
the clutch pedal if necessary.

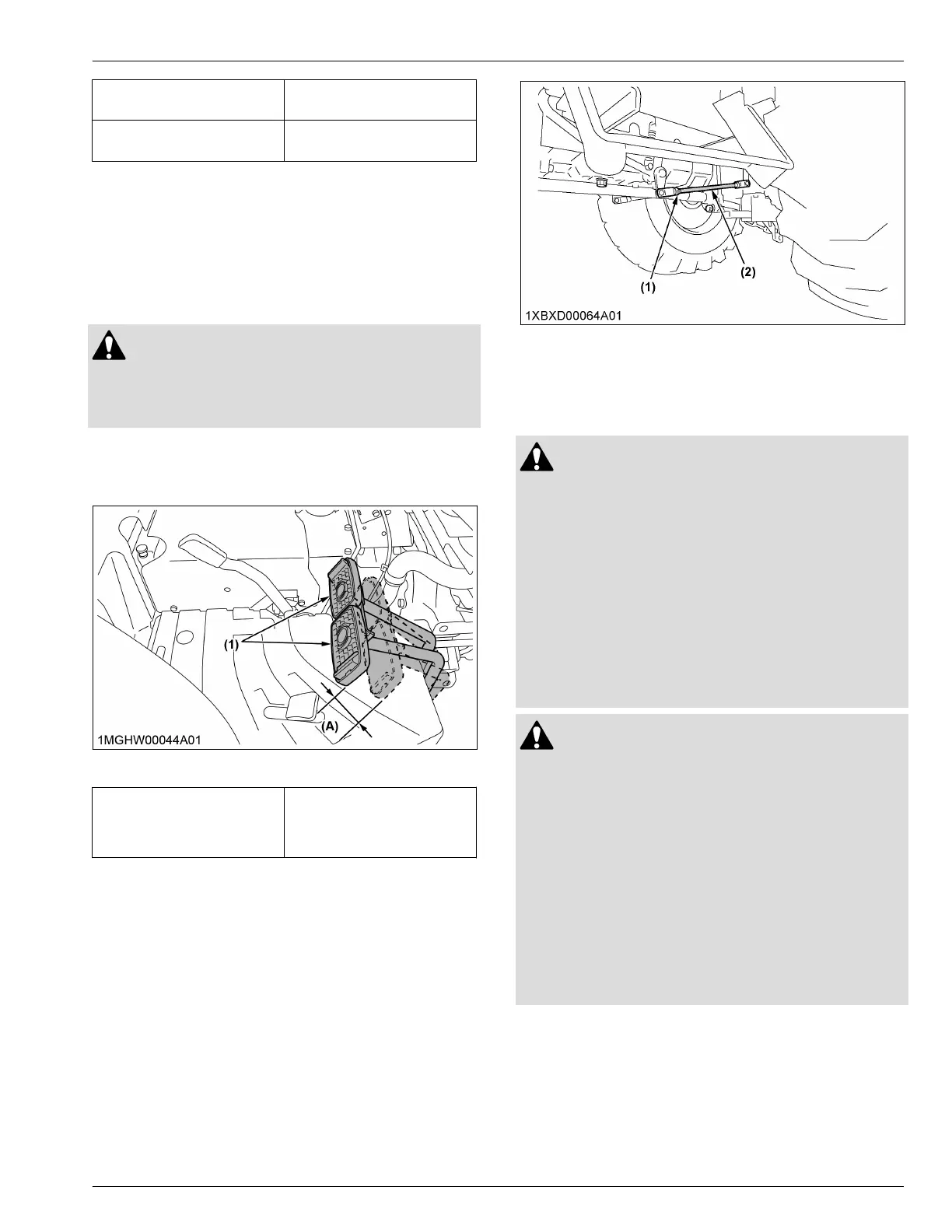

6. Adjusting the brake pedal
WARNING
To avoid personal injury or death:
• Stop the engine and chock the wheels before
checking the brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure the
free travel at the top of stroke of the brake pedal.
(1) Brake pedal
(A) Free travel
Proper brake pedal-free travel
15 mm to 20 mm (0.6 in. to
0.8 in.) on brake pedal
Keep the free travel in the right
and left pedals equal.
3. If adjustment is needed, loosen the lock nut and
turn the brake rod to adjust the rod length within the
acceptable limits.
(1) Lock nut
(2) Brake rod
4. Retighten the lock nut.
7. Checking the battery condition
DANGER
To avoid the possibility of battery explosion:
For the refillable type battery, follow the following
instructions.
• Do not use or charge the refillable type battery
if the fluid level is below the [LOWER] (lower
limit level) mark. Otherwise, battery-component-
parts may prematurely deteriorate, which may
shorten the service life of battery or cause an
explosion.
• Check the fluid level regularly and add distilled
water as required so that the fluid level is
between the [UPPER] and [LOWER] levels.
WARNING
To avoid personal injury or death:
• Never remove the battery cap while the engine
is operating.
• Keep the electrolyte away from eyes, hands,
and clothes. If you are spattered with the
electrolyte, wash away the electrolyte
completely with water immediately and get
medical attention.
• Keep away open sparks and flames from the
battery at all times. Hydrogen gas mixed with
oxygen becomes very explosive.
• Wear an eye protection and rubber gloves when
working around the battery.
Mishandling the battery shortens the service life and
adds to maintenance costs. The original battery is
maintenance free, but needs some servicing. If the
battery is weak, the engine will be difficult to start and
the lights will be dim. It is important to check the battery
periodically.
SERVICE EVERY 100 HOURS PERIODIC SERVICE
