POWER TAKE-OFF (PTO)
PTO OPERATION
WARNING
To avoid personal injury or death:
• Disengage the PTO, stop the engine, and allow
all rotating components to come to a complete
stop before connecting, disconnecting,
adjusting, or cleaning any PTO-driven
equipment.

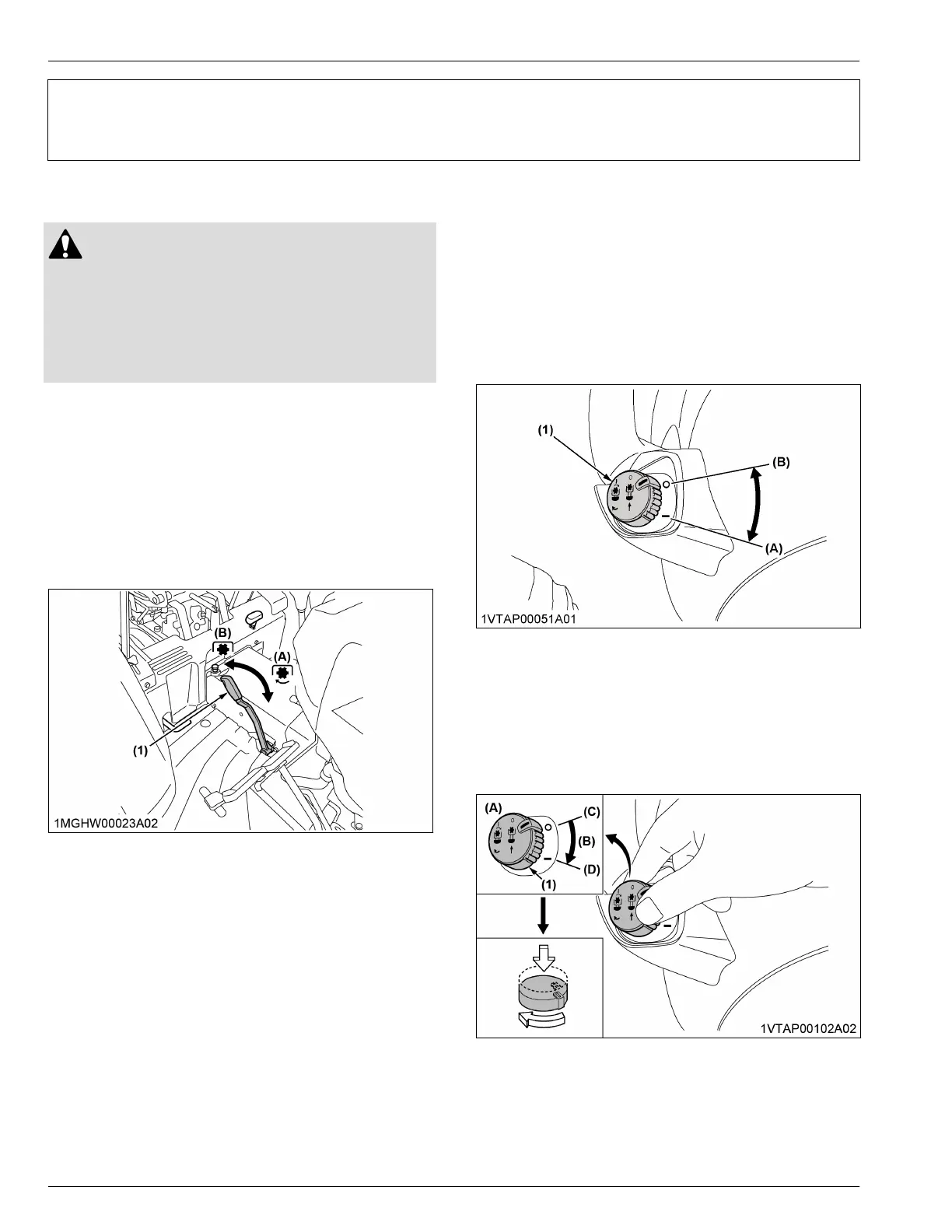

1. PTO gear shift lever [Manual
transmission type]
• The tractor is equipped with a 540 rpm speed
position.
• PTO shifting needs clutch operation. Press down
the clutch pedal completely to stop the tractor
movement and movement of any PTO-driven
equipment before shifting the PTO gear-shift lever.
(1) PTO gear shift lever (A) On (engage)
(B) Off (disengage)
IMPORTANT :
• To avoid shock loads to the PTO, reduce the
engine speed when engaging the PTO, then
open the throttle to the recommended speed.
• To avoid the damage of transmission, fully
disengage the main clutch before shifting the
PTO gear-shift lever.
NOTE :
• There is a “PTO (540 rpm)” indicated mark on
the tachometer board.
• Tractor engine will not start if the PTO gear-shift
lever is in the engaged (“ON”) position.
2. PTO clutch control switch [HST
type]
The PTO clutch-control switch engages or disengages
the PTO clutch that gives the PTO-independent control.
The tractor is equipped with a 540 rpm speed position
and 6-spline shaft.
Turn the PTO clutch-control switch to “ON” to engage
the PTO clutch. Turn the PTO clutch-control switch to
“OFF” to disengage the PTO clutch.
(1) PTO clutch control switch (A) On (engage)
(B) Off (disengage)
• To turn “ON”
While pushing the PTO clutch-control switch, turn
the PTO clutch-control switch clockwise to the “ON”
position. Then release your hand. In the “ON”
position, PTO clutch-control switch slightly rises
itself.
(1) PTO clutch control switch
(A) Returning automatically
(B) Turn clockwise
(C) Off
(D) On
• To turn “OFF”
Tap on top of the PTO clutch-control switch.
POWER TAKE-OFF (PTO) PTO OPERATION
