[Only seat equipped with armrest kit]
• An armrest kit is available as an option from
your dealer.
If you intend to raise the seat with the front
loader and optional armrest attached, raise the
armrest to avoid contact with the loader valve
cover before raising the seat.
Hitting the loader valve cover with the armrest
may causes damage to the loader valve cover.
8. Clutch pedal [L3302 Manual
transmission type]
WARNING
To avoid personal injury or death:
• The sudden release of the clutch may cause the
tractor to lunge in an unexpected manner.

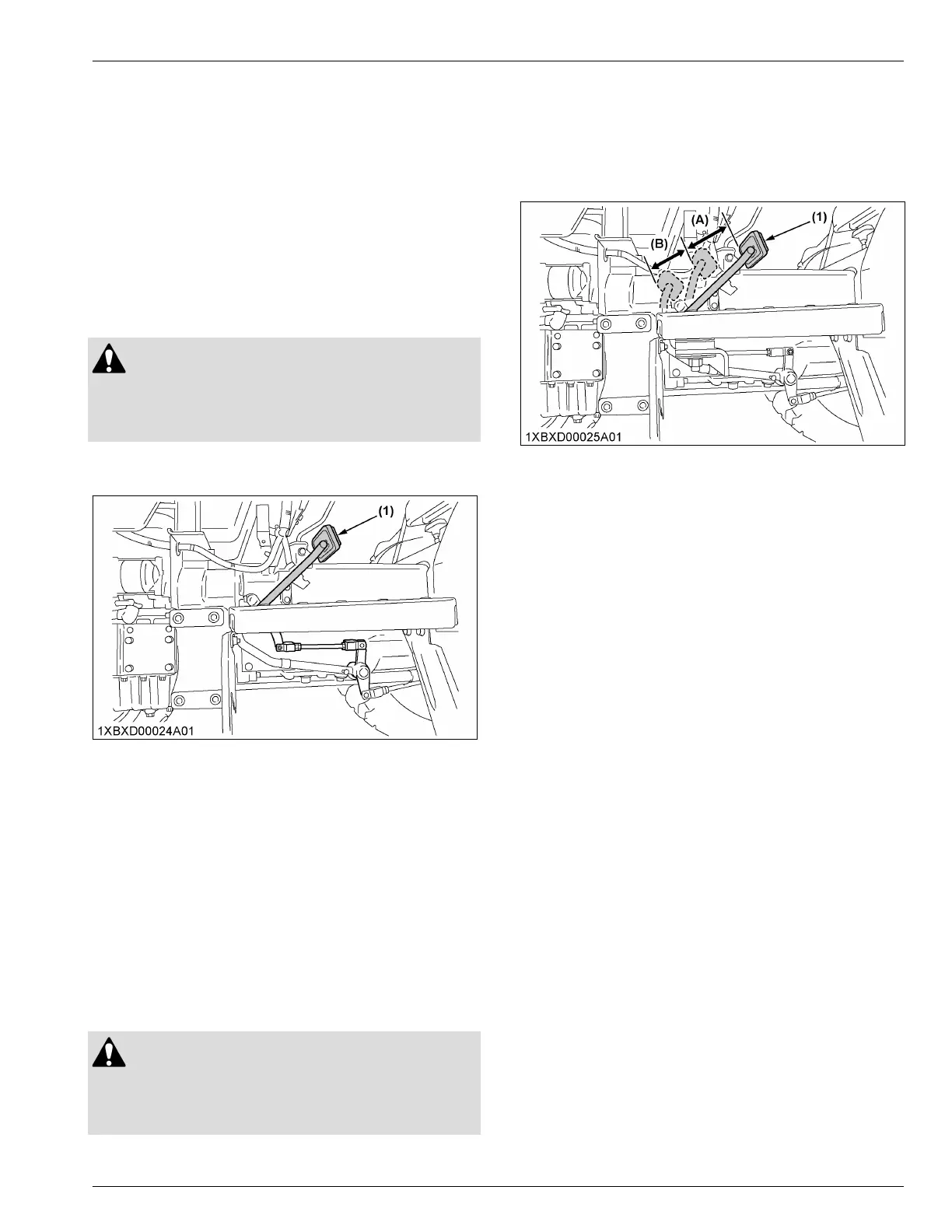

The clutch is disengaged when the clutch pedal is fully
pressed down.
(1) Clutch pedal
IMPORTANT :
To help prevent premature clutch wear follow the
following:
• Disengage the clutch pedal quickly and engage
it slowly.
• Avoid operating the tractor with your foot
resting on the clutch pedal.
• Select proper gear and engine speed depending
on the type of job.
9. Clutch pedal with dual clutch
[L3902 Manual transmission type]
WARNING
To avoid personal injury or death:
• The sudden release of the clutch may cause the
tractor to lunge in an unexpected manner.
The transmission clutch is disengaged when the clutch
pedal is pressed down half-way (A). The PTO clutch
remains engaged.
Both the transmission clutch and the PTO clutch are
disengaged when the clutch pedal is fully pressed
down (B).
(1) Clutch pedal (A) Disengaging only transmis-
sion clutch
(B) Disengaging transmission
clutch and PTO clutch
IMPORTANT :
To help prevent premature clutch wear follow the
following:
• Disengage the clutch pedal quickly and engage
it slowly.
• Avoid operating the tractor with your foot
resting on the clutch pedal.
• Select proper gear and engine speed depending
on the type of job.
10. Main gear shift lever and range
gear shift lever [Manual
transmission type only]
You can shift the main-gear shift and the range-gear
shift only when the tractor is completely stopped and
clutch pedal is depressed.
