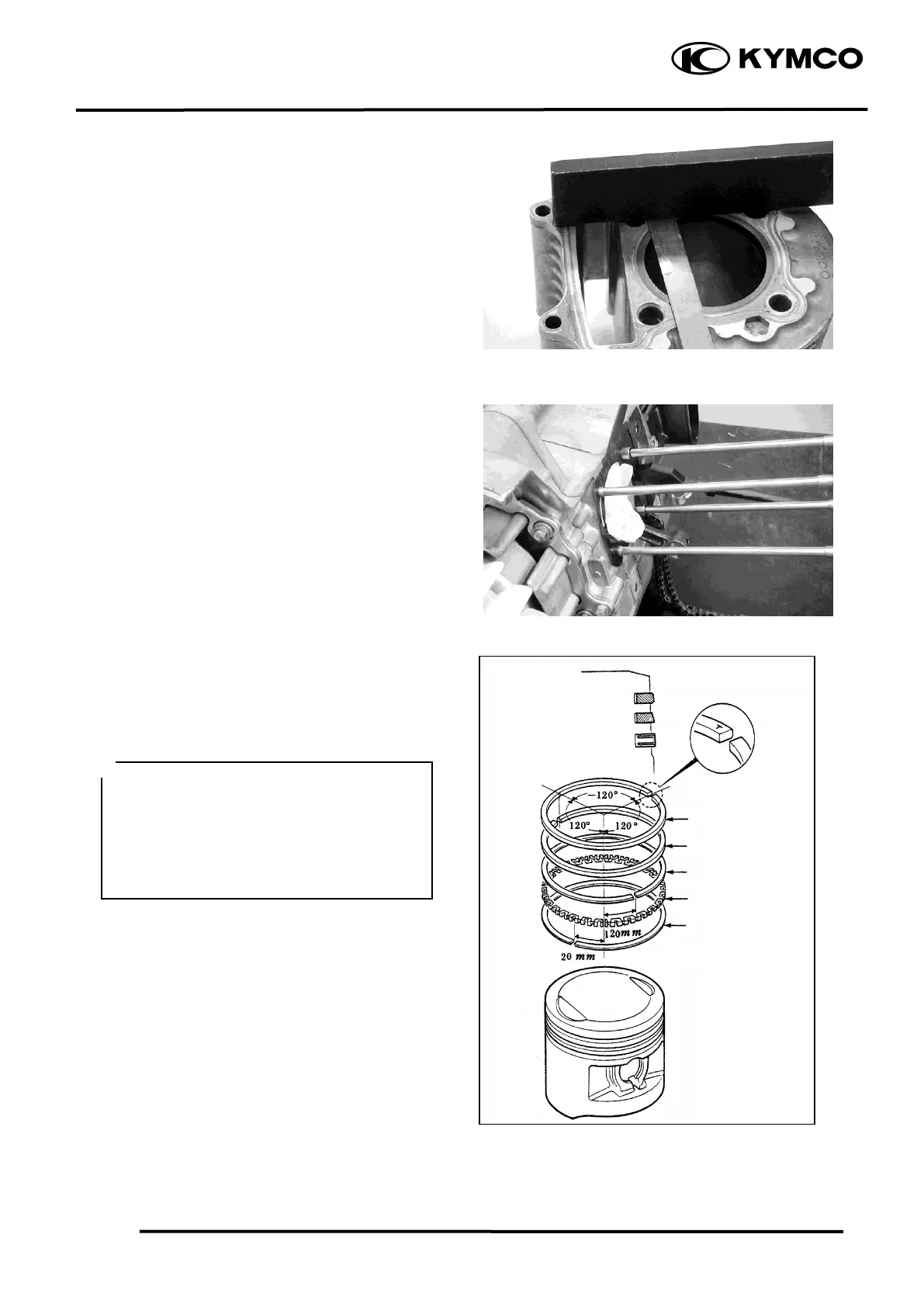

KYMCO Super 8 50 Service Manual

8. CYLINDER/PISTON
8-5
Super 8 50
Inspect the top of the cylinder for warpage.
Service Limit:
0.05mm repair or replace if over
Measure the connecting rod small end I.D.
Service Limit: 13.06mm replace if over
PISTON RING INSTALLATION
Install the piston rings onto the piston.
Apply engine oil to each piston ring.
Second
Side Rail
Top
Side Rail
Oil Ring
 Be careful not to damage or break the
piston and piston rings.
 All rings should be installed with the
markings facing up.
 After installing the rings, they should
rotate freely without sticking.
＊
