3. INSPECTION/ADJUSTMENT
FINAL REDUCTION GEAR OIL
OIL LEVEL CHECK
Stop the engine and remove the oil check bolt.
The oil level shall be at the oil check bolt
hole.
If the oil level is low, add the recommended
oil to the proper level.
Recommended Oil: SAE90#
Install the oil check bolt.
OIL CHANGE
Remove the oil check bolt.
Remove the oil drain bolt and drain the oil
thoroughly.
Install the oil drain bolt.
Torque: 0.8~1.2kgf-m
Fill with the recommended oil.
Oil Capacity: At disassembly : 0.21liter
At change : 0.18 liter
Reinstall the oil check bolt and check for oil
leaks.
Torque:0.8~1.2kgf-m
DRIVE BELT
Remove the left crankcase cover. (
9-2)
Inspect the drive belt for cracks or excessive
wear.
Replace the drive belt with a new one if
necessary and in accordance with the
Maintenance Schedule.

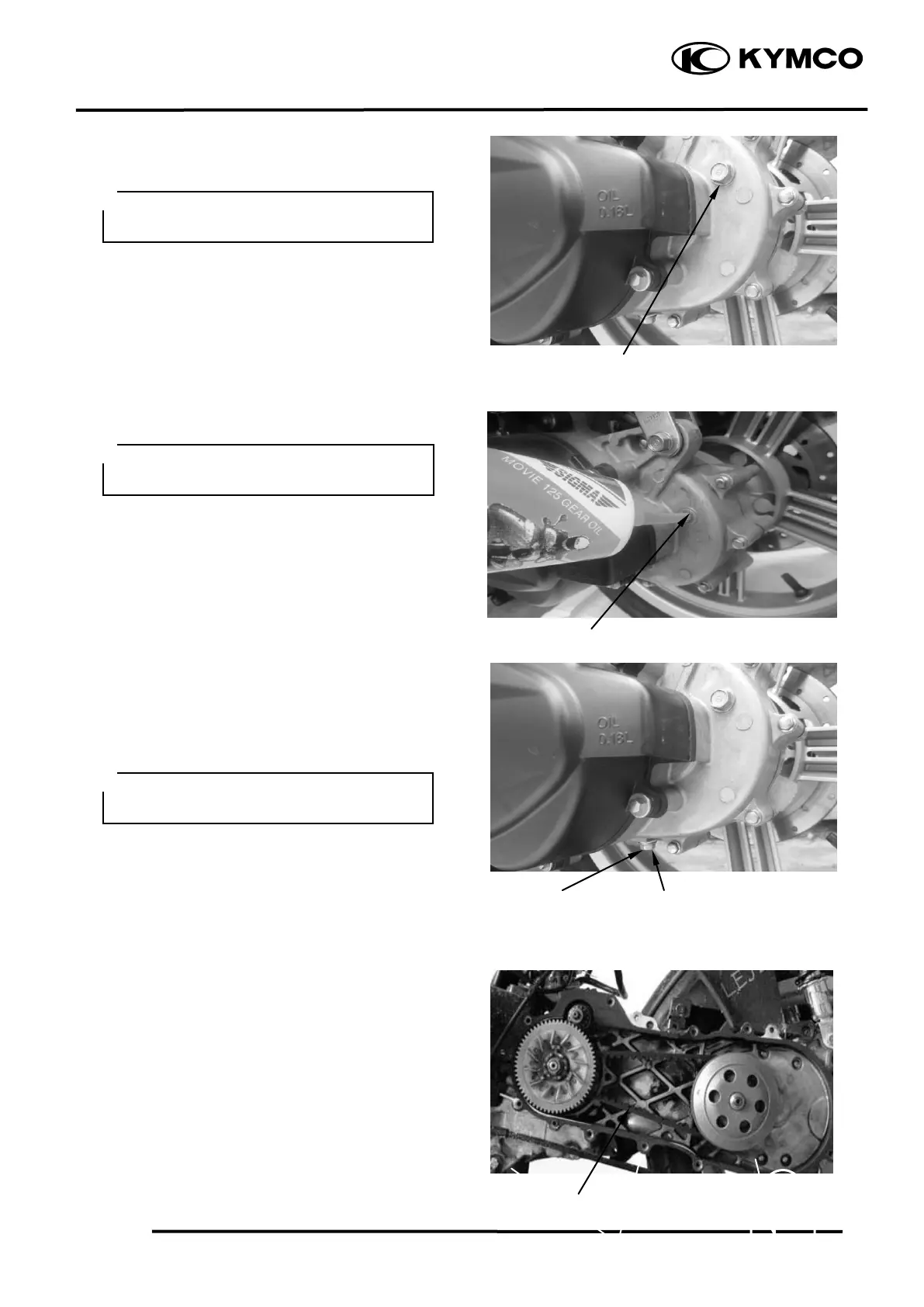

Oil Check Bolt/Sealing Washer
Place the motorcycle on its main stand
on level ground for oil level check.
Make sure that the sealing washer is in
good condition.
Oil Drain Bolt/ Sealing Washer
Make sure that the sealing washer is in
good condition.
