2. FRAME COVERS/EXHAUST MUFFLER
FRAME COVERS

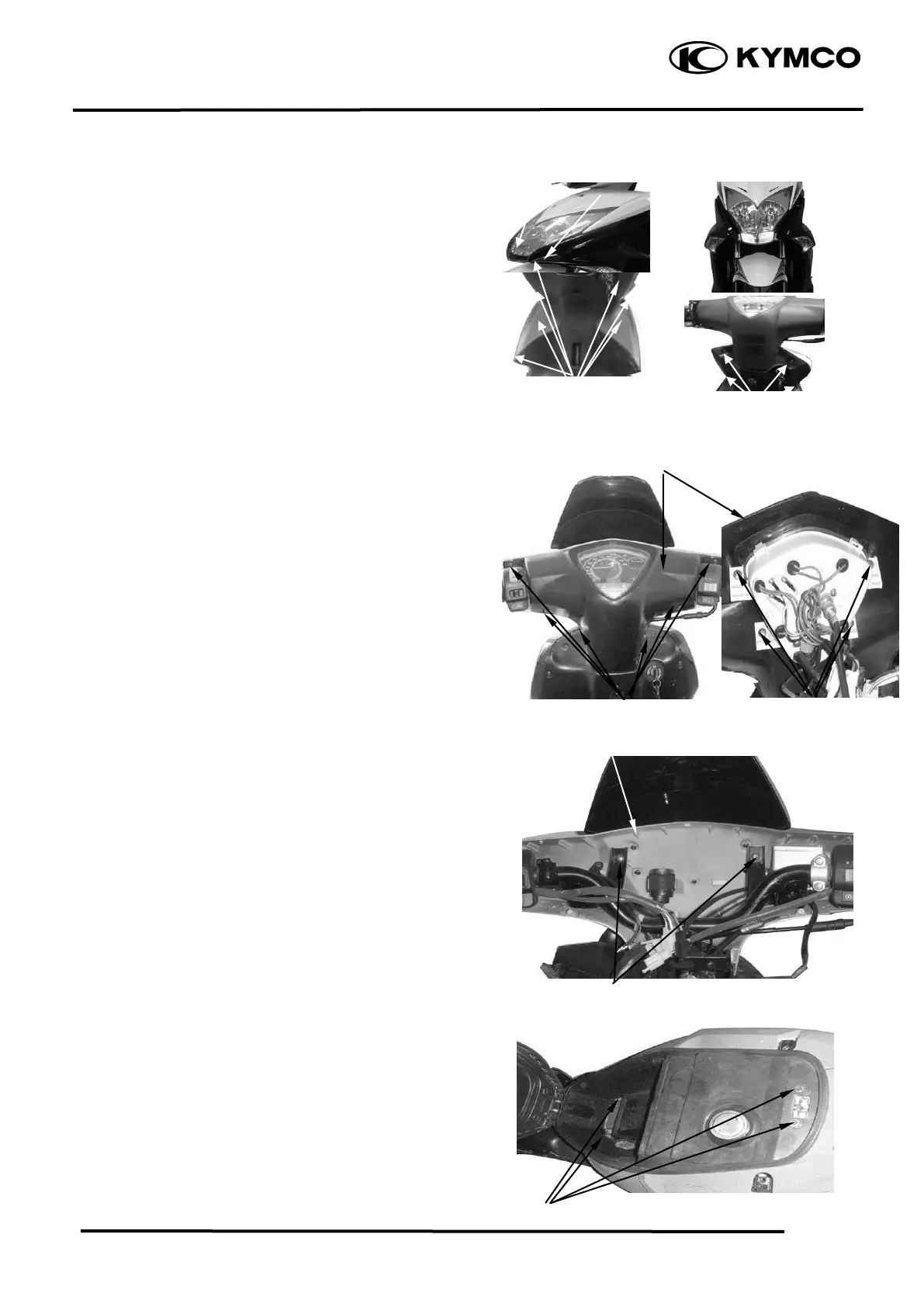

FRONT COVER REMOVAL
Remove the screw on the front cover.
Remove the two screws on the back of the
front cover.
Remove the front cover.
Remove the two bolt and ten screws attaching
the R/L mole side.
Remove the R/L mole side
The installation sequence is the reverse of
removal.
HANDLEBAR REAR COVER
REMOVAL
Remove the handlebar rear cover screw.
Disconnect the speedometer cable, right and
left handlebar switch couplers, and the stop
switch wire connectors.
Remove two screws inside the handlebar rear
cover and remove the handlebar rear cover.
The installation sequence is the reverse of
removal.
HANDLEBAR FRONT COVER
REMOVAL
Remove the bolt attaching the handlebar front
cover.
Remove the handlebar front cover.
MET-IN BOX REMOVAL
Open the seat and remove the four bolt
attaching the met-in box.
Remove the met-in box .
