12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION
12-9
Super 8 50

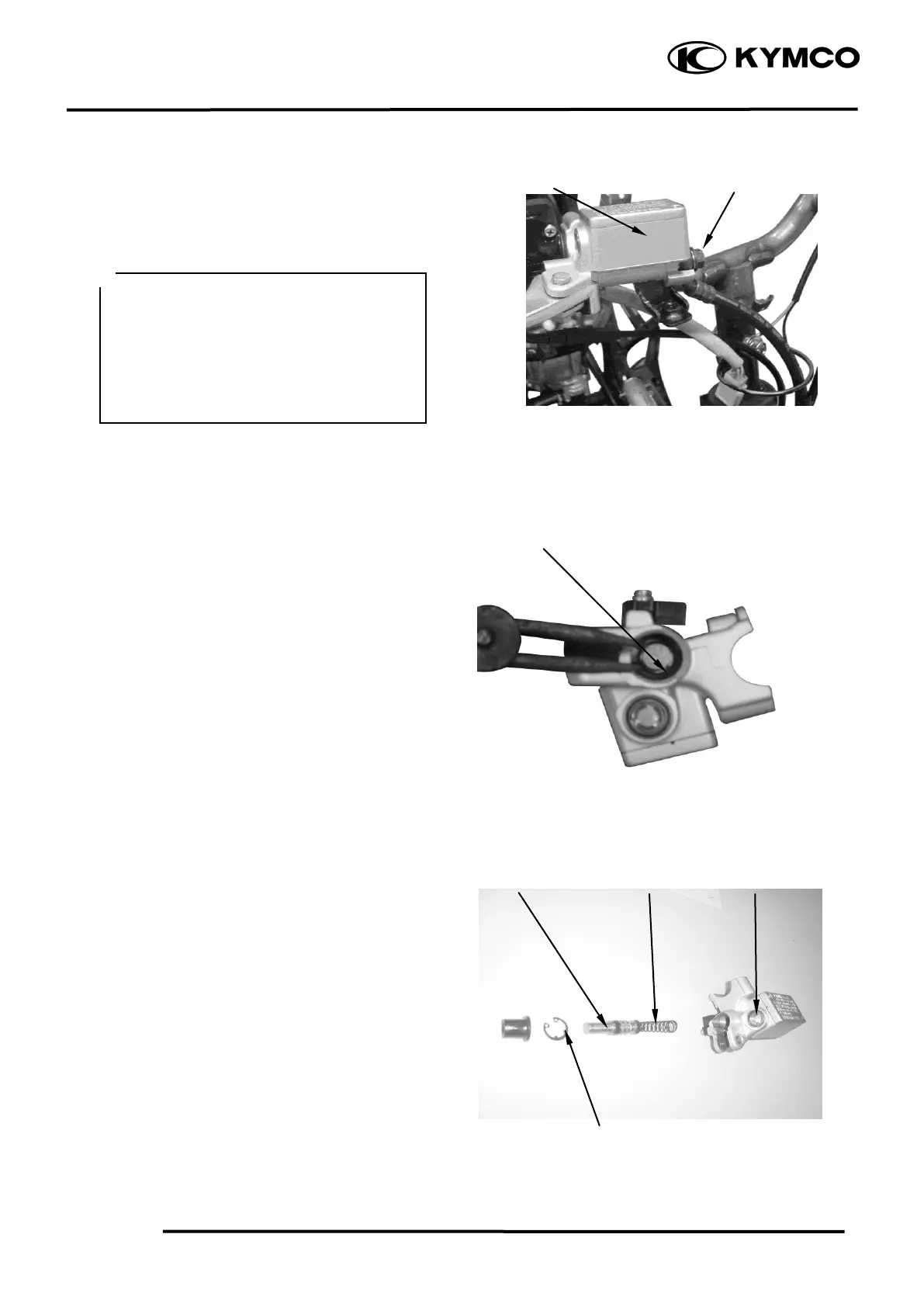

BRAKE MASTER CYLINDER
Removal
First drain the brake fluid from the hydraulic
brake system.
Disassembly
Remove the piston rubber cover and snap ring
from the brake master cylinder.
Remove the washer, main piston and spring
from the brake master cylinder.
Clean the inside of the master cylinder and
brake reservoir with brake fluid.
 When servicing the brake system, use
shop towels to cover rubber and plastic
parts and coated surfaces to avoid
being contaminated by brake fluid.
 When removing the brake fluid pipe
bolt, be sure to plug the pipe to avoid
brake fluid leakage.
＊
Bolts
Brake Master Cylinder
Snap Ring
Main Piston
Spring
Master Cylinder
Snap Ring

KYMCO Super 8 50 Specifications

General

Displacement	49.5 cc
Fuel System	Carburetor
Ignition	CDI
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air
Transmission	CVT Automatic
Seat Height	780 mm
Wheelbase	1, 280 mm
