KYMCO Super 8 50 Service Manual

7. CYLINDER HEAD/VALVES
7-6
Super 8 50

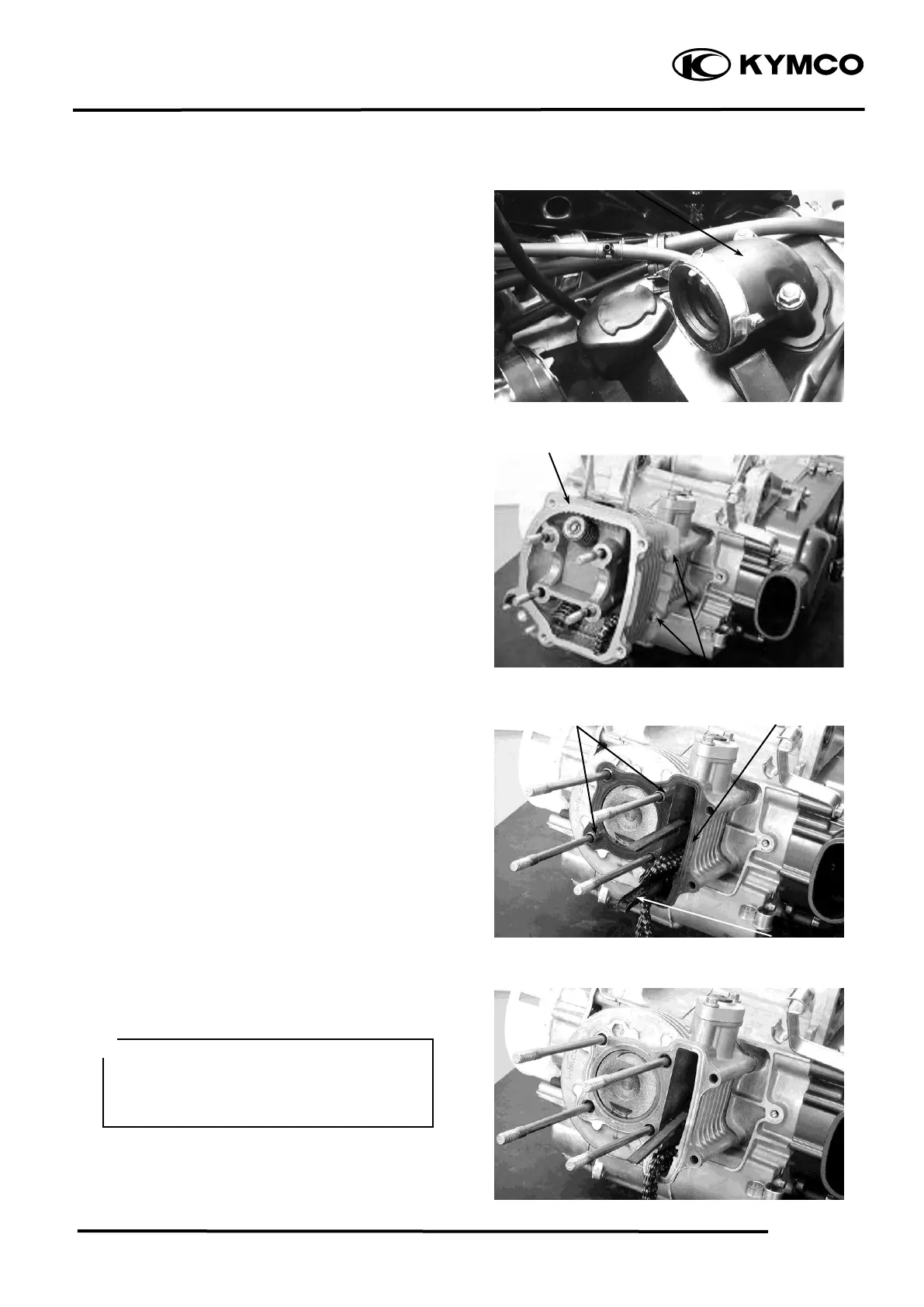

CYLINDER HEAD REMOVE
Remove the camshaft.
Remove the carburetor.
Remove the exhaust muffler.
Remove the carburetor intake manifold.
Remove the cooling fan cover.
Remove the engine cover bolts and screws.
Separate the engine cover joint claws.
Remove the cylinder head.
Remove the dowel pins and cylinder head
gasket.
Remove the cam chain guide.
Remove all gasket material from the
cylinder mating surface.
Cylinder Head
Dowel Pins
Intake Manifold
Cam Chain Guide
Cylinder Head Gasket
Bolts
 Avoid damaging the cylinder mating
surface.
 Be careful not to drop any gasket
material into the engine.
＊

KYMCO Super 8 50 Specifications

General

Displacement	49.5 cc
Fuel System	Carburetor
Ignition	CDI
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air
Transmission	CVT Automatic
Seat Height	780 mm
Wheelbase	1, 280 mm
