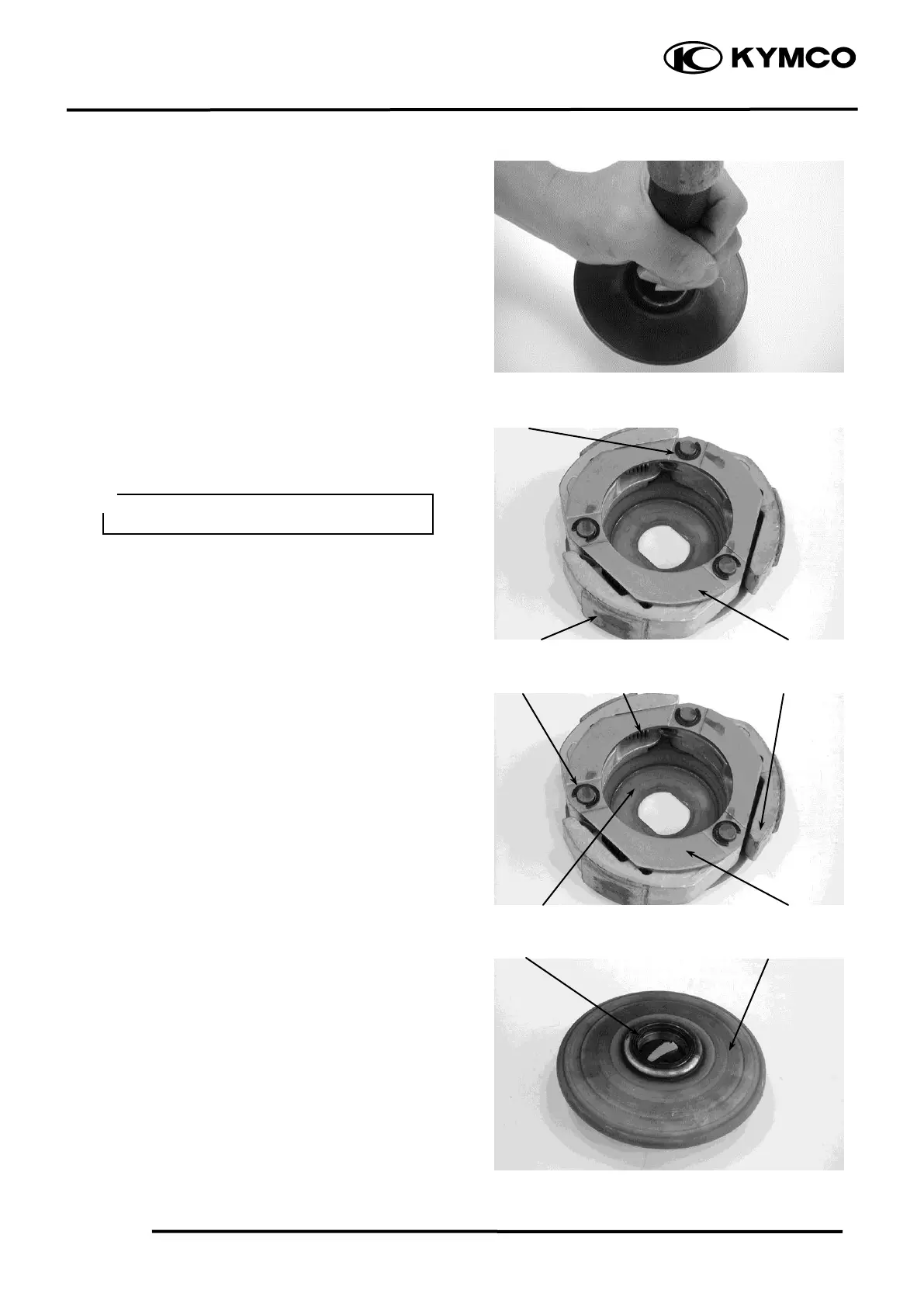

9. DRIVE AND DRIVEN PULLEYS
9-11
Super 8 50
Press a new needle bearing into the driven
face.
CLUTCH DISASSEMBLY
Remove the circlips and retainer plate to
disassemble the clutch.
CLUTCH ASSEMBLY
Install the damper rubbers on the drive plate
pins.
Install the clutch weights/shoes and clutch
springs onto the drive plate.
Install the retainer plate and secure with the
circlips.
CLUTCH/DRIVEN PULLEY ASSEMBLY
Clean the driven pulley faces and remove
any grease from them.
Install the oil seal onto the moveable driven
face.
Apply grease to the O-rings and install them
onto the moveable driven face.
Circlip
Circlip
Oil Seal
Retainer Plate
Retainer Plate
Clutch Lining
Clutch Weights/Shoes
Drive Plate
Springs
Movable Driven Face
Keep grease off the clutch linings.
＊
