KYMCO Super 8 50 Service Manual

5. FUEL INJECTION SYSTEM Super 8 50
5-13
T-MAP(Manifold Air Temperature
Pressure) Sensor

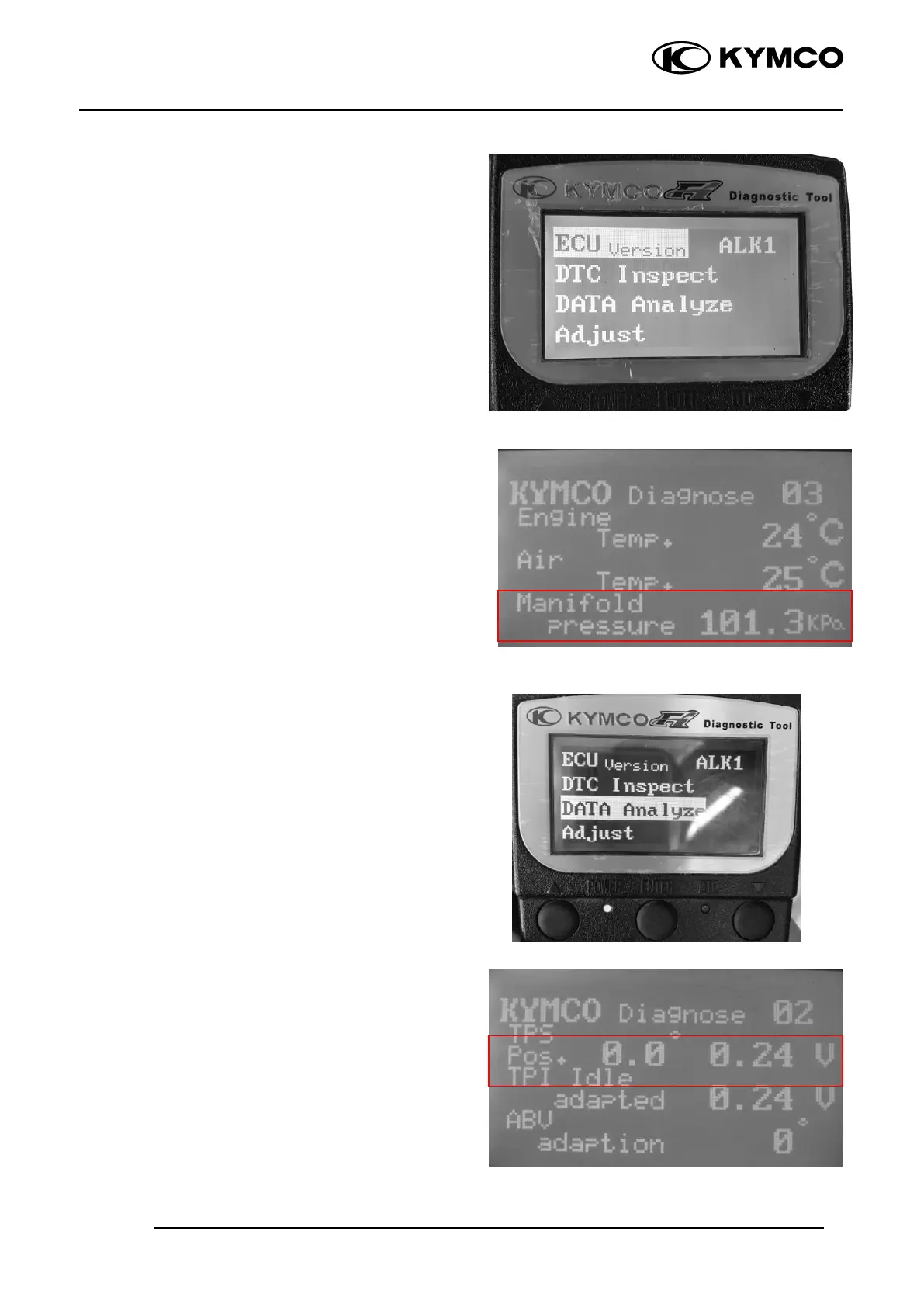

Connect the PDA or Fi diagnostic tool.
Enter the Data Analyze
Check if the manifold pressure data is
malfunction.
Turn the ignition switch to the “ON” position.
If data is incorrect, and the T-map sensor is
problem.
Standard : 101.3 ±3 kpa on sea altitude
The ambient pressure drop is about 12Kpa
according to the altitude raises.
TPS (Throttle Position Sensor)
Enter the Data Analyze
Check if the TPS position data is malfunction.
Turn the ignition switch to the “ON” position.
If data is incorrect even the Idle and throttle fully,
the TPS is problem.
Standard :
Idle ~0 ° 0.23V ±0.05
Throttle fully ~90° > 3.27V
