13. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER
SERVICE INFORMATION
GENERAL INSTRUCTIONS
*When performing the service stated in this section,the engine and exhaust muffler must be cold
to avoid scalding.
*During servicing,keep oil or grease off the brake pads and brake disk.

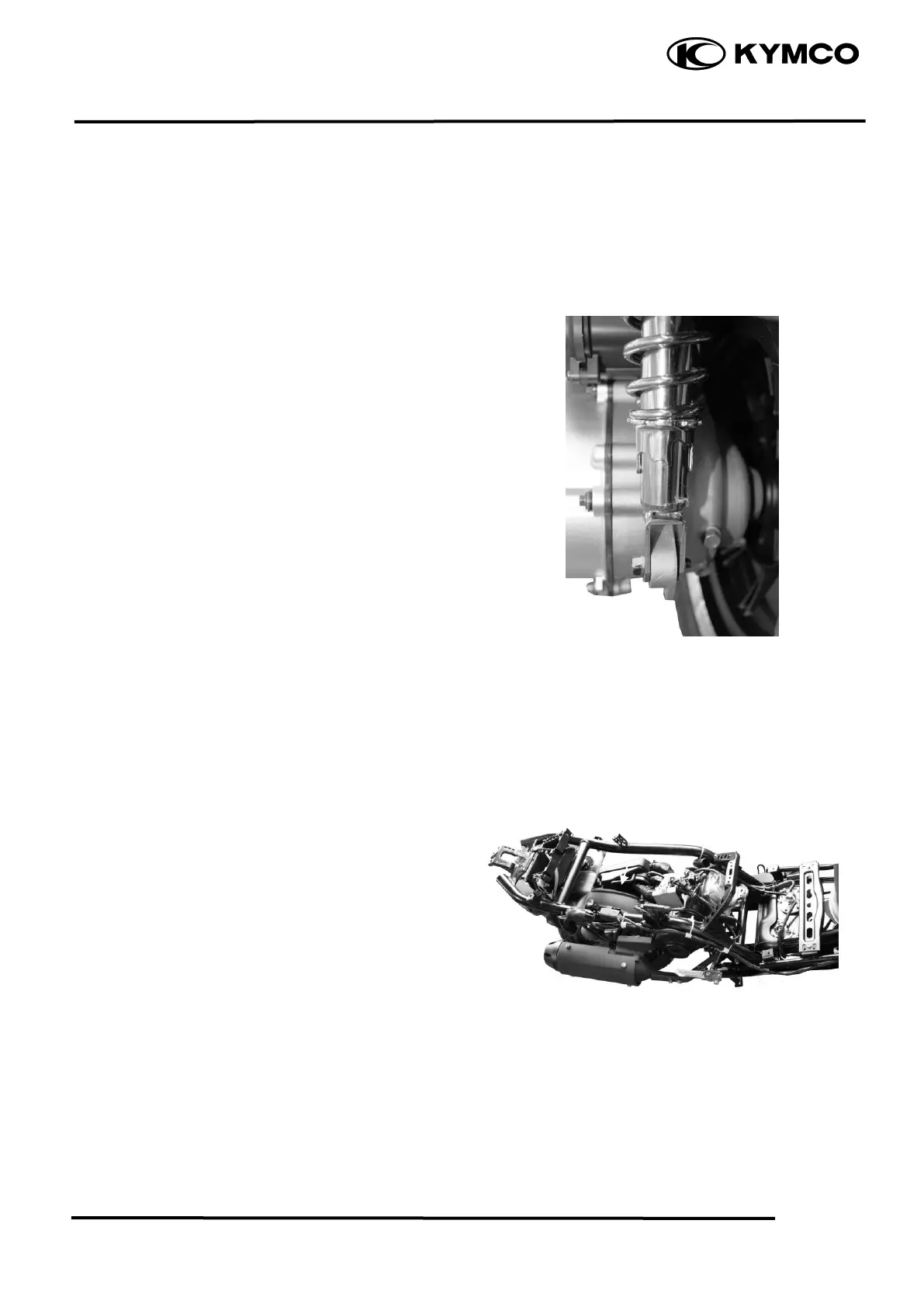

REAR SHOCK ABSORBER REMOVAL
Remove the met-in box.
Remove the frame body cover
Remove the suspension upper mount bolt
Remove the suspension lower mount bolt
Remove the rear shock absorber
INSTALLATION
Install the upper and lower mount bolts.
Install the frame body cover.
Torque:
Upper Mount Bolt: 35～45Nm
Lower Mount Bolt: 24～30Nm
REAR WHEEL REMOVAL
Disconnect the connector of O₂ sensor.
Remove the muffler mount bolts
Remove the muffler.
Remove the rear axle mount bolt
Remove the rear wheel.
INSTALLATION
Install the rear wheel in reverse order of
removal.
Torque:
Rear axle Mount Bolt: 110～130Nm
Muffler Mount Bolts: 35 Nm
Muffler Joint Bolts: 12Nm
To Next Page
