KYMCO Super 8 50 Service Manual

15. IGNITION SYSTEM
4
Super 8 50

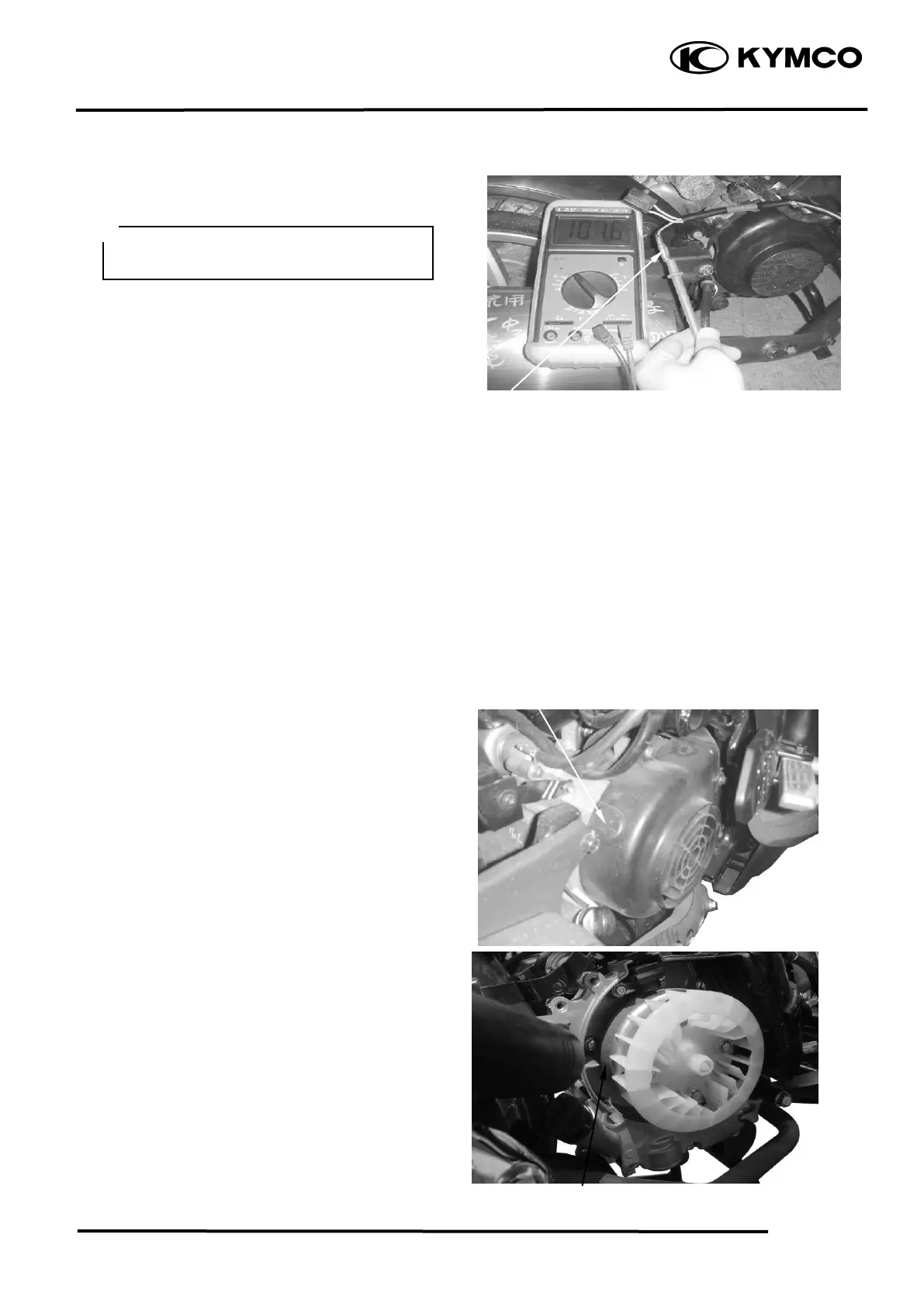

PULSER COIL
INSPECTION
Remove the frame body cover. (

2-3)
Disconnect the A.C. generator connector.
Measure the pulser coil resistance between
the blue/yellow and green wire terminals.
Resistance: 80～160
Refer to page 14-6 for the A.C. generator
removal.
IGNITION TIMING INSPECTION
Remove the timing hole cap.
Warm up the engine and check the ignition
timing with a timing light.
When the engine is running at the ignition
timing is correct if the “F” mark aligns with
the index mark within 2.
Ignition Timing: BTDC28/4000rpm
This test is performed with the stator
installed in the engine.
＊
Timing Hole Cap
“F“ Mark
Pulser Coil Coupler

KYMCO Super 8 50 Specifications

General

Displacement	49.5 cc
Fuel System	Carburetor
Ignition	CDI
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air
Transmission	CVT Automatic
Seat Height	780 mm
Wheelbase	1, 280 mm
