14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
14-8
Super 8 50

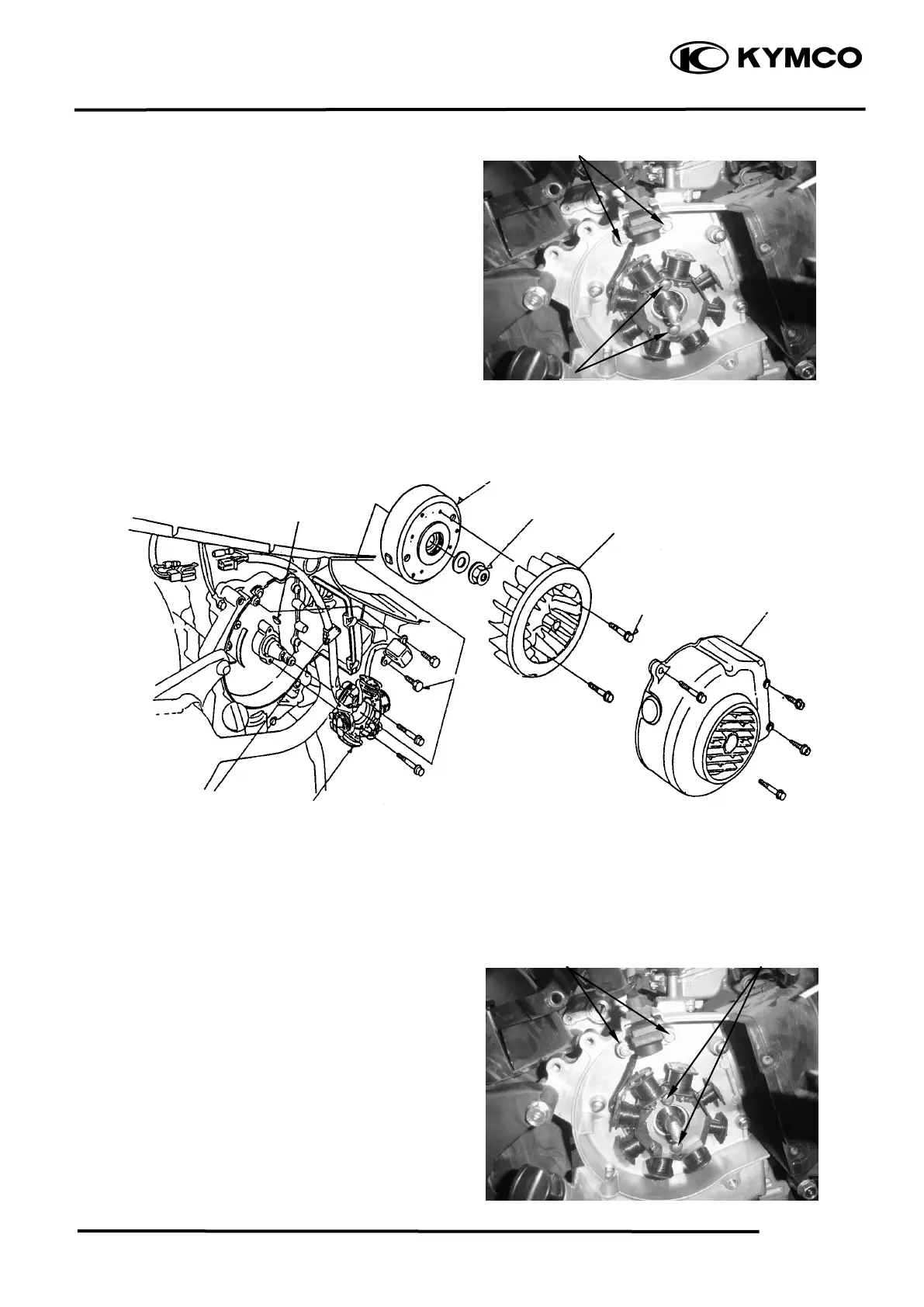

Remove the A.C. generator wire set plate.
Remove the pulser coil bolts.
Remove the A.C. generator wire rubber
sleeve and pulser coil from the right
crankcase.
Remove the two bolts and A.C. generator
stator.
A.C. GNERATOR INSTALLATION
Install the A.C. generator stator and pulser
coil onto the right crankcase.
Tighten the stator and pulser coil bolts.
Torques: Pulser Coil : 0.45~0.6kgf-m
Stator : 0.8~1.2kgf-m
Install the A.C. generator wire rubber sleeve
and A.C. generator wire set plate.
A.C. Generator Wire
Rubber Sleeve
Bolts
Woodruff Key
Flywheel
Cooling Fan
Fan Cover
Stator
Bolts
Bolts
Bolts
5.5kg-m
0.9kg-m
0.5kg-m
