KYMCO Super 8 50 Service Manual

8. CYLINDER/PISTON
8-6
Super 8 50

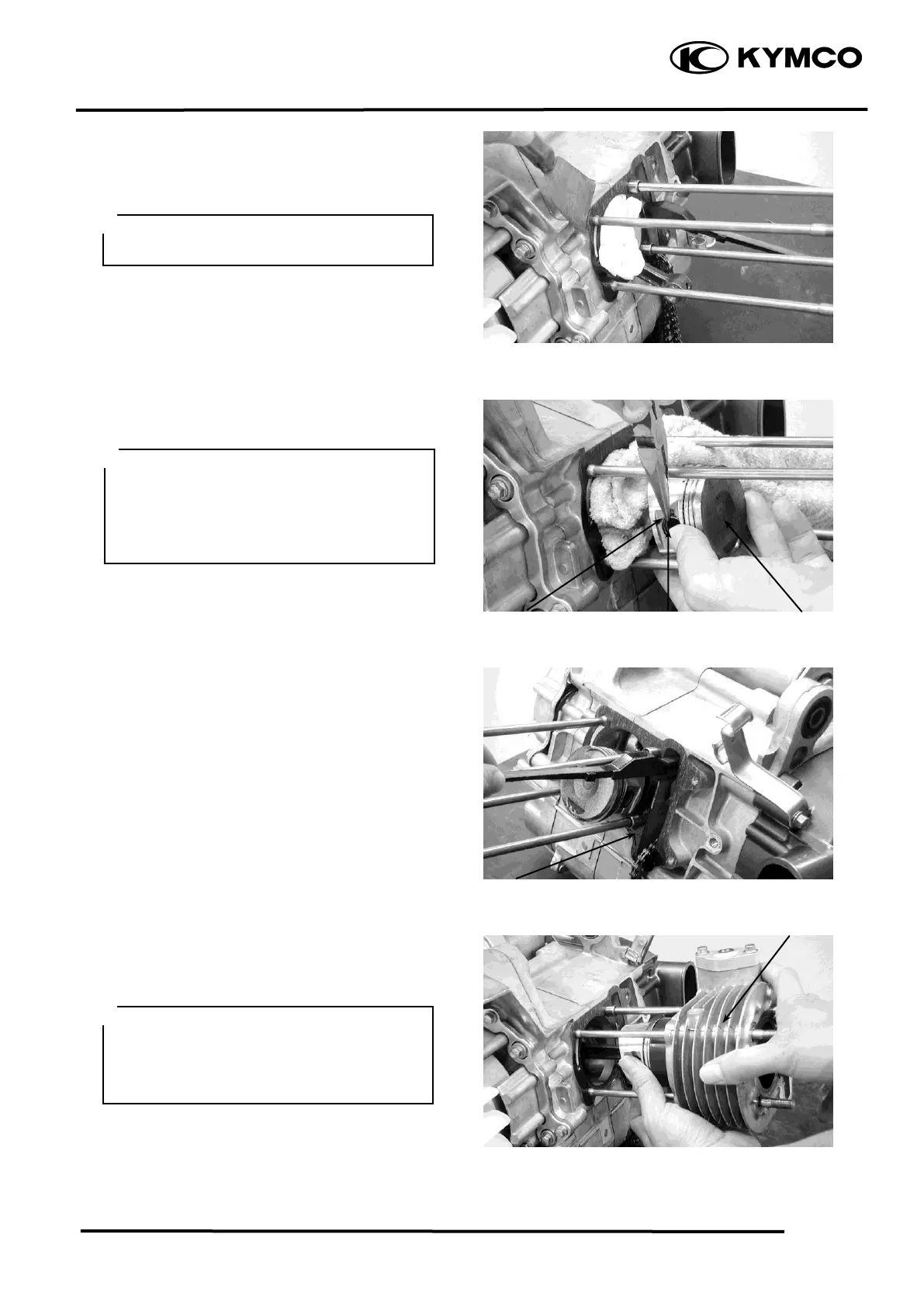

PISTON INSTALLATION
Remove any gasket material from the
crankcase surface.
Install the piston, piston pin and a new piston
pin clip.
CYLINDER INSTALLATION
Install the dowel pins and a new cylinder
gasket on the crankcase.
Coat the cylinder bore, piston and piston rings
with clean engine oil.
Carefully lower the cylinder over the piston
by compressing the piston rings.
Gasket
Cylinder
Be careful not to drop foreign matters
into the crankcase.
＊
Piston Pin
Piston Pin Clip
Piston
 Be careful not to damage or break the
piston rings.
 Stagger the ring end gaps at 120 to the
piston pin.
＊
 Position the piston “IN” mark on the
intake valve side.
 Place a clean shop towel in the
crankcase to keep the piston pin clip
from falling into the crankcase.
＊
