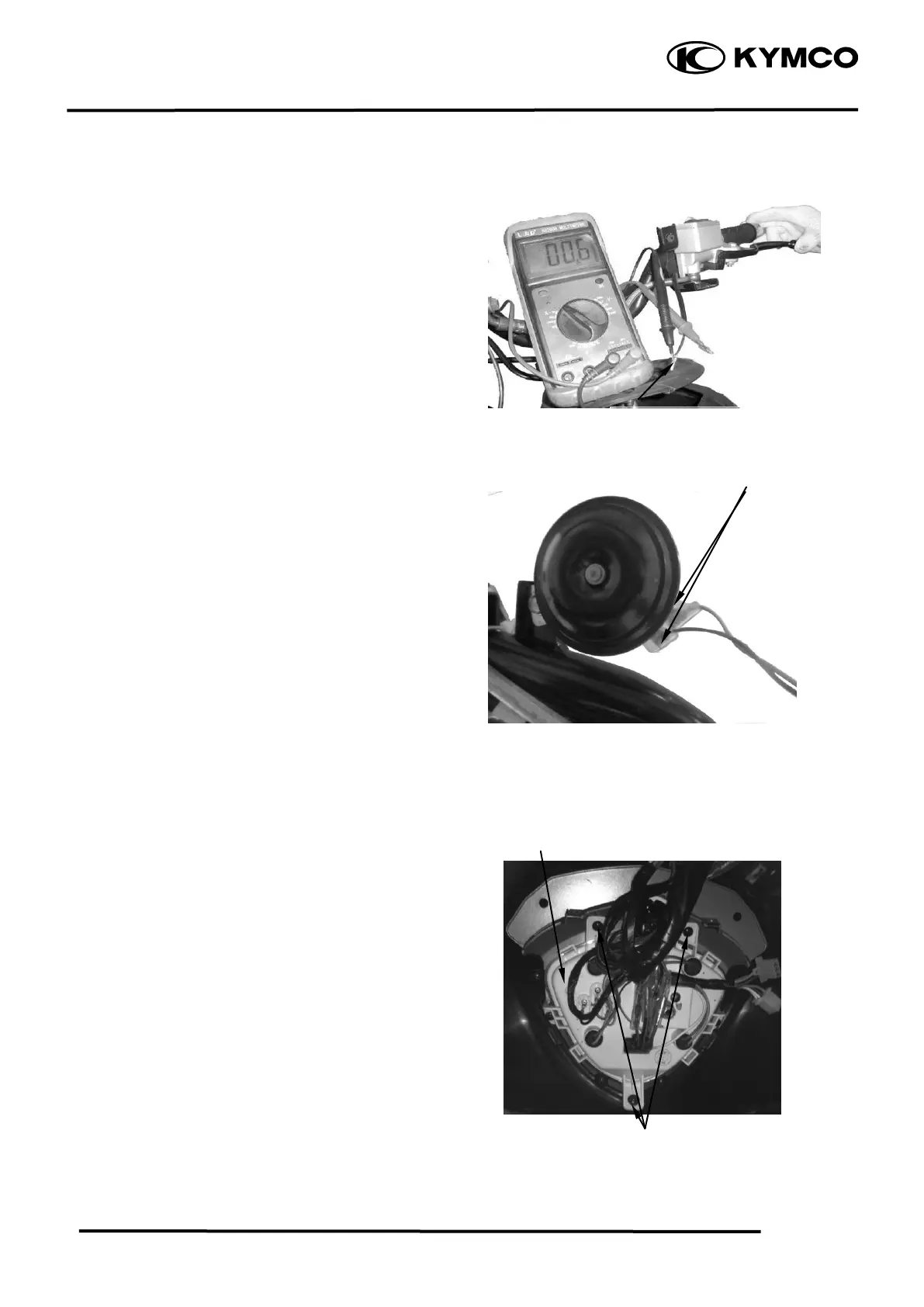

17. LIGHTS/INSTRUMENTS/SWITCHES
STOP SWITCH
INSPECTION
Remove the handlebar front cover. (
2-2)
Disconnect the front stop switch wire coupler.
Check for continuity between the wire
terminals when the front brake lever is
applied. The switch is normal if there is
continuity.
Disconnect the rear stop switch wire coupler.
Check for continuity between the wire
terminals when the rear brake lever is applied.
The switch is normal if there is continuity.
HORN
INSPECTION
Remove the front covers. (
2-2)
Disconnect the horn wire coupler.
The horn is normal if it sounds when a 12V
battery is connected across the horn wire
terminals.
REPLACEMENT
Disconnect the horn wire coupler.
Remover the two bolts attaching the horn.
Remove the horn.
The installation sequence is the reverse of
removal.
INSTRUMENTS
Remove the handlebar front cover. (
2-2)
Remove the handlebar rear cover. (
2-2)
Disconnect the handlebar switch couplers.
Remove the three screws to remove the
instruments.
Install a new horn in the reverse order of
removal.
