KYMCO Super 8 50 Service Manual

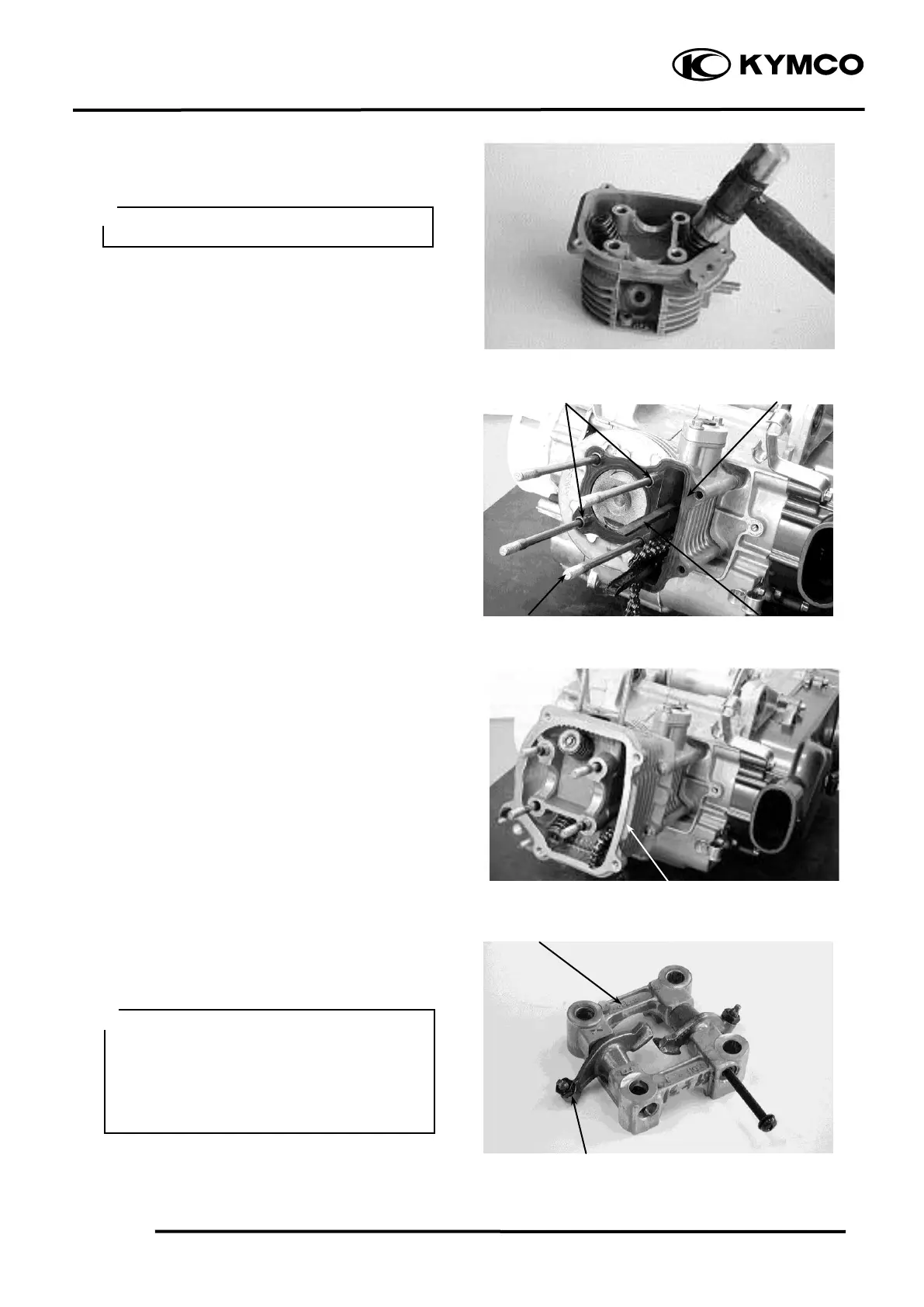

7. CYLINDER HEAD/VALVES
7-9
Super 8 50
Tap the valve stems gently with a plastic
hammer for 2～3 times to firmly seat the
cotters.
CYLINDER HEAD INSTALLATION
Tighten the four stud bolts.
Install the dowel pins and a new cylinder head
gasket.
Install the cam chain guide.
Torque: Stud Bolts :0.7～1.1kg-m
Install the cylinder head.
CAMSHAFT HOLDER ASSEMBLY
Install the exhaust valve rocker arm to the
“EX” mark side of the camshaft holder.
Install the intake valve rocker arm and the
rocker arm shafts.
Gasket
Valve Rocker Arm
Cam Chain Guide
Cylinder Head
Camshaft Holder
Be careful not to damage the valves.
＊
Dowel Pins
Stud Bolts
 Align the cutout on the front end of the
intake valve rocker arm shaft with the
bolt of the camshaft holder.
 Align the cross cutout on the exhaust
valve rocker arm shaft with the bolt of
the camshaft holder.
＊

KYMCO Super 8 50 Specifications

General

Displacement	49.5 cc
Fuel System	Carburetor
Ignition	CDI
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air
Transmission	CVT Automatic
Seat Height	780 mm
Wheelbase	1, 280 mm
