Commissioning
Selecting the operating mode/control structure
6

126
EDBCSXS064 EN 4.0
6.10 Selecting the operating mode/control structure
For frequent applications, the controller−internal signal processing is saved in basic
configurations hich can be selected via C3005:
ƒ Speed control:
Code Value Interfaces Application
examples
Functional
description
C3005
1000 Activation/setpoint via analog input  127
 318
1003 Control / setpoint via AIF  130
1005 Control / setpoint via MotionBus (CAN)  132
ƒ Torque control:
Code Value Interfaces Application
examples
Functional
description
C3005
4000 Activation/setpoint via analog input  134
 343
4003 Control / setpoint via AIF  137
4005 Control / setpoint via MotionBus (CAN)  139
 Stop!
When the internal control structure is changed, another terminal assignment
may result!
In the GDC the code C3005 can be found in the parameter menu under
ƒ Short setup  Speed (for speed control).
ƒ Short setup  Torque (for torque control).
ECSXA305

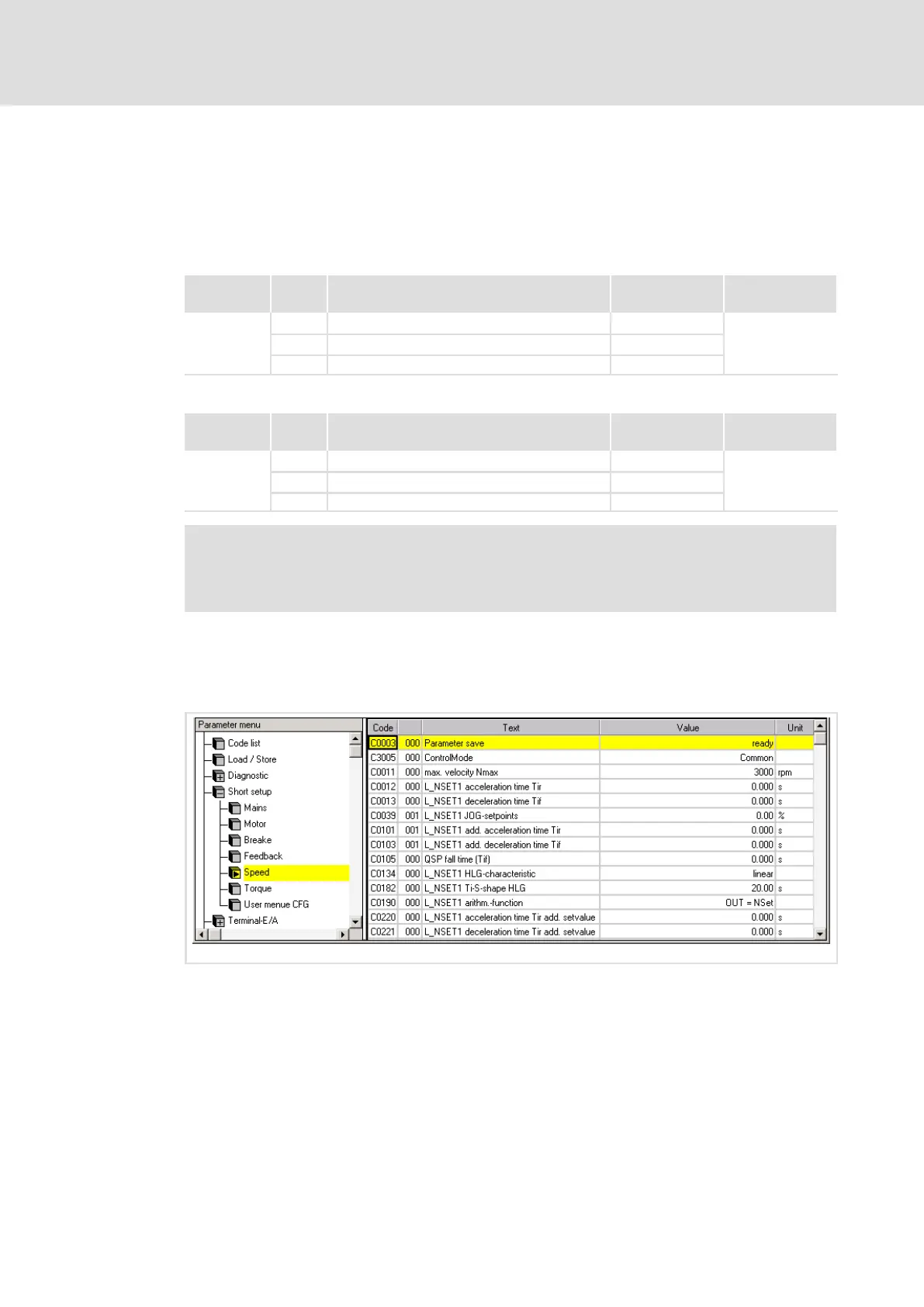

Fig. 6−8 GDC view: short setup of the speed control ("Speed")
