12.8 AIn1
Function
This function block provides the interface for analog input signals (differential signals) via
X6/AI−, AI+. The conditioned input signal is available at the function block output. When
using X6/AI−, AI+ as a master current input, cable−break monitoring is possible.
AI-
AI+
AG
X6
AIn1
C0034
C0026/1
C0027/1
920
920
C0400
AIn1-Out
AIn1-Error
ECSXA221

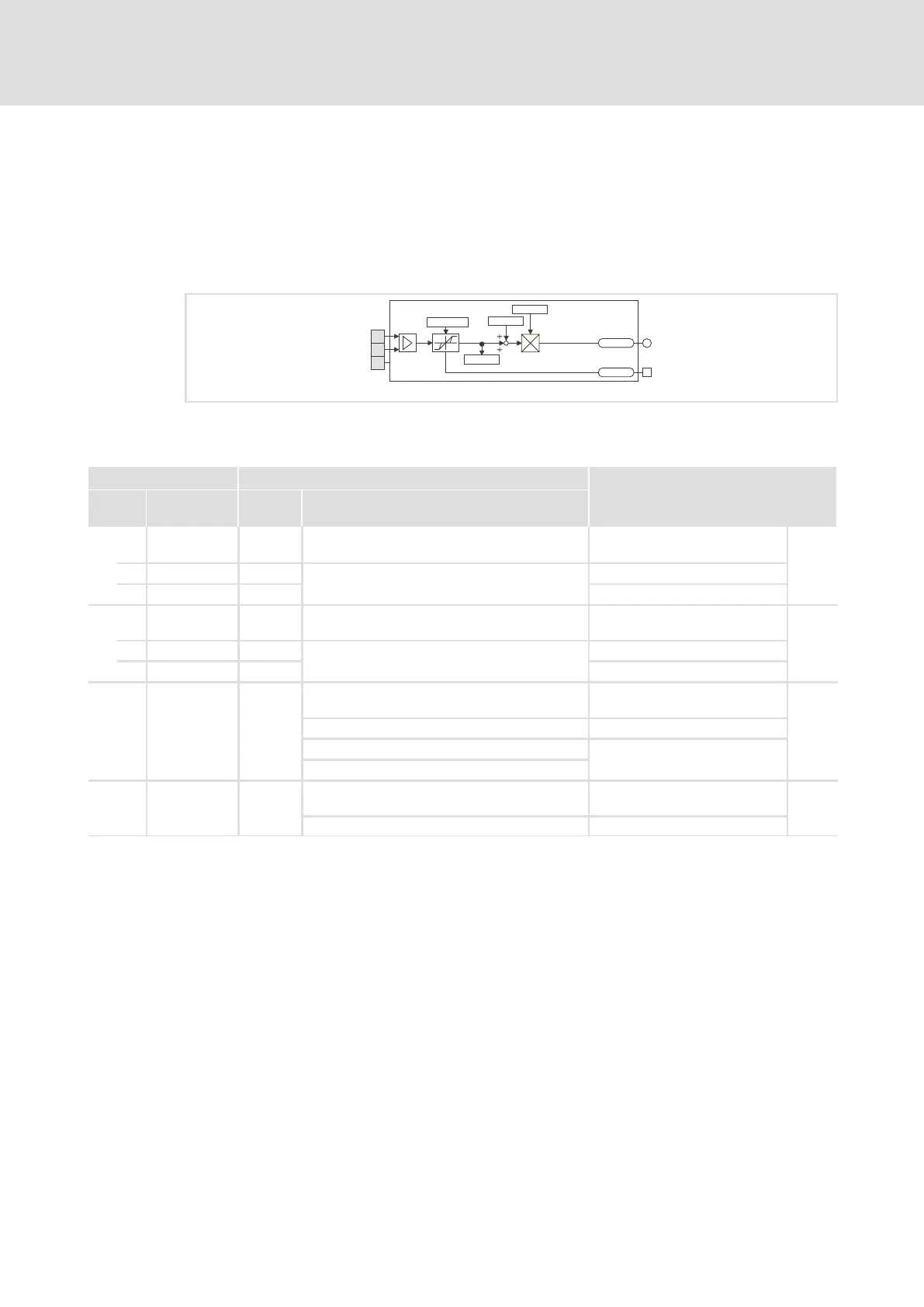

Fig. 12−8 AIn1 function block
Codes
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C0026 Offset for relative analog signals
(AIN)
 266
 309
1 FCODE(offset) 0,0 −199,99 {0.01 %} 199,99 FCODE_nC26_1_a
2 FCODE(offset) 0,0 FCODE_nC26_2_a
C0027 Gain for relative analog signals
(AIN)
 266
 309
1 FCODE(gain) 100,0 −199,99 {0.01 %} 199,99 FCODE_nC27_1_a
2 FCODE(gain) 100,0 FCODE_nC27_2_a
C0034 Mst current 0
Master voltage/master current
on analog input (AIN1_nIn_a)
 266
0 −10 ... + 10 V Master voltage
1 +4 ... +20 mA
Master current
2 −20 ... +20 mA
C0400 DIS: AnalogIn
Signal at the analog input
Read only
 266
−199.99 {0.01 %} 199.99
