12.7 AIF3Out
Function
This function block provides the interface for output signals (e. g. setpoint and actual
values) to the attached fieldbus module.
 Please read the documentation for the connected fieldbus module.
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
16 Bit
16 Bit
C6156
0
0
1
1
C6151/3
C6131/10
C6131/11
C6131/12
C6131/9
AIF3Out
C6130/10
C6130/11
C6130/12
C6150/3
C6130/9
X1
AIF3Out-W1
AIF3Out-W0
AIF3Out-W3
AIF3Out-W0/W1
AIF3Out-W2
ECSXA206

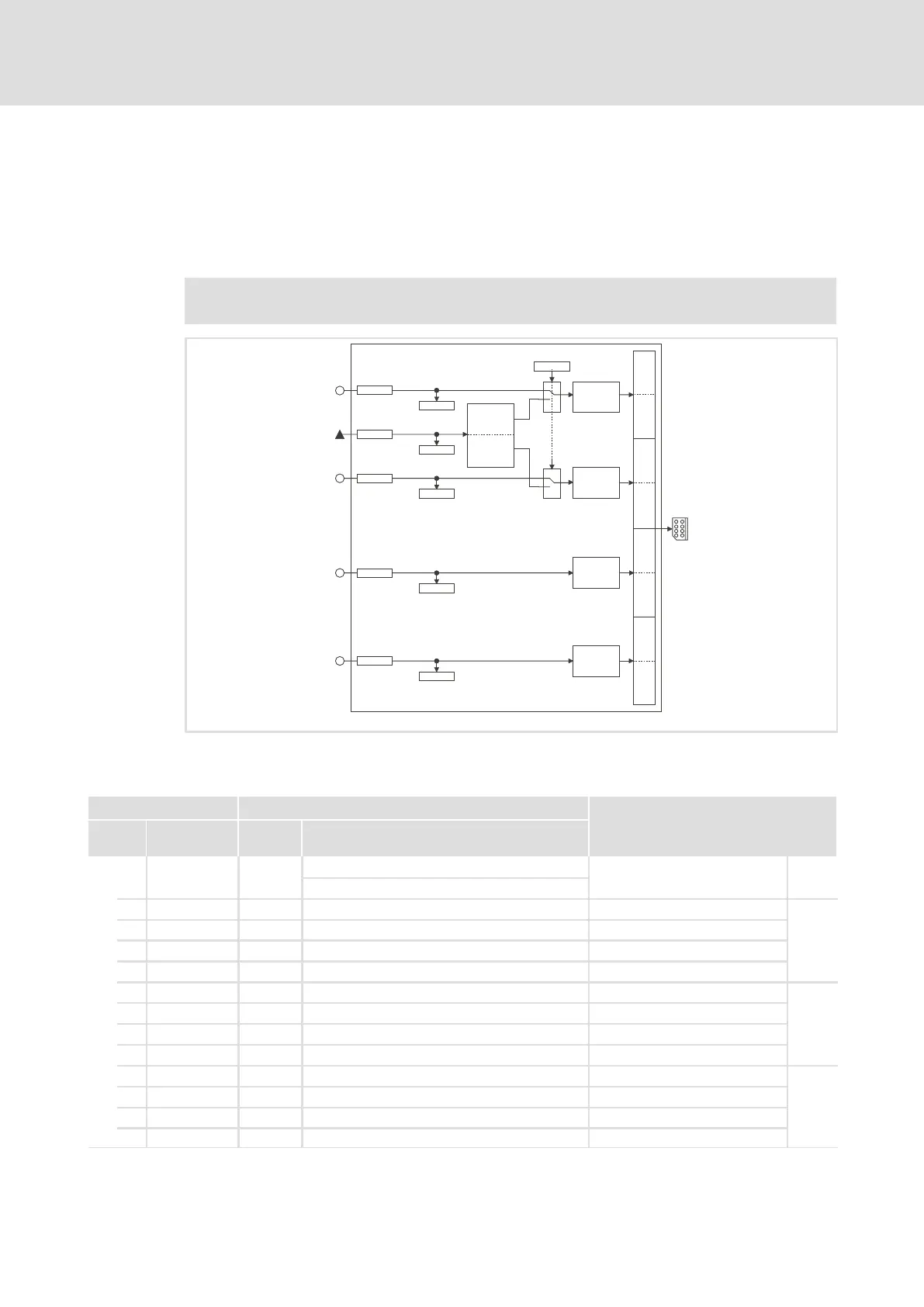

Fig. 12−7 AIF3Out function block
Codes
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C6130 Display of the analog output
signals to the fieldbus module
−32768 {1} 32767
1 AIF−AnOut Output word AIF1Out−DctrlStat
 251
2 AIF−AnOut Output word AIF1Out−W1
3 AIF−AnOut Output word AIF1Out−W2
4 AIF−AnOut Output word AIF1Out−W3
5 AIF−AnOut Output word AIF2Out−W0
 258
6 AIF−AnOut Output word AIF2Out−W1
7 AIF−AnOut Output word AIF2Out−W2
8 AIF−AnOut Output word AIF2Out−W3
9 AIF−AnOut Output word AIF3Out−W0
 263
10 AIF−AnOut Output word AIF3Out−W1
11 AIF−AnOut Output word AIF3Out−W2
12 AIF−AnOut Output word AIF3Out−W3
