Configuration8
168
EDBCSXS064 EN 4.0
8 Configuration
By configuring the axis module you can adapt the drive system to your application. The axis
module can be configured via the following interfaces:
ƒ X1 ˘ AIF (automation interface)
For connection of the keypad XT or communication modules ( 463) which serve
to access the codes.
ƒ X14 ˘ system bus interface (CAN−AUX)
PC interface/HMI for parameter setting and diagnostics (e.g. with the Lenze
parameter setting and operating program "Global Drive Control")
or
Interface to a decentralised I/O system
X4
4
5
X4
X14
X4
X14
X4
X14
Systembus (CAN)
MotionBus (CAN)
YZ
y
z
T
V
S
U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
X1 X1
X4
X14
X1 X1
0
1
3
X1
2
ECSXA028

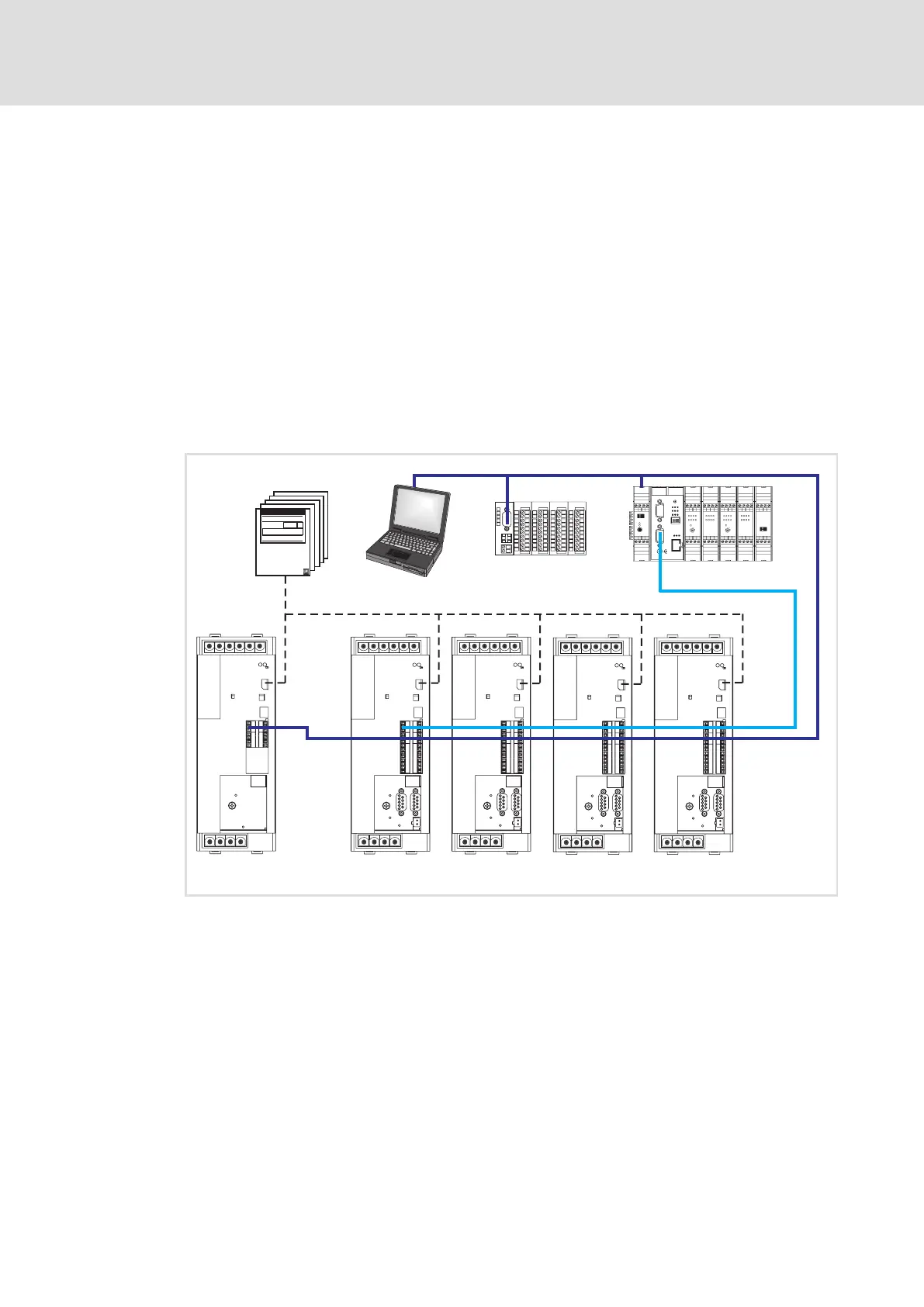

Fig. 8−1 Example: Wiring of the MotionBus (CAN) and system bus (CAN)
Keypad XT or another communication module
PC/laptop or HMI
Decentralised I/O system
Higher−level host system / MotionBus control
ECSxE... power supply module
ECSxS/P/M/A... axis module
