12.5 AIF2Out
Function
This function block provides the interface for output signals (e. g. setpoint and actual
values) to the attached fieldbus module.
 Please read the documentation for the connected fieldbus module.
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
16 Bit
16 Bit
C6155
0
0
1
1
C6151/2
C6131/6
C6131/7
C6131/8
C6131/5
AIF2Out
C6130/6
C6130/7
C6130/8
C6150/2
C6130/5
X1
AIF2Out-W1
AIF2Out-W0
AIF2Out-W3
AIF2Out-W0/W1
AIF2Out-W2
ECSXA204

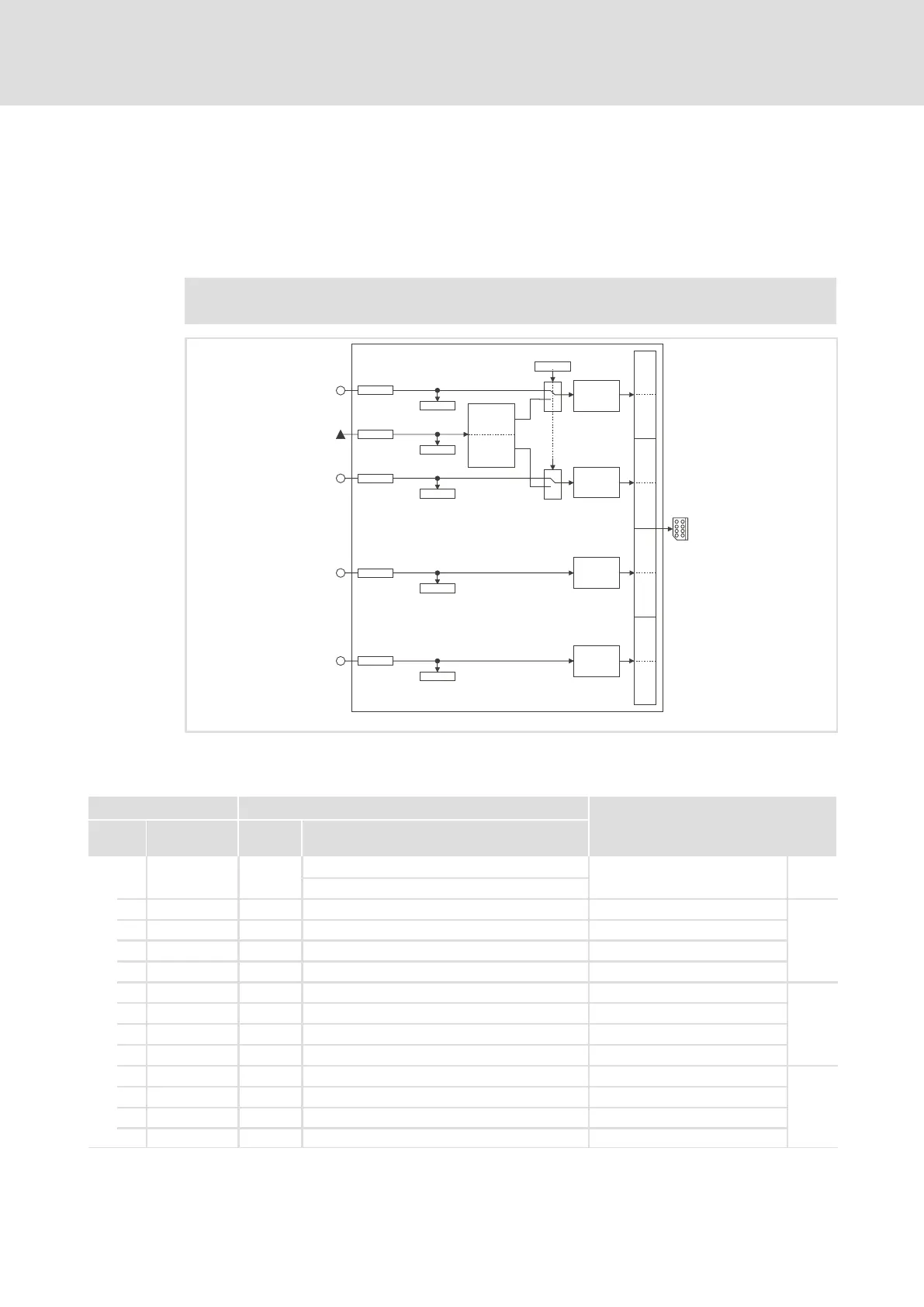

Fig. 12−5 AIF2Out function block
Codes
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C6130 Display of the analog output
signals to the fieldbus module
−32768 {1} 32767
1 AIF−AnOut Output word AIF1Out−DctrlStat
 251
2 AIF−AnOut Output word AIF1Out−W1
3 AIF−AnOut Output word AIF1Out−W2
4 AIF−AnOut Output word AIF1Out−W3
5 AIF−AnOut Output word AIF2Out−W0
 258
6 AIF−AnOut Output word AIF2Out−W1
7 AIF−AnOut Output word AIF2Out−W2
8 AIF−AnOut Output word AIF2Out−W3
9 AIF−AnOut Output word AIF3Out−W0
 263
10 AIF−AnOut Output word AIF3Out−W1
11 AIF−AnOut Output word AIF3Out−W2
12 AIF−AnOut Output word AIF3Out−W3
