Lenze ECSES Series User Manual

Function library
AIF2In
12

256
EDBCSXS064 EN 4.0
12.4 AIF2In
Function
This function block serves as an interface for input signals (e. g. setpoint and actual values)
from the attached fieldbus module.
 Please read the documentation for the connected fieldbus module.
16 Bit
16 binary
signals
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
16 Bit
16 binary
signals
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
AIF2In
16 Bit
LowWord
16 Bit
HighWord
22
14
67
82
15
83
98
11
16
17
X1
...
...
AIF2In-Bit0
AIF2In-Bit15
AIF2In-W0
AIF2In-Bit16
AIF2In-Bit31
AIF2In-W1
AIF2In-W2
AIF2In-W0/W1
AIF2In-W3
AIF2In-W2/W3
ECSXA203

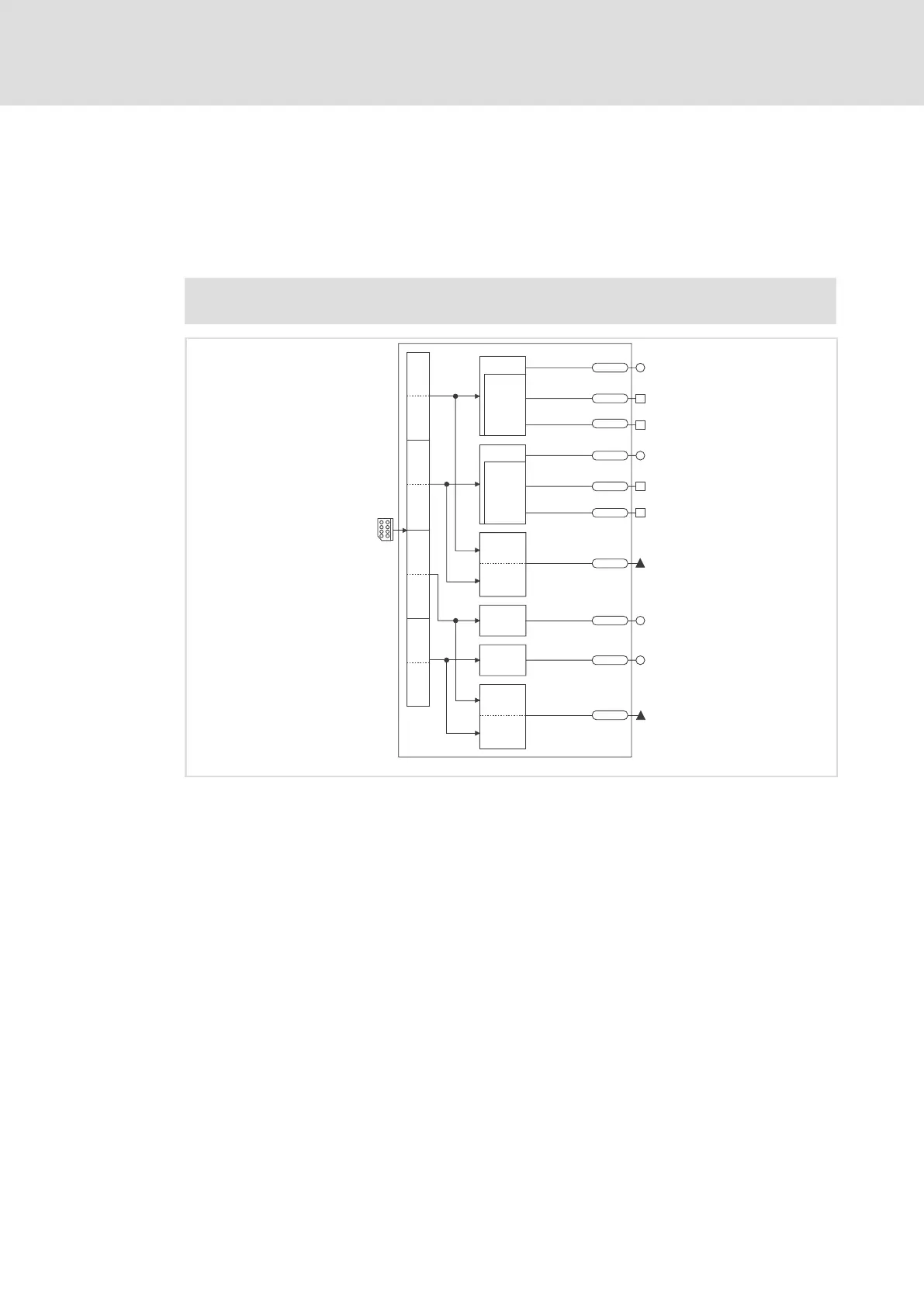

Fig. 12−4 AIF2In function block
