Lenze ECSES Series User Manual

Function library
OutNeg
12

315
EDBCSXS064 EN 4.0
12.25 OutNeg
Function
This function block serves to invert the output signals. The function block can invert digital,
analog and phase signals.
ƒ The values of the analog signals are in a decimal range of ±32767.
ƒ The values of the phase signals are in a decimal range of ±2147483648.
The values are calculated before the selected main function block is calculated. Thus the
calculated values are made available to the subsequent blocks in the current cycle.
OutNeg
C7230/1
32767
-32767
-1
C7230/2
32767
-32767
-1
C7250/1
2147483647
-2147483647
-1
C7210/1
-1
C7210/2
-1
C7210/3
-1
C7250/2
2147483647
-2147483647
-1
C7231/1
C7231/2
C7211/1
C7211/2
C7211/3
C7251/1
C7251/2
671
672
671
672
673
671
672
OutNeg-AnIn1
OutNeg-AnIn2
OutNeg-PhiIn1
OutNeg-DigIn1
OutNeg-DigIn2
OutNeg-DigIn3
OutNeg-PhiIn2
OutNeg-AnOut1
OutNeg-AnOut2
OutNeg-PhiOut1
OutNeg-DigOut1
OutNeg-DigOut2
OutNeg-DigOut3
OutNeg-PhiOut2
ECSXA252

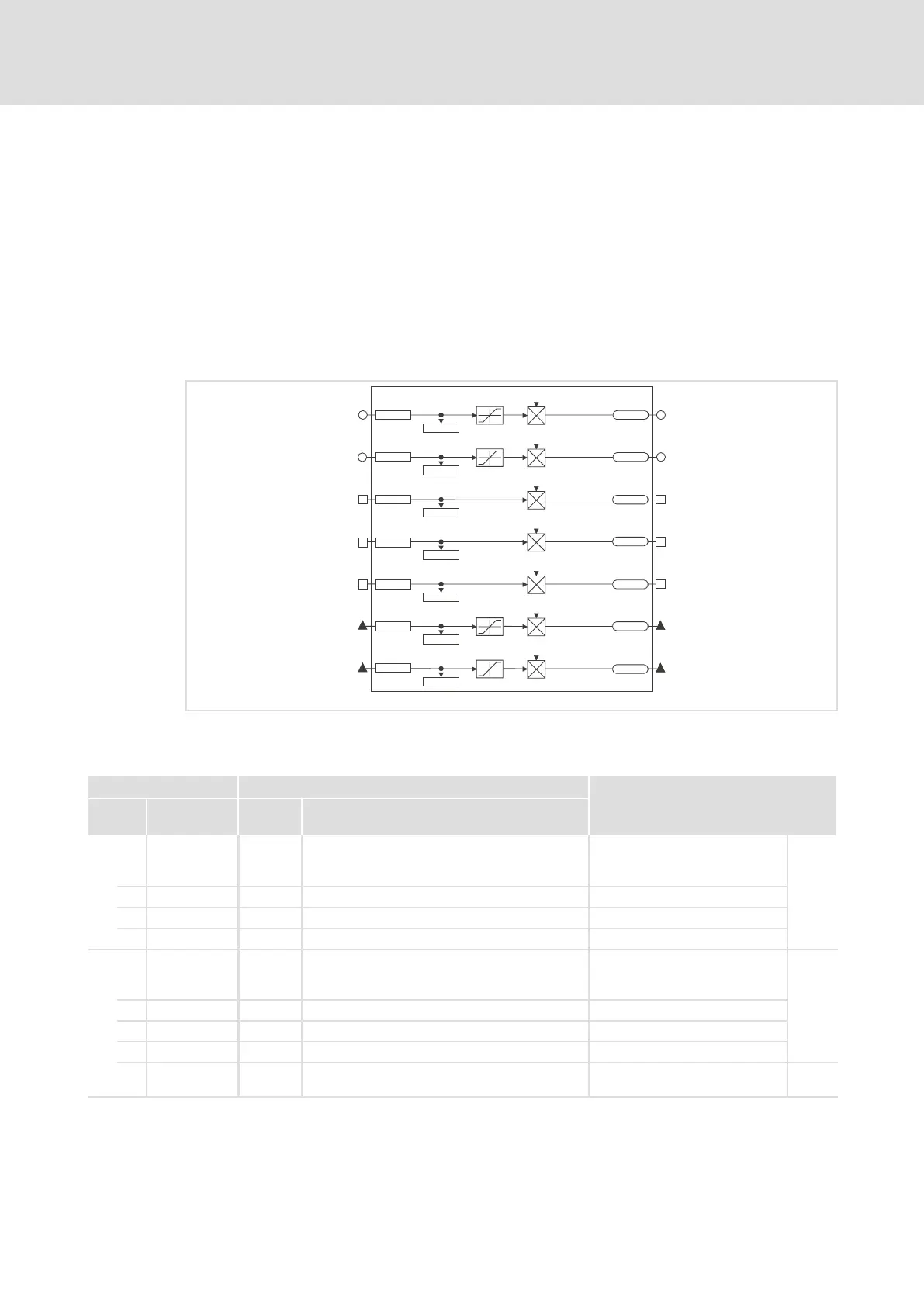

Fig. 12−26 OutNeg function block
Codes
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C7210 Display of the digital input
signals in the OutNeg function
block (signal inversion)
 315
1 OutNeg−digV OutNeg−DigIn1
2 OutNeg−digV OutNeg−DigIn2
3 OutNeg−digV OutNeg−DigIn3
C7211 Selection of the digital input
signals for the OutNeg function
block (signal inversion)
 315
1 OutNeg−dig 1000 0 (FALSE, not assigned) Source for OutNeg−DigIn1
2 OutNeg−dig 1000 0 (FALSE, not assigned) Source for OutNeg−DigIn2
3 OutNeg−dig 1000 0 (FALSE, not assigned) Source for OutNeg−DigIn3
For possible signals see "selection list − digital
signals"
 428
