10 Diagnostics
10.1 Diagnostics with Global Drive Control (GDC)
In order to diagnose the current controller operation, click Diagnostics Actual info in the
GDC parameter menu. The table which appears then shows the current motor data,
operating times, error messages, etc.:

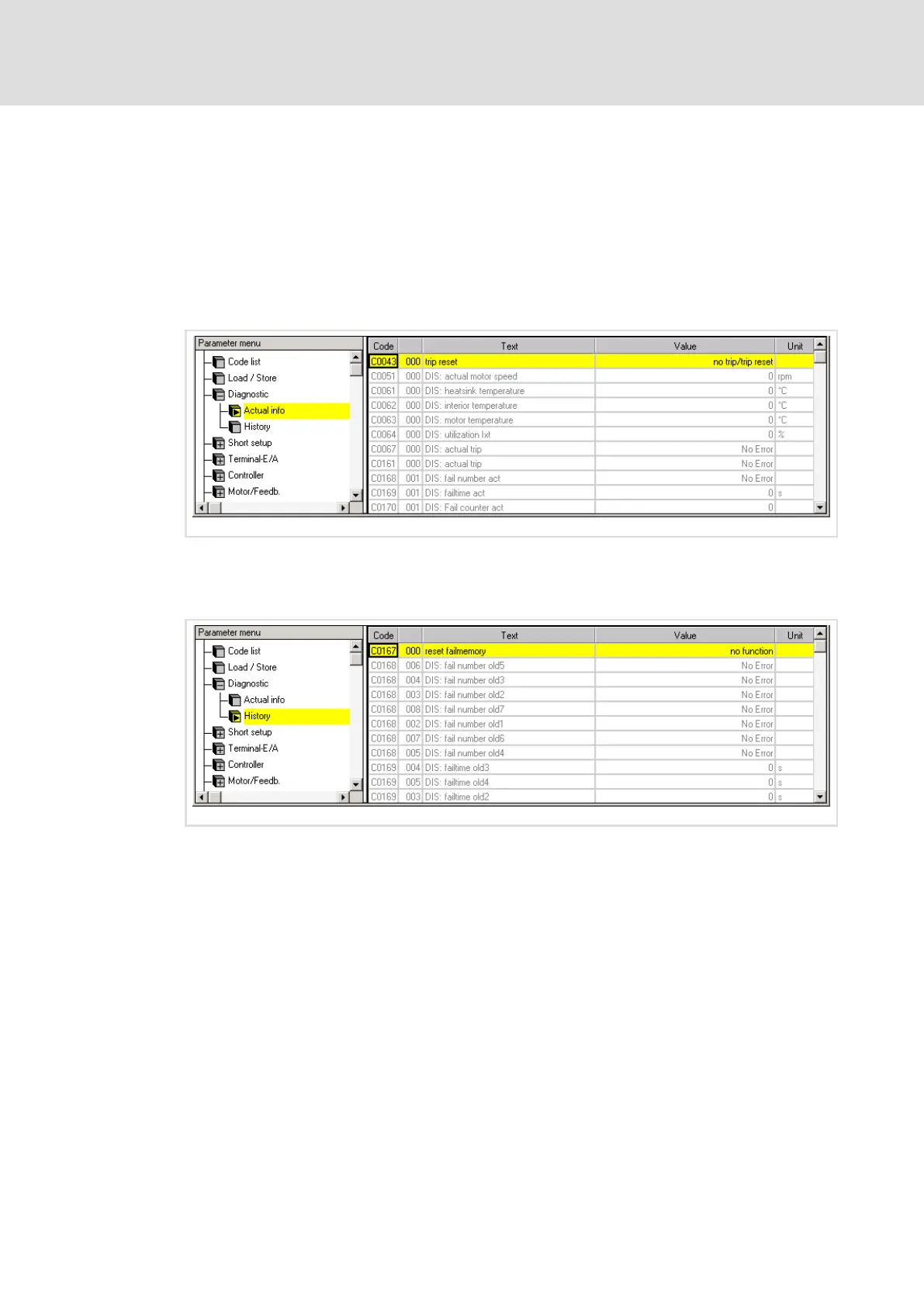

ECSXA346
Fig. 10−1 GDC view: Diagnostics − Device − current status
The parameter menu of the GDC displays values regarding the fault history under
Diagnostics History:
ECSXA348
Fig. 10−2 GDC view: Fault diagnostics
