6.15 Operation with motors from other manufacturers
6.15.1 Entering motor data manually
If you use motors of other manufacturers together with the ECS axis module, you have to
enter the motor data manually. The GDC includes the required codes in the parameter
menu under Motor/feedback systems  Motor adjustment.
ECSXA318

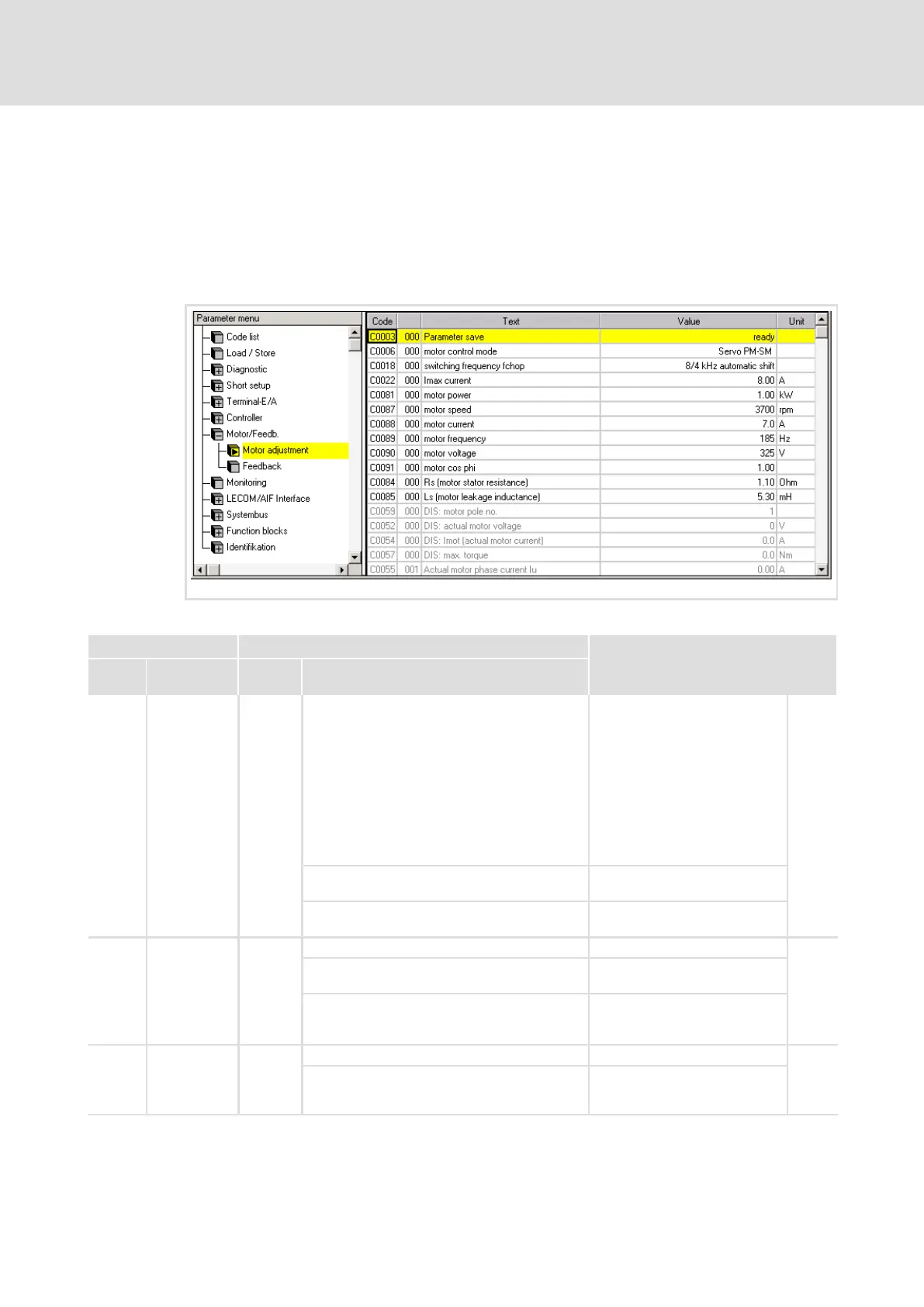

Fig. 6−19 GDC view: Manual setting of the motor data
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
[C0006] Op mode 1
Operating mode of the motor
control
l If the master pulse (via
MCTRL: C0911 = 0 or DfIn:
C0428 = 0) is used, the
voltage supply has to be
switched off and then on
again when the operating
mode is changed.
l Otherwise, the master pulses
will not be recognised.
1 Servo PM−SM Servo control of synchronous
motors
2 Servo ASM Servo control of asynchronous
motors
C0018 fchop 2
Switching frequency
1 4 kHz sin 4 kHz permanent PWM
frequency
2 8/4 kHz sin 8 kHz PWM frequency with
automatic derating to 4 kHz at
high load
C0022 Imax current à
I
max
limit
0 {0.01 A} à Device−dependent list
Max. current can be gathered
from the technical data.
