6.12 Setpoint selection
The operating mode selected in C3005 enables a pre−assignment from different setpoint
sources:
Code Value
1)
Setpoint source Setpoints
C3005
1000
4000
Analog input l Fixed speed
l Analog setpoints
(e. g. master voltage or master current)
1003
4003
AIF module l Fixed speed
l Fieldbus setpoints
1005
4005
MotionBus (CAN) l Fixed speed
l CAN setpoints
1)
100x = speed control ("Speed")
400x = torque control ("Torque")
Example: selection of analog setpoints
For selecting analog setpoints you can for instance configure the analog input signal in
GDC in the parameter menu under Function blocks AIn1:
ECSXA307

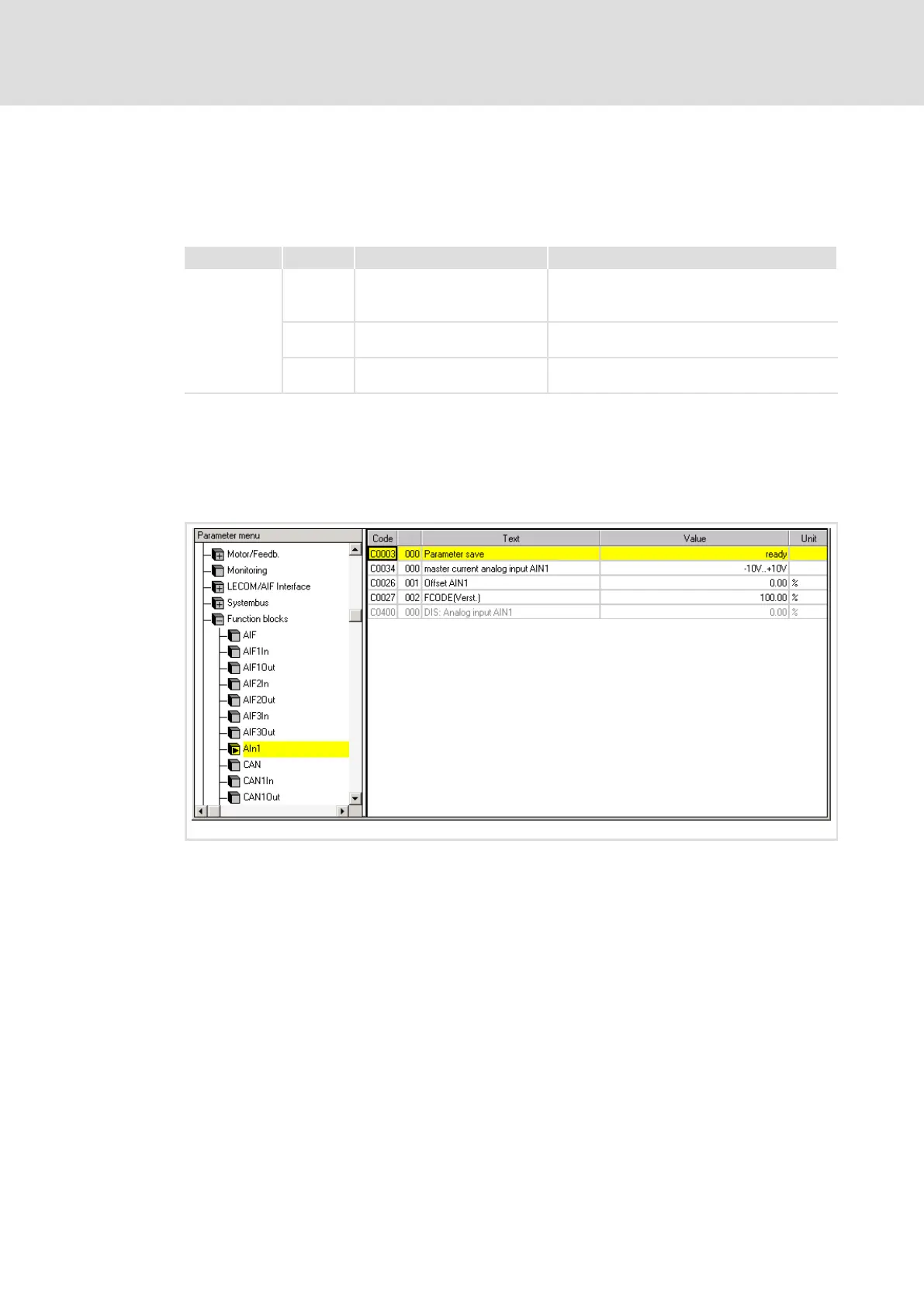

Fig. 6−18 GDC view: Codes of the function block AIn1
