Function library
DigIn (freely assignable digital inputs)
12

307
EDBCSXS064 EN 4.0
12.20 DigIn (freely assignable digital inputs)
Function
This function block reads and conditions the signals on X6/DI1 ... DI4.
ƒ The configuration of the terminal polarity for the inputs X6/DI1 ... DI4 is effected via
C0114.
ƒ The "safe torque off" safety function ( 71) is controlled via X6/SI1 and X6/SI2.
C0443
X6 DigIn
DI3
SI1
SI2
DI1
DI4
DI2
safe standstill
1
0
C0114/1...4
1
X6
C0443
132
133
134
135
131
136
mP
mP + Imp
DigIn-In1
DigIn-In2
DigIn-safe_standstill
DigIn-In4
DigIn-In3
DigIn-CInh
ECSXA241

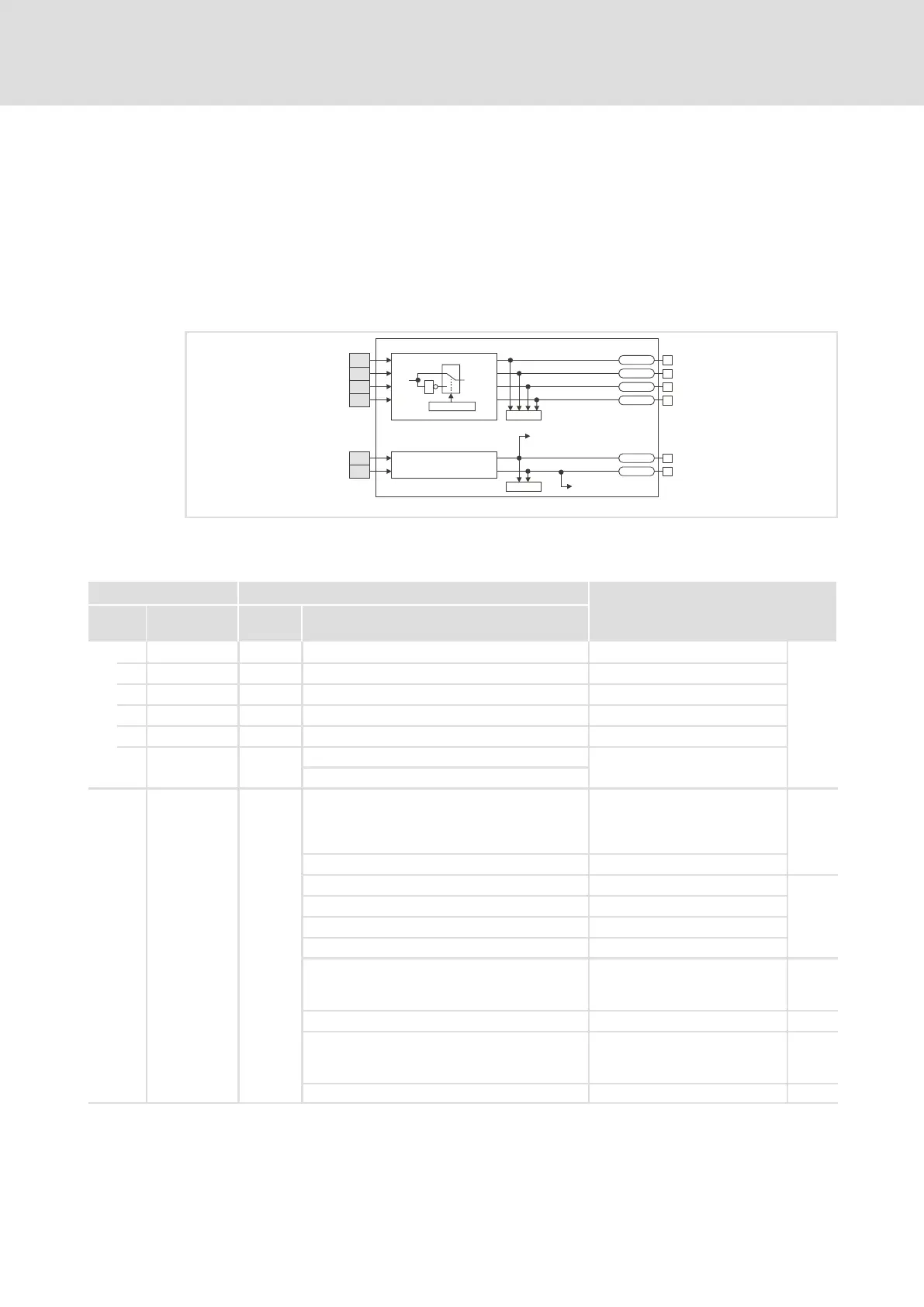

Fig. 12−21 DigIn function block
Codes
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C0114 Polarity of the digital inputs
 307
 121
1 DIGIN pol 0 HIGH level active X6/DI1 (DIGIN_bIn1_b)
2 DIGIN pol 0 HIGH level active X6/DI2 (DIGIN_bIn2_b)
3 DIGIN pol 0 HIGH level active X6/DI3 (DIGIN_bIn3_b)
4 DIGIN pol 0 HIGH level active X6/DI4 (DIGIN_bIn4_b)
0 HIGH level active
1 LOW level active
C0443 DIS: DIGIN
Signal status of the digital inputs
on X6 after consideration of the
polarity set under C0114.
Only display
 307
0 {1} 255
Bit 0 DIGIN1 X6/DI1
 121
Bit 1 DIGIN2 X6/DI2
Bit 2 DIGIN3 X6/DI3
Bit 3 DIGIN4 X6/DI4
Bit 4 DIGIN_safe_standstill X6/SI2
0: Pulse inhibit is active
1: Pulse inhibit is inactive
 71
Bit 5 Free
Bit 6 DIGIN_CInh X6/SI1
0: Controller is inhibited (CINH)
1: Controller is enabled
 71
Bit 7 Free
