Technical Information
17
CVA 4062/CVA 4066/CVA 4068 Coffee Systems
3.2 CVA 4066

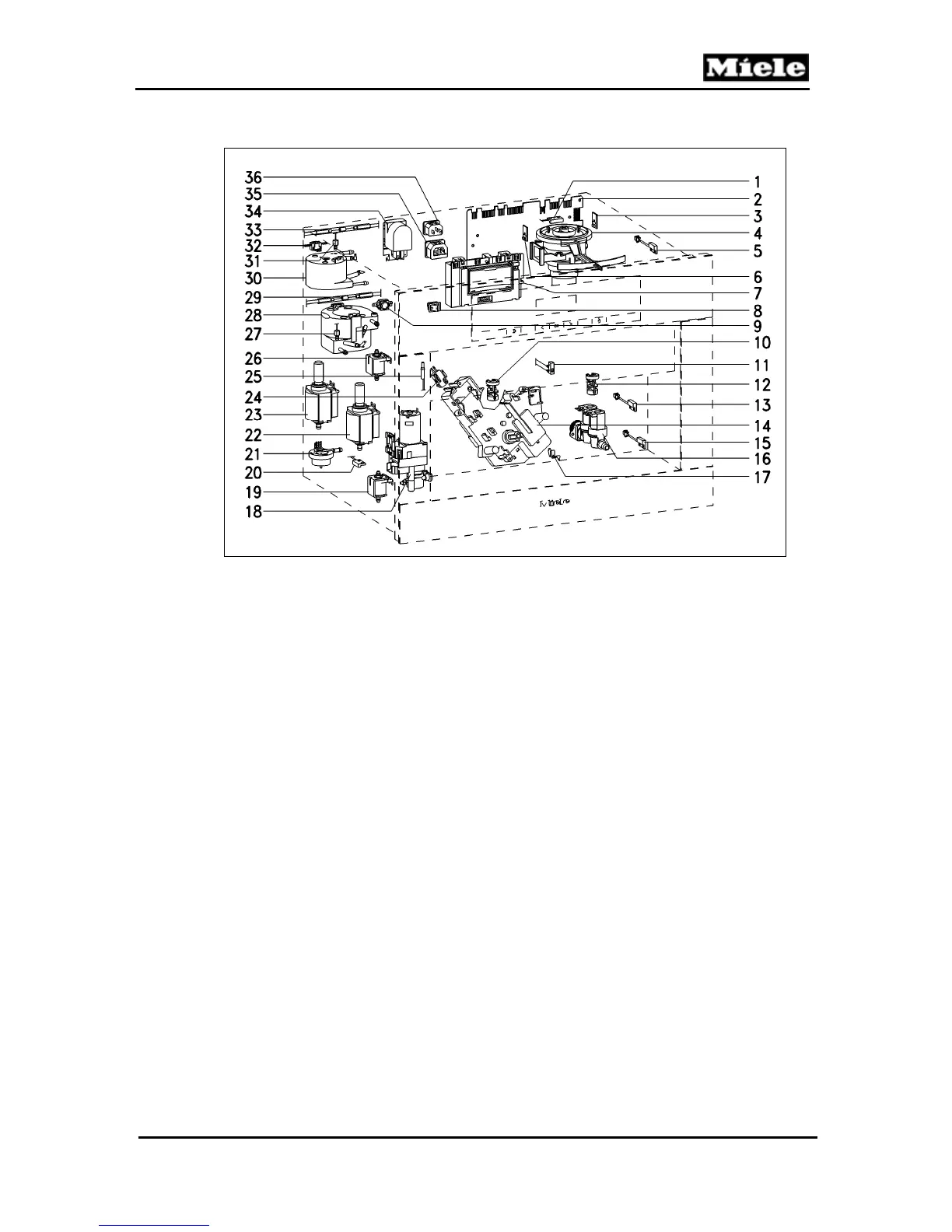

Figure D-4: CVA 4066 Component Layout
1
Switch, ground coffee funnel
19
Hot-water solenoid
2
Power electronic (EPL)
20
Monitoring switch, grounds container
3
Bean container sensor
21
Flow meter
4
Grinder with temperature limiter
22
Steam pump with temperature limiter
5
Door contact switch
23
Coffee/hot water pump with temperature
limiter
6
Bean container sensor
24
Step contact switch, grind amount
7
Control/display electronic (EPWZ)
25
Milk container present/level switch
8
On/Off switch
26
Rinsing solenoid
9
Coffee/hot water heater temperature limiter
27
Coffee/hot water NTC
10
Dispensing area light
28
Coffee/hot water heater
11
Dispensing monitoring switch
29
Coffee/hot water heater fuse
12
Dispensing area light
30
Steam heater
13
Float switch, water container, maximum level
31
Steam heater NTC
14
Brew unit drive with 2 brew unit position
switches and 1 brew unit presence switch
32
Steam heater temperature limiter
15
Float switch, water container, minimum level
33
Steam heater fuse
16
Water supply valves
34
Interference suppression filter
17
Drip tray level switch and drip tray sensor
(3 contact springs)
35
Not used
18 Ceramic valve with valve step contact switch
and valve position switch
36
Main power socket
