Technical Information
58
CVA 4062/CVA 4066/CV
A 4068 Coffee Sy
stems
2 Function
2.1 Water
Paths
2.1.1 Overview

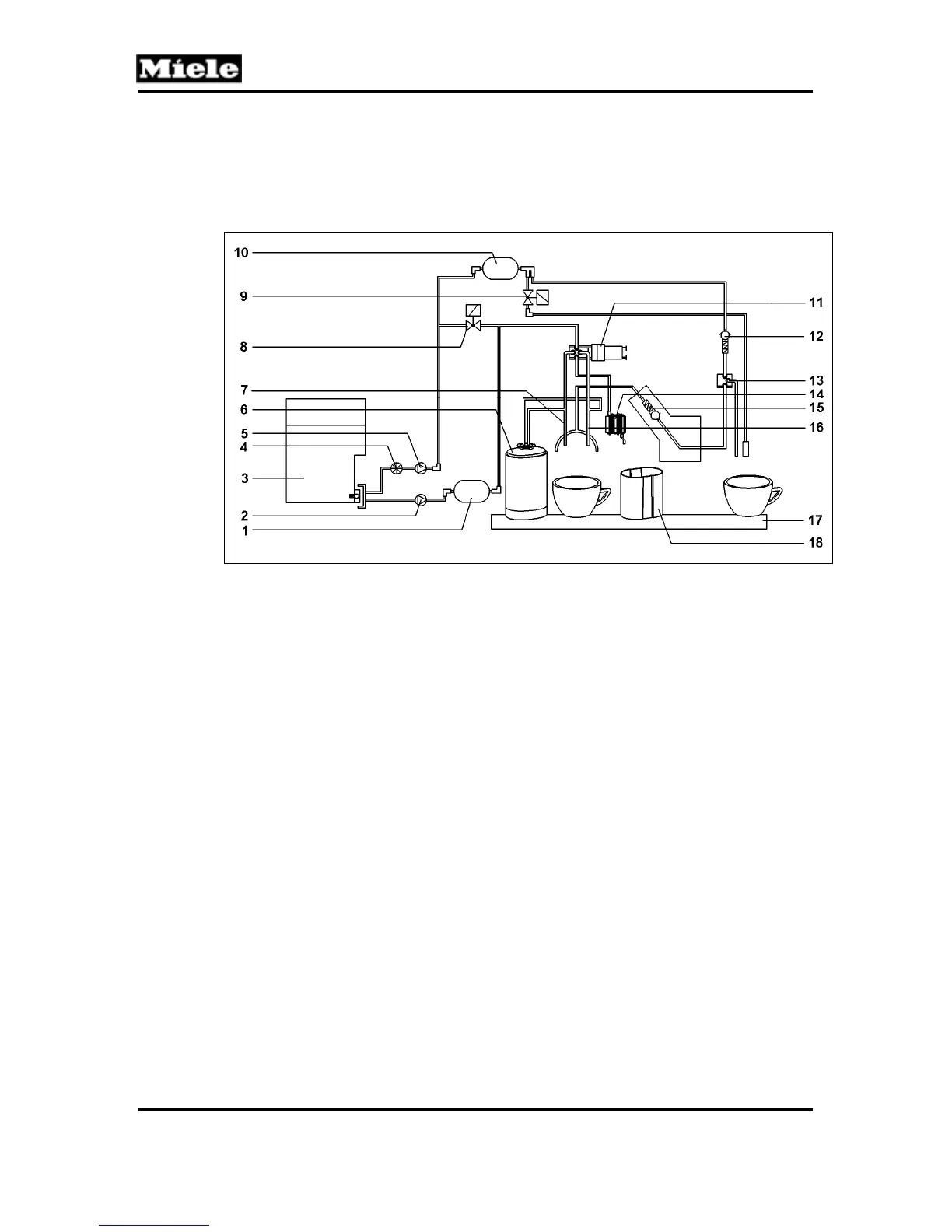

Figure 051-1:
CVA Water Path - Overv
iew
1
Steam heater
10
Coffee/hot-water heater
2
Steam pump
11
Ceramic valve
3
Water tank
12
Pressure relief valve
4
Flow
meter
13
Drain valve
5
Coffee/hot-water pump
14
Decompression vessel
6
Milk container
15
Brew unit
7
Hot-milk dispenser
16
Milk froth dispenser
8
Rinsing solenoid
17
Drip tray
9
Hot-water solenoid
18
Large cleaning container
57
59
Table of Contents
Default Chapter
2
Table of Contents
2
Warning and Safety Instructions
8
General
8
Risk of Burning or Scalding
8
Touch Current Measurement
9
Plumbing Information
9
Figure A-1: Compression Fitting
9
Before the First Use
10
Cleaning in the Dishwasher
10
B Modification History
10
Technical Data
11
Table C-1: Technical Data
13
D Component Layouts
14
Front View
14
Figure D-1: Front View of Appliance
14
Interior View
15
Figure D-2: Interior View of Appliance
15
Electrical Components
16
Cva 4062, Cva 4068
16
Figure D-3: CVA 4062, CVA 4068 Component Layout
16
Cva 4066
17
Figure D-4: CVA 4066 Component Layout
17
Housing
18
Service
19
Removing the Appliance from a Cabinet
19
Figure 010-1: Removing the Appliance from a Cabinet
19
Installation
20
Installation Procedure
20
Figure 010-2: CVA 4066 Plumbing
20
Figure 010-3: CVA Feet Adjustment
21
Figure 010-4: CVA Mounting Locations
21
Adjusting the Door Hinges
22
Figure 010-5: Door Hinge Adjustment
22
Exterior Side Panels
23
Door Inner Panel
24
Coffee/Hot-Water Dispenser
25
Function
26
Adjusting the Dispenser Height
26
Fault Repair
26
Coffee or Espresso too Cold
26
Milk Froth Unsatisfactory or Sputtering
26
Figure 021-1: Dispenser Height Adjustment
26
Door Outer Panel, Control/Display Electronic
28
Function
29
Optical Interface (MDU)
29
Control/Display Electronic EPWZ (N5)
29
Touch Controls
29
Fault Repair
29
Diagnostic Support Cannot Establish a Connection
29
Figure 025-1: Optical Interface for Diagnostic Support and Program Updating
29
Remotevision Infocontrol: Incorrect Language Set
30
Remotevision Infocontrol: Time of Day Setting Varies
30
Remotevision Infocontrol: Buzzer Inoperative
30
Remotevision Infocontrol: Data Transfer Interference
30
Remotevision Infocontrol: Mobile Receiver Display Faulty
30
Machine Runs Automatically and Chirps When the Door Is Opened
30
Service
30
Control/Display Electronic EPWZ (N5) Removal
30
Figure 025-2: Right and Central Covers
31
Figure 025-3: Hose and Wire Connections
31
Figure 025-4: Main Dispenser Retaining Screws
32
Figure 025-5: Control/Display Electronic Cover and Power Electronic Connection
32
Dispenser Present Switch (S87/6) Removal
33
Dispensing Area Light (1H3, 2H3) Removal
33
Door Removal
33
Figure 025-6: Control/Display Electronic Connections
33
Figure 025-7: Door Hinge Screws
34
Drive, Brew Unit
35
Function
36
Brew Unit Control
36
Microswitch Locations
36
Electronic Grind Amount Compensation
36
Figure 030-1: Brew Unit Microswitches
36
Figure 030-2: Brew Unit Switching Cam, Ground Quantity Compensation Microswitch
37
Figure 030-3: Measurable Volume Areas 1, 2 and 3
37
Table 030-1: Switch Cam Settings
37
Brew Unit Drive, Home Position
38
Figure 030-4: Selectable Volume Areas 1, 2 and 3
38
Figure 030-5: Home Position, Rear View
38
Figure 030-6: Home Position, Front View
38
Brew Unit Drive, Compressing Position (Brew Position)
39
Brew Unit Drive, Drain Position
39
Figure 030-7: Compressing Position, Rear View
39
Figure 030-8: Compressing Position, Front View
39
Fault Repair
40
Coffee Grounds Next to the Brew Unit
40
Figure 030-9: Drain Position, Rear View
40
Figure 030-10: Drain Position, Front View
40
Service
41
Brew Unit Drive (M26) Removal
41
Figure 030-11: Service Door Screws
41
Figure 030-12: Service Door Open
42
Figure 030-13: Brew Unit Removal
42
Removing the Grind Amount Compensation Microswitch (S51/4)
43
Removing the Brew Unit Position Microswitches (S60/1, S60/2)
43
Figure 030-14: Brew Unit Drive Retaining Screws
43
Grinder
45
Function
46
Adjusting the Grinder Setting
46
Filling Ground Coffee
46
Service
46
Grinder (M25) Removal
46
Figure 040-1: Grinder Adjustment
46
Figure 040-2: Ground Coffee Funnel and Lid
46
Figure 040-3: Service Door Screws
47
Figure 040-4: Service Door Open
47
Figure 040-5: Bean Container Guide Retaining Screws
48
Figure 040-6: Adjustment Lever Handle
48
Figure 040-7: Grinder Retaining Screws
49
Flow-Thru Heaters
50
Function
51
Steam System
51
Service
51
Removing the Coffee/Hot Water Heater (2R1)
51
Figure 050-1: Service Door Screws
51
Figure 050-2: Service Door Open, Showing Heaters
52
Figure 050-3: Coffee/Hot Water Heater
52
Removing the Temperature Limiter, Fuse, Temperature Sensor from the Coffee/Hot-Water Heater
53
Figure 050-4: Temperature-Regulating Components on Coffee/Hot Water Heater
53
Figure 050-5: Temperature-Regulating Components on Coffee/Hot Water Heater
53
Removing the Steam Heater (1R1)
54
Figure 050-6: Service Door Screws
54
Figure 050-7: Service Door Open, Showing Heaters
54
Figure 050-8: Steam Heater and Bracket
55
Figure 050-9: Temperature-Regulating Components on Steam Heater
55
Removing the Temperature Limiter, Temperature Sensor, Fuse from the Steam Heater
56
Figure 050-10: Temperature-Regulating Components on Steam Heater
56
Pumps, Solenoids, Flow Meters
57
Function
58
Water Paths
58
Overview
58
Figure 051-1: CVA Water Path - Overview
58
Water Path - Coffee
59
Water Path - Hot Water
59
Figure 051-2: Coffee Water Path
59
Water Path - Hot Milk
60
Figure 051-3: Hot-Water Path
60
Figure 051-4: Hot-Milk Path
60
Water Path - Milk Froth
61
Figure 051-5: Milk Froth Path
61
Service
62
Hot-Water Solenoid (Y61) Removal
62
Figure 051-6: Support Plate Retaining Screws
62
Figure 051-7: Rinsing and Hot-Water Solenoids
63
Figure 051-8: Hot-Water Solenoid
63
Rinsing Solenoid (Y62) Removal
64
Figure 051-9: Support Plate Retaining Screws
64
Figure 051-10: Rinsing and Hot-Water Solenoids
65
Figure 051-11: Rinsing Solenoid
65
Coffee/Hot Water Pump (2M7) Removal
66
Figure 051-12: Service Door Screws
66
Figure 051-13: Service Door Open
66
Figure 051-14: Coffee/Hot Water and Steam Pumps
67
Steam Pump (1M7) Removal
68
Figure 051-15: Coffee/Hot Water Pump
68
Flow Meter (B3/4) Removal
69
Figure 051-16: Steam Pump
69
Figure 051-17: Flow Meter
70
Figure 051-18: Flow Meter (1) and Plastic Support (2)
70
Decompression Vessel Removal
71
Ceramic Valve Removal
71
Figure 051-19: Decompression Vessel and Ceramic Valve
71
Figure 051-20: Ceramic Valve, Removed from Machine
72
Containers, Drip Tray, Accessories
73
