Technical Information
47
CVA 4062/CVA 4066/CV
A 4068 Coffee Sy
stems

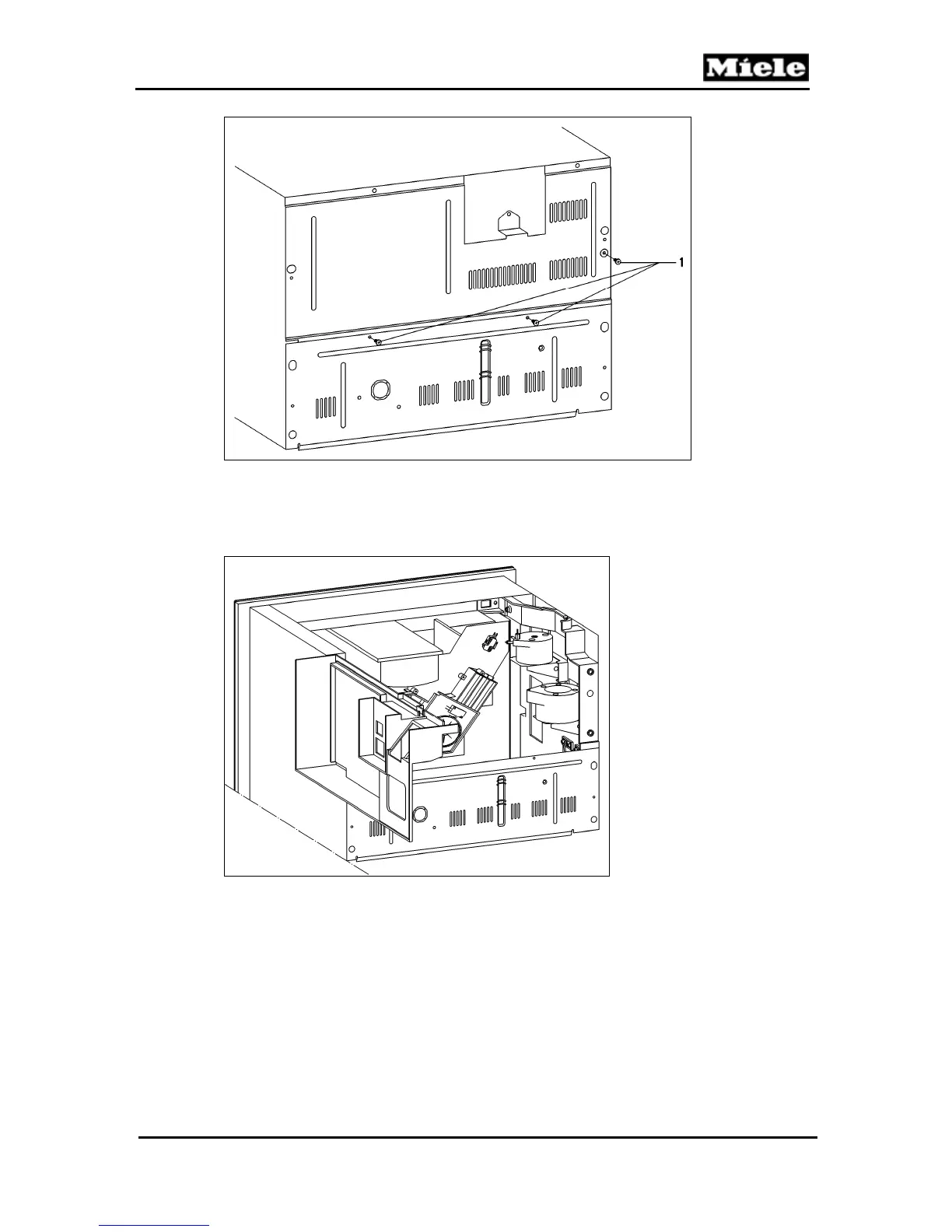

Figure 040-3:
Service Door Screws
5.
Release the wiring harness (black cable) connecting the control and power
electronics from its guide.
6.
Open the service door. See Figure 040-4.
Figure 040-4:
Service Door Open
7.
Open the appliance door.
8.
Remove the bean container.
9.
Remove the five T10 screws securing the bean container guide; see Figure 040-5,
Item 1.
46
48
